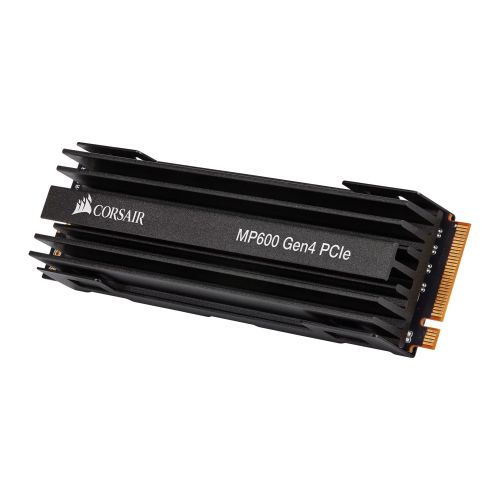

Corsair Force MP600 Gen4 PCIe x4 NVMe M.2 SSD - 2TB

The Corsair Force MP600 delivers extreme storage performance with Gen4 PCIe technology, achieving sequential read speeds up to 4,950MB/s and write speeds up to 4,250MB/s. This 2TB M.2 NVMe SSD is engineered for high-performance computing, gaming, and content creation workloads that demand maximum throughput.

PCIe 4.0 Performance

Built on PCIe 4.0 (Gen4) technology, the MP600 provides up to 10 times the sequential performance of SATA SSDs and up to 50 times the speed of traditional HDDs. With random read/write performance reaching 600K/680K IOPS, this drive handles intensive multitasking and large file transfers with ease. Full backwards compatibility with PCIe 3.0 platforms ensures broad system support.

Thermal Management

The MP600 features a high surface area aluminum heatsink that maintains optimal performance during sustained workloads. This thermal solution prevents throttling under heavy load, ensuring consistent speeds during extended gaming sessions or large data transfers.

High-Density 3D TLC NAND

Equipped with 3D TLC NAND memory, the MP600 balances performance, endurance, and value. With an endurance rating of 3,600TB Written (TBW) and an MTBF of 1,700,000 hours, this drive is built for long-term reliability. The Phison PS5016-E16 controller optimizes data management and wear leveling.

M.2 2280 Form Factor

The compact M.2 2280 form factor installs directly into compatible motherboards, eliminating cable clutter and freeing up drive bays. Measuring 80 x 23 x 15mm and weighing just 34 grams, the MP600 fits seamlessly into modern builds including AMD X570, B550, and Intel Z590 platforms.

AMD Ryzen Optimized

As a launch partner for AMD's 3rd generation Ryzen processors, Corsair engineered the MP600 to maximize PCIe 4.0 capabilities on Ryzen-based systems. The drive also performs excellently with Intel's 11th gen and newer processors supporting PCIe 4.0.

Reliability & Warranty

Backed by a comprehensive 5-year warranty, the MP600 provides long-term reliability and industry-leading customer support. Operating temperatures range from 0°C to +70°C, with shock resistance rated at 1,500G.

Description

Specification

• Series: Corsair Force Series MP600
• #Hide#Capacity Range: 1920 - 2000 GB
• Capacity: 2 TB
• Form Factor: M.2 2280
• #Hide#Interface Type: PCI Express
• Interface: PCIe 4.0 x4
• Controller: Phison PS5016-E16
• Read: "Up to 4,250MB/s"
• Write: "Up to 4,950MB/s
  "
• Max Random 4K R/W: Read: Up to 600k IOPS
  Write: Up to 680k IOPS
• Power Consumption: Active: 6.5W Average
  Inactive: 1.1W
• Weight/Dimensions: 0.034 kg
  80 x 23 x 15mm
• Operating Temperatures: 0C to +70C
• Storage Temperatures: -40C to +85C
• Shock Resistance: "1,500 G"
• Vibration Operating: "20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G"
• Vibration Non-operating: "20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G"
• MTBF: " 1,700,000 Hours"
• Total Bytes Written (TBW): 3600
• Additional Features: See Overview
• Package Contents: FORCE Series MP600 Gen4 M.2 SSD
• Package Type: Retail
• Package Weight: 0.0720 kg
• Warranty: 5 Years or if the drive exceeds Total Bytes Written (see above)
