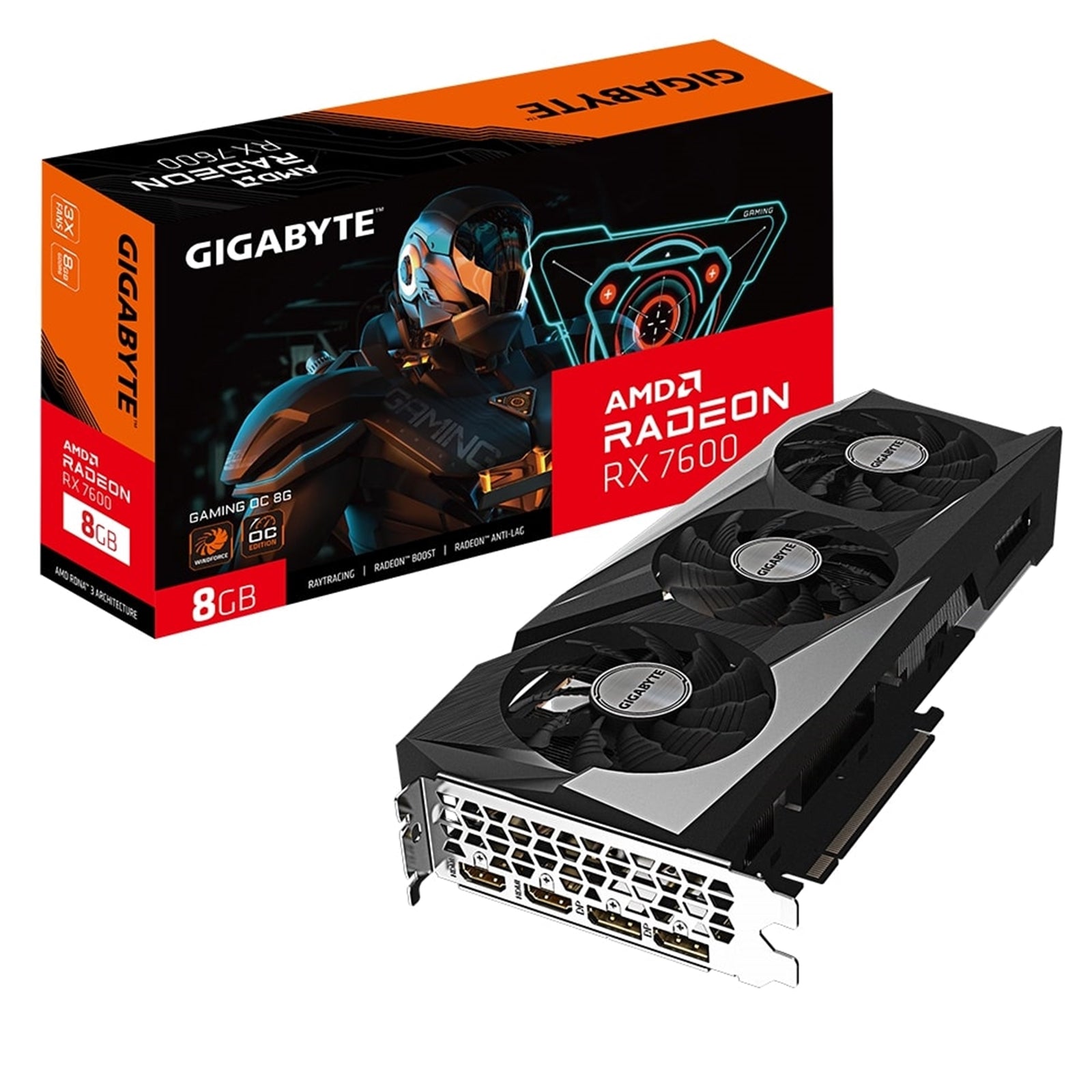

Gigabyte Radeon RX 7600 GAMING OC 8GB Graphics Card

The Gigabyte Radeon RX 7600 GAMING OC 8G delivers enhanced gaming performance with a factory-overclocked boost clock of 2755 MHz and game clock of 2355 MHz, exceeding reference specifications. Built on AMD's RDNA 3 architecture with 2048 stream processors and 8GB GDDR6 memory across a 128-bit interface, this graphics card handles modern gaming at 1080p and 1440p resolutions.

WINDFORCE Triple-Fan Cooling System

The WINDFORCE cooling solution features three 80mm unique blade fans with alternate spinning technology that reduces turbulence between adjacent fans while increasing airflow pressure. Five composite copper heat pipes make direct contact with the GPU for efficient heat transfer, while the extended heatsink design allows air to pass through for improved thermal dissipation. The heat pipes also cover VRAM through large metal plate contact points.

The 3D Active Fan technology provides semi-passive cooling, keeping fans off during low-load scenarios and low-power gaming sessions for silent operation. Graphene nano lubricant extends the sleeve bearing fan lifespan by 2.1 times, approaching double ball bearing longevity while maintaining quieter operation.

Ultra Durable Components

This graphics card features Ultra Durable certified components including highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs. The over-temperature protection design ensures superior performance and extended system life. The fully automated production process delivers smooth PCB surfaces without sharp solder protrusions, making installation safer.

RGB Fusion and Premium Build

RGB Fusion lighting allows customization of the card's illumination to match your system aesthetic. A protective metal backplate adds structural rigidity while enhancing the overall appearance. The ATX form factor measures 282mm length, 115mm width, and 50mm height.

Display Connectivity

Equipped with two DisplayPort 1.4a outputs and two HDMI 2.1a ports, the RX 7600 GAMING OC supports up to four displays simultaneously with a maximum digital resolution of 7680 x 4320. DirectX 12 Ultimate and OpenGL 4.6 support ensure compatibility with the latest gaming technologies.

Technical Specifications

Graphics Processing
Radeon RX 7600

Core Clock
Boost Clock : up to 2755 MHz (Reference card: 2655 MHz)
Game Clock : up to 2355 MHz (Reference card: 2250 MHz)

Stream Processors
2048

Memory Clock
18 Gbps

Memory Size
8 GB

Memory Type
GDDR6

Memory Bus
128 bit

Card Bus
PCI-E 4.0

Digital max resolution
7680 x 4320

Multi-view
4

Card Size
L=282 W=115 H=50 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
550W

Power Connectors
8 pin*1

Output
DisplayPort 1.4a x 2
HDMI 2.1a x 2

Accessories
Quick guide

• Chipset Manufacturer: AMD
• Chipset Series: RX
• Chipset: RX 7600
• Form Factor: ATX
• Memory: 8GB
• Fans: 3
• RGB: Yes

Requires a 550W power supply and single 8-pin power connector. PCI-E 4.0 interface ensures compatibility with modern motherboards.
