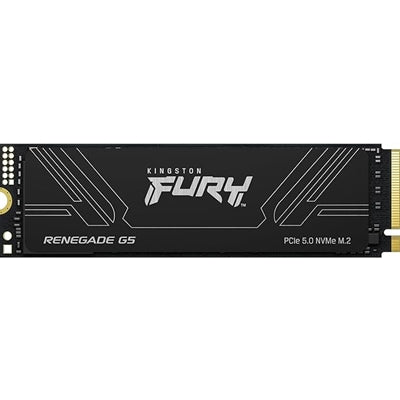

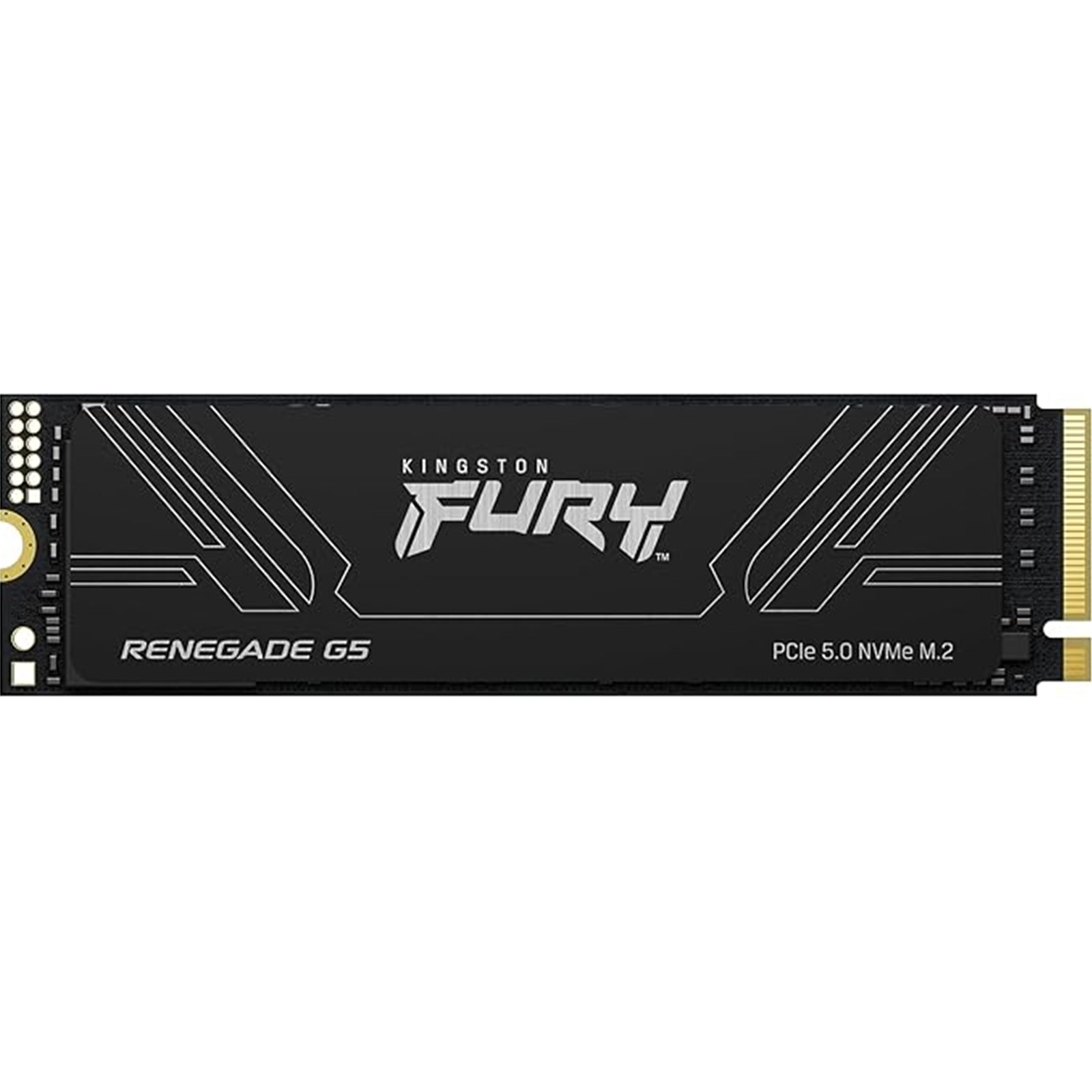

Kingston FURY Renegade PCIe 5.0 NVMe M.2 SSD - Extreme Gen5 Performance

The Kingston FURY Renegade G5 PCIe 5.0 NVMe M.2 SSD (SFYR2S/2T0) delivers cutting-edge Gen5 performance for hardware enthusiasts, gamers, and power users demanding maximum storage speed. With sequential read speeds reaching 14,700MB/s and write speeds up to 14,000MB/s, this 2TB NVMe SSD dramatically reduces game load times, accelerates application launches, and improves system responsiveness.

Extreme PCIe Gen 5.0 x4 Performance

Built on the latest PCIe 5.0 x4 NVMe interface, the FURY Renegade achieves read/write speeds nearly double that of PCIe 4.0 drives. The SM2508 controller paired with 3D TLC NAND and DRAM cache delivers exceptional random 4K performance at 2,200,000 IOPS for both read and write operations. DirectStorage support ensures compatibility with next-generation gaming technologies.

Advanced Thermal Management Design

The M.2 2280 form factor features an advanced thermal design that maintains optimal operating temperatures during intensive workloads. Operating safely between 0°C to 70°C, the drive manages the higher power demands of Gen5 speeds (7.0W maximum) while maintaining reliability and performance consistency.

Built for Endurance and Reliability

With 2.0PB (2,000TB) total bytes written endurance rating and an MTBF of 2,000,000 hours, this drive is engineered for long-term reliability. The compact 80mm x 22mm x 2.3mm dimensions and 7.3g weight ensure seamless integration into desktops and compatible laptops. Vibration resistance up to 2.17G Peak (operating) and 20G Peak (non-operating) provides durability across various environments.

Features

Extreme PCIe Gen5 speeds
Advanced thermal design
Seamless integration
Maximized capacity

Specifications

Form Factor
M.2 2280

Interface
PCIe 5.0 x4 NVMe

Capacity
2048GB

Controller
SM2508

NAND
3D TLC

DRAM Cache
Yes

DirectStorage Supported
Yes

Sequential Read/Write2
2048GB – up to 14,700/14,000MB/s

Random 4K Read/Write2
2048GB - up to 2,200,000/2,200,000 IOPS


Endurance (Total bytes written)
2048GB – 2.0PB

Power Consumption
2048GB – 0.27W Avg / 7.0W @ 14.7G / 7.0W (MAX)


Storage Temperature
-40°C~85°C

Operating Temperature
0°C~70°C

Dimensions
80mm x 22mm x 2.3mm

Weight
1024GB – 7.3g

Vibration Operating
2.17G Peak (7-800Hz)

Vibration Non-operating
20G Peak (20-1000Hz)

MTBF
2,000,000 hours

Warranty/Support
Limited 5-year warranty with free technical support

• Type Of Drive: M.2
• Connection: M.2 NVMe PCIe 5.0
• Capacity: 2TB
• Packaging: Retail
