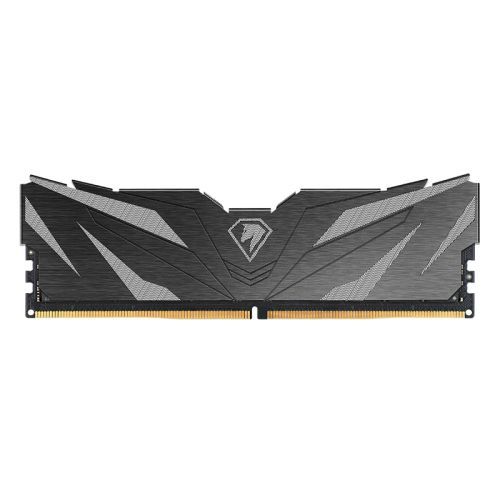

Netac Shadow II DDR5 16GB 6000MHz Desktop Memory

The Netac Shadow II DDR5 memory module delivers high-speed performance for modern desktop systems. This 16GB DDR5 DIMM operates at 6000MHz with CL38 timings (38-48-48-96), providing the bandwidth needed for gaming, content creation, and demanding applications.

DDR5 Technology with Advanced Features

Built on DDR5 SDRAM technology, this 288-pin unbuffered DIMM module incorporates PMIC (Power Management Integrated Circuit) for independent power management, improving energy efficiency compared to previous generation memory. The module includes on-die ECC for enhanced data integrity and supports Intel XMP 3.0 profiles for simplified overclocking.

Operating at 1.35V, the module features PC5-48000 compliance and supports advanced DDR5 capabilities including Same Bank Refresh, Per DRAM Addressability (PDA), Decision Feedback Equalization (DFE) for DQ, and CRC (Cyclic Redundancy Check) for improved reliability.

Thermal Management and Design

The Shadow II features a specially designed aluminum alloy heat spreader in black finish, providing effective thermal dissipation during intensive workloads. The PCB measures 1.23 inches (31.25mm) in height, maintaining compatibility with most desktop systems and CPU coolers. Gold contact fingers ensure reliable connectivity and longevity.

Technical Specifications

• Capacity: 16GB single module
• Speed: 6000MHz (PC5-48000)
• Latency: CL38 (38-48-48-96)
• Voltage: 1.35V
• Interface: 288-pin DIMM
• Profile Support: Intel XMP 3.0
• ECC: On-die ECC
• Power Management: PMIC chip

Advanced DDR5 Features

This module supports BL16, BC8 OTF, BL32, and BL32 OTF burst lengths, along with Input Clock Frequency Change and Multi-Purpose Command (MPC) capabilities. The DQS Interval Oscillator and Connectivity Test (CT) / ZQ Calibration features ensure optimal signal integrity and performance stability.

The Netac Shadow II DDR5 memory is RoHS compliant and halogen-free, meeting environmental standards. Backed by a limited lifetime warranty, this memory module provides reliable performance for system upgrades and new builds requiring DDR5 compatibility.

Shadow II DDR5 Black

• Energy Saving with PMIC independent power management chips
• Specially designed aluminium alloy heat Spreader
• BL16, BC8 OTF, BL32, BL32 OTF supported
• Same Bank Refresh
• Input Clock Frequency Change
• Multi-Purpose Command (MPC)
• Per DRAM Addressability (PDA)
• Connectivity Test (CT) / ZQ Calibration
• DFE (Decision Feedback Equalization) for DQ
• DQS Interval Oscillator
• On-Die ECC
• CRC (Cyclic Redundancy Check)
• Package Output Driver Test Mode
• PCB: Height 1.23" (31.25mm)
• RoHS Compliant and Halogen-Free
• Limited Lifetime Warranty

Description

Specification

• Series: Netac Shadow II
• DDR Type: DDR5
• Size: 1 x 16GB
• #Hide#Individual Module Size: 16GB
• #Hide#Total Capacity: 16GB Total
• Speed: 6000 MHz
• Compliance: PC5-48000
• Pins: 288-pin
• CAS Latency: CL38
• Intel XMP Certified: Yes (Intel XMP)
• Data Integrity Check: On-die ECC
• Voltage: 1.35V
• Timings: 38-48-48-96
• Heatsink: Yes (Heatsink)
• Heatsink Details: Aluminium Alloy Heat Spreader
• #Hide#LED Lighting: No
• LED Lighting: -
• Additional Information: See Overview
• Package Type: Retail
• Package Weight: 0.0750 kg
• Warranty: Lifetime
