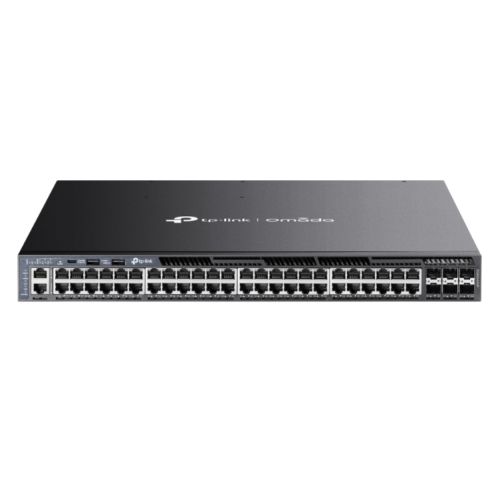

TP-Link Omada SG6654XHP 48-Port Gigabit Stackable L3 Managed PoE+ Switch

The TP-Link Omada SG6654XHP delivers enterprise-grade networking performance with 48 Gigabit PoE+ ports and 6x 10 Gbps SFP+ slots. Designed for convergence layer requirements, this L3 managed switch provides 216 Gbps switching capacity per unit and supports physical stacking of up to 4 units for 864 Gbps total capacity.

High-Performance PoE+ Capabilities

With IEEE 802.3at/af compliance, the SG6654XHP delivers up to 1440W total PoE budget across 48 ports, supplying up to 30W per port. Deploy wireless access points, IP cameras, VoIP phones, and other powered devices without additional electrical infrastructure. The dual field-replaceable hot-swappable power supply modules ensure continuous operation for mission-critical networks.

Advanced Layer 3 Routing

This switch supports comprehensive L3 protocols including Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server/Relay, and PIM-DM multicast routing. Configure up to 256 IPv4 and 256 IPv6 interfaces for complex network architectures. ERPS provides rapid protection and recovery in ring topologies, while VRRP ensures high availability.

Enterprise Security Features

Protect your network with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X authentication, MAB, Port Security, DoS Defend, and SSH encryption. The switch supports 802.1ab LLDP/LLDP-MED, TACACS+ authentication, and comprehensive storm control for broadcast, multicast, and unknown unicast traffic.

Flexible Management Options

Integrate with Omada SDN for centralized cloud management, Zero-Touch Provisioning, and unified configuration across your network infrastructure. Alternatively, manage standalone via intuitive web GUI, industry-standard CLI, SNMP (v1/v2c/v3), or RMON. The switch features dual image and dual configuration support for seamless firmware upgrades.

Physical Stacking and High Availability

Stack up to 4 units with 20 Gbps per port full-duplex stack bandwidth. The physical stacking architecture provides built-in redundancy and simplified management. Combined with redundant power supplies and VRRP support, the SG6654XHP ensures maximum uptime for demanding business environments.

Technical Specifications

The switch supports 4K VLAN groups, 32K MAC address table, 160.7 Mpps packet forwarding rate, and 9KB jumbo frames. Additional features include Link Aggregation, Spanning Tree Protocol, port mirroring, RSPAN, 802.3ah Ethernet Link OAM, and sFlow for comprehensive network monitoring and traffic analysis.

Description

Specification

• Rackmountable: Yes
• Managed: Yes
• Number of Ports: 48
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• #Hide#Max SFP Transfer Rate: 10G SFP
• Interface(s): 48 x 10/100/1000 Mbps RJ45 Ports
  6 x 10G SFP+ Slots
  2 x USB 2.0 Ports
  1 x RJ45 Console Port
  1 x USB Type-C Console Port
  1 x RJ45 Management Port
• PoE Ports (RJ45): "Standard: 802.3at/af compliant
  PoE+ Ports: 48 Ports, up to 30 W per port
  PoE Power Budget: up to 1440 W*

  *The total PoE budget varies with the power supply modules."
• Bandwidth: Stack Bandwidth: 20 Gbps Per Port (Full-Duplex)
• Switching Capacity: 216 Gbps per Unit
• Power Supply: "Two Field-replaceable and Hot-swappable Power Supply Modules (100–240 VAC, 50/60 Hz)"
• Dimensions: 440 x 420 x 44 mm
• Mac Address Table: 32 K
• Packet Forwarding Rate: 160.7 Mpps
• Jumbo Frame: 9KB
• Additional Features: Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule

  ISP Features:
  802.3ah Ethernet Link OAM
  L2PT (Layer 2 Protocol Tunneling)
  Device Link Detect Protocol (DLDP)
  DDM
  sFlow
• Quality of Service: Class of Service
  Bandwidth Control
  Voice VLAN
  User-Defined OUI
  Smoother Performance
  Action for Flows
• Layer Features: "L3:
  IP Interfaces: IPv4: Max 256, IPv6: Max 256
  Static Routing
  Host Route Table
  RIP
  OSPF
  VRRP
  ECMP
  Static ARP
  Dynamic ARP
  Proxy ARP
  DHCP Server
  DHCP Relay

  L2 and L2+:
  Link Aggregation
  Spanning Tree Protocol
  Port-based and VLAN-based Loopback Detection
  802.3x Flow Control
  Supports 2,048 IGMP groups
  ERPS
  Mirroring
  RSPAN
  MAC Address Table
  PIM-DM (IPv4)
  Multicast"
• VLAN: "Max 4K VLAN Group (802.1q VLAN)
  802.1Q Tagged VLAN
  MAC VLAN Entries: 200
  Multicast VLAN
  Management VLAN
  VLAN VPN (QinQ): Max 256 entries
  GVRP
  Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
  VLAN VPN
  Voice VLAN
  Private VLAN"
• Security: Port Isolation
  CPU-Defend
  ARP Inspection (Dynamic ARP Inspection)
  DoS Defend
  IP-MAC-Port Binding
  IPv6-MAC
  DHCP Filter
  Static/Dynamic Port Security
  Broadcast/Multicast/Unknown-unicast Storm Control
  802.1X
  AAA (including TACACS+)
  Secure web management through HTTPS with SSLv3/TLS 1.2
  Secure Command Line Interface (CLI) management with SSHv2
  IP/Port/MAC-based access control
• Management: " Omada App, Centralized Management & Cloud Access :
  Requires Omada Hardware, Cloud-Based or Software Controller

  Zero-Touch Provisioning :
  Requires Omada Cloud-Based Controller

  "
• .: " Management Features :
  Web-based GUI
  CLI through console port, telnet
  SNMPv1/v2c/v3
  SDM Template
  DHCP/BOOTP Client
  802.1ab LLDP/LLDP-MED
  DHCP Auto Install
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  Password Recovery
  SNTP
  System Log
  EEE"
• Environment: Operating Temperature:0°C to 45 °C
  Storage Temperature: -40 °C to 70 °C
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: SG6654XHP Switch
  Power Cord
  RJ45 Console Cable
  Quick Installation Guide
  Rackmount Kit
  Rubber Feet
• Package Type: Retail
• Package Weight: 12.1000 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
