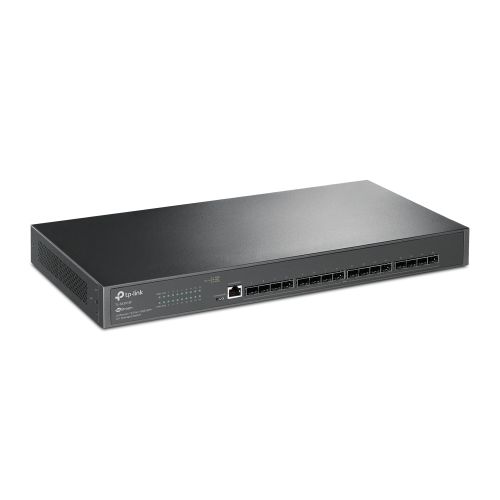

TP-Link SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch

The TP-Link TL-SX3016F delivers enterprise-grade 10 Gigabit networking with 16 full 10GE SFP+ fiber ports and 320 Gbps non-blocking switching capacity. Built for small to large business networks requiring high-speed, reliable connectivity for data-intensive applications and network aggregation.

Lightning-Fast 10G Fiber Connectivity

All 16 SFP+ slots operate at full 10 Gbps speeds, providing high-bandwidth aggregation for demanding network environments. The 320 Gbps switching capacity and 238.08 Mpps packet forwarding rate ensure zero bottlenecks during peak traffic periods. Supports 9 KB jumbo frames for improved throughput efficiency.

Dual Redundant Power Supply System

Two independent 100-240V AC power supplies provide automatic failover protection, ensuring continuous network operation even during power supply failure. This redundancy makes the SX3016F ideal for mission-critical infrastructure where downtime is not an option.

Comprehensive L2+ Network Features

The switch supports extensive Layer 2 and Layer 2+ functionality including Static Routing, 802.1Q VLAN (4K VLANs), Link Aggregation, STP/RSTP/MSTP spanning tree protocols, and advanced IGMP Snooping for intelligent multicast management. The 32K MAC address table accommodates large network deployments.

Enterprise Security Architecture

Multi-layered security features protect network resources through IP-MAC-Port-VID Binding, Port Security, 802.1X authentication with AAA/TACACS+ support, and comprehensive ACL (L2 to L4) filtering. DoS attack prevention, DHCP Snooping, and storm control defend against common network threats.

Advanced QoS Traffic Management

Eight priority queues with 802.1p CoS/DSCP classification ensure voice and video traffic receives priority treatment. Bandwidth control and queue scheduling optimize network performance for latency-sensitive applications.

Omada SDN Cloud Integration

Seamlessly integrates with TP-Link's Omada Software Defined Networking platform for centralized cloud management. Control switches, access points, and routers from a single interface with features including batch configuration, automatic device discovery, firmware upgrading, and Zero-Touch Provisioning (ZTP). Compatible with OC200/OC300 hardware controllers and software/cloud-based controllers.

Flexible Management Options

Choose between Omada SDN centralized management or standalone operation via web GUI, CLI (console/Telnet/SSH), SNMP v1/v2c/v3, or RMON. Dual image and dual configuration support ensures safe firmware upgrades. Additional features include LLDP/LLDP-MED, sFlow, CPU monitoring, and cable diagnostics.

ISP-Ready Features

Service provider features include QinQ VLAN stacking, L2PT, PPPoE ID insertion, IGMP authentication, 802.3ah OAM, and Device Link Detection Protocol (DLDP) for comprehensive Ethernet link monitoring.

IPv6 Ready

Full IPv6 support with Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, and IPv6 Neighbor Discovery prepares your network for next-generation protocols without hardware upgrades.

Specifications

• Rackmountable: Yes
• Managed: Yes
• Number of Ports: 16
• #Hide#Max SFP Transfer Rate: 10G SFP
• Interface(s): 16 x 10GE SFP+ Slots
  1 x RJ45 Console Port
  1 x Micro-USB Console Port
• PoE Ports (RJ45): -
• Switching Capacity: 320 Gbps
• Power Supply: 100-240 V AC~50/60 Hz

  Max Power Consumption: 32.74 W (220 V / 50 Hz)
• Dimensions: (WxDxH) 440 x 220 x 44 mm
• Mac Address Table: 32 K
• Packet Forwarding Rate: 238.08 Mpps
• Jumbo Frame: 9 KB
• Additional Features: "Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
  ZTP (Zero-Touch Provisioning)
  Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller"
• Quality of Service: 8 priority queues
  802.1p CoS/DSCP priority
  Queue scheduling
  Bandwidth Control
  Smoother Performance
  Action for Flows
• Layer Features: L2 and L2+ Features
  Link Aggregation
  Spanning Tree Protocol
  Loopback Detection
  Flow Control
  Mirroring

  L2 Multicast
  IGMP Snooping
  IGMP Authentication
  MLD Snooping
  MVR
  Multicast Filtering: 256 profiles and 16 entries per profile
• VLAN: "VLAN Group
  802.1Q Tagged VLAN
  MAC VLAN: 30 Entries
  Protocol VLAN: Protocol Template 16, Protocol VLAN 16
  Private VLAN
  GVRP
  VLAN VPN (QinQ)
  Voice VLAN"
• Access Control: Time-based ACL
  MAC ACL
  IP ACL
  Combined ACL
  Packet Content ACL
  IPv6 ACL
  Policy
  ACL apply to Port/VLAN
• Security: IP-MAC-Port Binding
  IPv6-MAC-Port Binding
  DoS Defend
  Static/Dynamic Port Security
  Broadcast/Multicast/Unicast Storm Control
  802.1X
  AAA (including TACACS+)
  Port Isolation
  Secure web management through HTTPS with SSLv3/TLS 1.2
  Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  IP/Port/MAC based access control
• Management: "Web-based GUI
  SNMP v1/v2c/v3
  SDM Template
  DHCP/BOOTP Client
  802.1ab LLDP/LLDP-MED
  DHCP AutoInstall
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  EEE
  Password Recovery
  SNTP
  System Log
  Command Line Interface (CLI) through the console port, telnet"
• Environment: "Operating Temperature: 0–45 °C (32–113 °F);
  Storage Temperature: -40–70 °C (-40–158 °F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing"
• Package Contents: TL-SX3016F Switch
  2 x Power Cords
  Quick Installation Guide
  Rackmount Kit
  Rubber Feet
• Package Type: Retail
• Package Weight: 4.0000 kg
• Warranty: Limited Lifetime
• #Hide#POE: No
