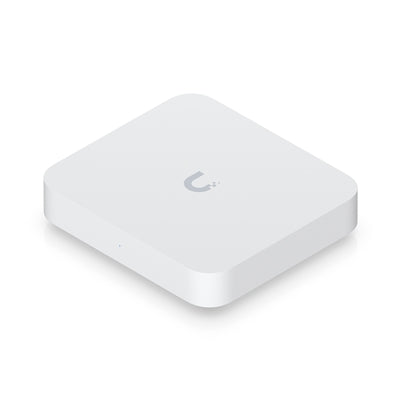

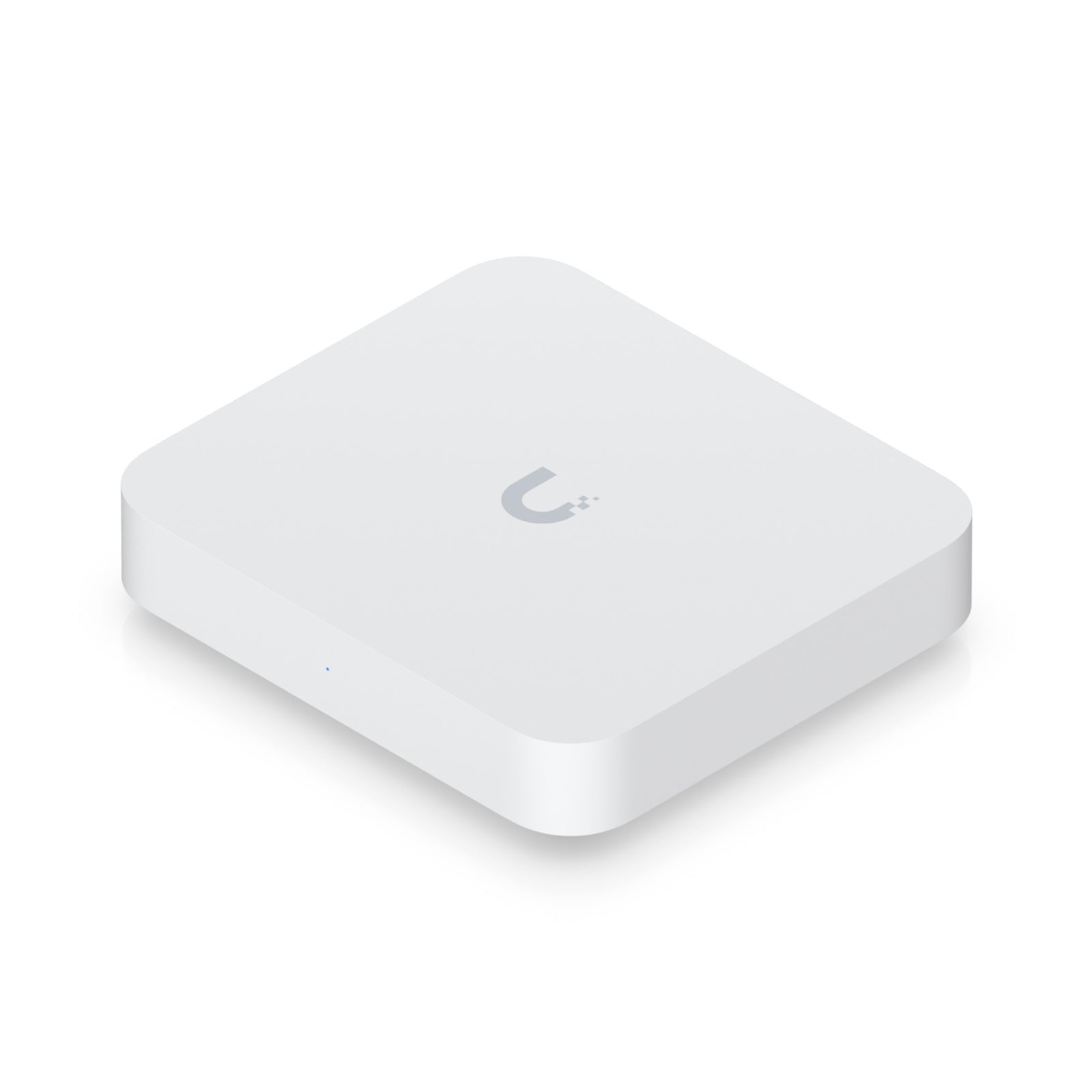

Ubiquiti UXG-MAX UniFi Gateway - High-Performance Multi-WAN Router

PLEASE NOTE THIS PRODUCT IS ONLY SUPPLIED WITH AN EU PLUG - NO UK PLUG SUPPLIED

The Ubiquiti UXG-MAX is a compact, high-performance gateway designed for small-to-medium business networks requiring full 2.5G multi-WAN capabilities. This advanced router delivers enterprise-grade security and routing performance in a space-efficient form factor.

Network Performance and Connectivity

Equipped with five 2.5 GbE RJ45 ports, the UXG-MAX provides one dedicated WAN port and four LAN ports, with one LAN port remappable to WAN for flexible dual-WAN configurations. The quad-core ARM Cortex-A53 processor running at 1.5 GHz with 2GB DDR4 memory delivers up to 1.5 Gbps routing throughput with IDS/IPS enabled.

The gateway supports WiFi QoS with UniFi APs, application-based QoS, domain and country-based traffic management, plus device type identification for granular network control. Internet quality monitoring and outage reporting provide visibility into connection reliability.

Enterprise Security Features

The UXG-MAX implements signature-based IPS/IDS threat detection with application-aware firewall rules. Content filtering, country blocking, domain filtering, and ad blocking capabilities protect your network. VLAN and subnet-based traffic segmentation with full stateful firewall ensures secure network isolation.

Advanced Routing and VPN Capabilities

License-free SD-WAN functionality enables intelligent traffic routing across multiple WAN connections. The gateway functions as a WireGuard, L2TP, and OpenVPN server, with OpenVPN client support and IPsec site-to-site VPN. One-click Teleport and Identity Enterprise VPN simplify remote access deployment. Policy-based WAN and VPN routing, DHCP relay, customizable DHCP server, and IPv6 ISP support provide comprehensive networking flexibility.

Management and Specifications

Managed through CloudKey, Official UniFi Hosting, or UniFi Network Server (version 8.1.113 or later), the UXG-MAX integrates seamlessly into UniFi ecosystems. The compact polycarbonate enclosure measures 141.8 x 127.6 x 30 mm and weighs 520g with IK04 impact resistance. USB-C powered (5V/3A) with 100-240V support and 9.6W maximum power consumption. Operates in temperatures from -10 to 40°C with 5-95% humidity tolerance. CE, FCC, and IC certified.

PLEASE NOTE THIS PRODUCT IS ONLY SUPPLIED WITH AN EU PLUG - NO UK PLUG SUPPLIED

Performance
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Internet quality and outage reporting

Next-Generation Security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall

Advanced Networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity Enterprise VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IPv6 ISP support

Dimensions
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")

Weight
520 g (1.1 lb)

Enclosure Material
Polycarbonate

Resistance
IK04

Processor
Quad-core ARM Cortex-A53 at 1.5 GHz

Memory Information
2GB DDR4

Management Interface
Ethernet
Bluetooth

Networking Interface
LAN:
(4) 2.5 GbE RJ45 ports

WAN:
(1) 2.5 GbE RJ45 port

IDS/IPS Throughput
1.5 Gbps*
*Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation.

Power Method
USB type C (5V/3A)

Supported Voltage Range
100–240V

Maximum Power Consumption
9.6W

LED
Ethernet
White: link/activity

Button
(1) Factory reset

Ambient Operating Temperature
-10 to 40° C (14 to 104° F)

Ambient Operating Humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

• Ports: 5
• Firewall: Yes
• Rack Mountable: No
