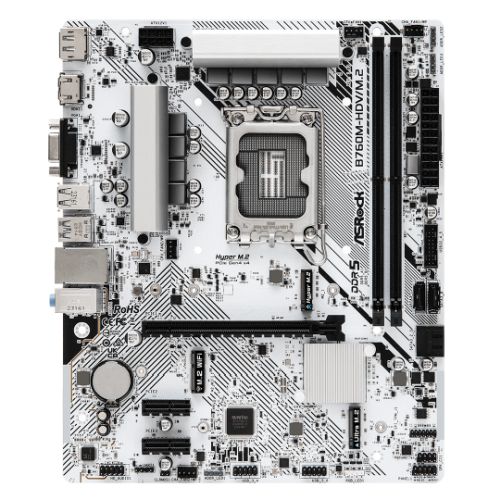

ASRock B760M-HDV/M.2 Intel B760 Micro ATX Motherboard

The ASRock B760M-HDV/M.2 delivers reliable performance for 13th and 12th Gen Intel Core processors in a compact Micro ATX form factor. Built with a 7+1+1 power phase design, this motherboard ensures stable power delivery for demanding applications and gaming workloads.

DDR5 Memory Performance

Support for DDR5 memory up to 7200MHz (OC) with Intel XMP 3.0 profiles provides enhanced system responsiveness. Two DIMM slots accommodate up to 128GB of high-speed memory, giving you room for future upgrades while maintaining dual-channel performance.

Expansion and Storage Options

The B760M-HDV/M.2 features one PCIe 4.0 x16 slot for modern graphics cards and two PCIe 3.0 x1 slots for additional expansion cards. Storage flexibility includes four SATA III ports, one M.2 slot with PCIe Gen4 x4 support for lightning-fast NVMe SSDs, and an additional M.2 slot with PCIe Gen3 x4. RAID 0, 1, 5, and 10 configurations are supported for SATA devices.

Connectivity and Display Outputs

Triple display output options (D-Sub, HDMI, DisplayPort 1.4) allow flexible multi-monitor configurations when using integrated graphics. The Dragon 2.5Gb/s LAN delivers 2.5X the bandwidth of standard gigabit ethernet for faster file transfers and reduced latency. An M.2 Key E slot provides the option to add a WiFi module for wireless connectivity.

USB and Audio Features

Comprehensive USB connectivity includes one USB 3.2 Gen1 Type-C port, five USB 3.2 Gen1 Type-A ports (three rear, two front), and six USB 2.0 ports (two rear, four front). The Realtek ALC897 audio codec delivers 7.1 channel HD audio through multiple rear panel jacks.

RGB Lighting and Customization

Onboard RGB headers and addressable RGB headers enable connection to compatible LED strips, fans, and coolers. Polychrome RGB Sync allows synchronization across certified accessories for unified lighting effects.

Convenient Driver Installation

ASRock Auto Driver Installer eliminates the need for optical drives. The preinstalled LAN driver ensures immediate network connectivity, allowing you to download and install all necessary drivers directly from the internet.

Backed by a 3-year replacement warranty, the B760M-HDV/M.2 includes a user manual, I/O shield, two SATA data cables, and M.2 mounting screws. This motherboard provides a solid foundation for budget-conscious builds requiring modern features and reliable performance.
