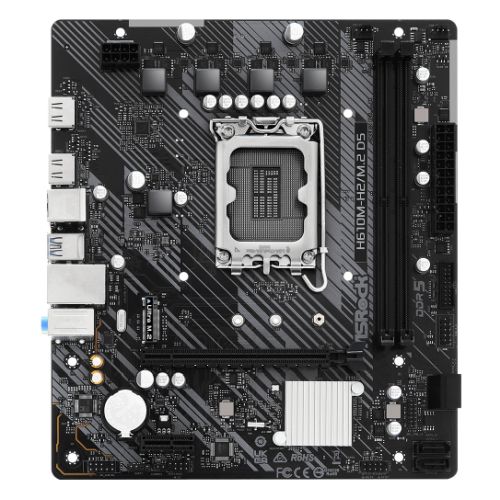

H610M-H2/M.2 D5


• Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
• 3+1+1 Phase Power Design
• Supports DDR5 5600MHz*
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: 2 HDMI
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
• 4 USB 3.2 Gen1 (2 Rear, 2 Front)
• 6 USB 2.0 (4 Rear, 2 Front)
• Realtek Gigabit LAN
• Supports ASRock Auto Driver Installer

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel H610
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
  Supports Intel XMP 3.0
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 5600 MHz
• Maximum Memory: 128GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 2 x HDMI 2.1
• PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
  1 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe 3.0 x4
• Wireless: -
• LAN: GB LAN
• USB Ports Supported: Rear:
  2 x USB 3.2 Gen1 Type-A
  4 x USB 2.0

  Front:
  2 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
• Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
  2 x HDMI
  2 x USB 3.2 Gen1 Type-A
  4 x USB 2.0
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x SPI TPM
  1 x Chassis Intrusion and Speaker
  1 x CPU Fan
  1 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Panel Audio
  1 x USB 2.0
  1 x USB 3.2 Gen1
• Accessories: 1 x User Manual
  1 x I/O Shield
  2 x SATA Data Cables
  1 x Screw for M.2 Socket
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.7100 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
