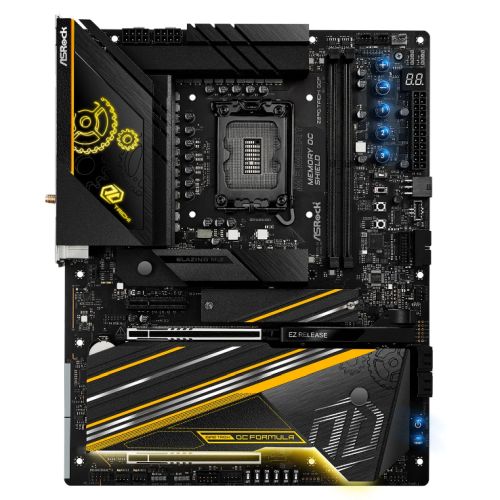

ASRock Z890 Taichi OCF - Extreme Overclocking Motherboard

The ASRock Z890 Taichi OCF represents the pinnacle of extreme overclocking motherboard engineering, designed specifically for professional overclockers and enthusiasts who demand maximum performance from Intel's latest Core Ultra Processors (Series 2). This ATX motherboard combines advanced power delivery, premium components, and professional-grade overclocking tools in ASRock's flagship Taichi lineup.

Professional Power Delivery System

At the core of the Z890 Taichi OCF is a robust 22+1+2+1+1 power phase design featuring 110A Smart Power Stage (SPS) technology. This Dr.MOS configuration monitors current and temperature of each phase, delivering exceptionally clean power to the CPU for enhanced overclocking capability and system stability during extreme workloads.

Extreme Memory Performance

Supporting dual-channel DDR5 memory up to 10133MHz+ (OC), this motherboard features ASRock's patented Memory OC Shield technology. This innovative shielding reduces electromagnetic interference around memory modules, optimizing signal integrity and enabling higher frequency stability. The 10-layer 2oz server-grade ultra low-loss PCB further enhances memory overclocking potential while maintaining signal integrity across all components.

Professional Overclocking Toolkit

The Z890 Taichi OCF includes comprehensive hardware-level overclocking controls: dedicated OC buttons for real-time adjustments, V-Probe voltage measurement points with 11 test locations, six customizable OC profile switches, and support for ElmorLabs OC Panel. The integrated CPU heater header provides up to 42W of heating power to prevent CPU SoC Tile freezing during LN2 extreme overclocking sessions.

High-Speed Connectivity

Equipped with dual Thunderbolt 4 Type-C ports delivering 40Gbps data transfer, 802.11be Wi-Fi 7 with multi-link operation support, and optimized 5Gb/s Ethernet LAN with patent-pending EMI-resistant design. Additional USB connectivity includes dual USB 3.2 Gen2x2 Type-C ports (20Gbps), four USB 3.2 Gen2 Type-A ports, and multiple USB 3.2 Gen1 headers.

Expansive Storage Configuration

The motherboard accommodates six M.2 NVMe SSDs, including one PCIe 5.0 x4 Blazing M.2 slot and five PCIe 4.0 x4 Hyper M.2 slots. Tool-free installation mechanisms for both SSDs and heatsinks simplify system building, while M.2 bottom heatsinks efficiently dissipate heat through the PCB. Four SATA III ports provide additional storage flexibility with RAID 0/1/5/10 support.

Premium Expansion Options

Three PCIe slots include two PCIe 5.0 x16 slots (x16/x8 configuration) and one PCIe 4.0 x4 slot. The Graphics Card EZ Release mechanism enables hassle-free GPU installation and removal. Premium audio comes via Realtek ALC4082 7.1 CH HD codec with Nahimic Audio enhancement.

DIY-Friendly Features

BIOS Flashback enables firmware updates using only USB and power supply—no CPU or RAM required. The motherboard includes Dr. Debug LED, dedicated power/reset/retry/safe boot buttons, slow mode switch, LN2 mode switch, and NickShih's OC profile buttons for streamlined overclocking workflows.
