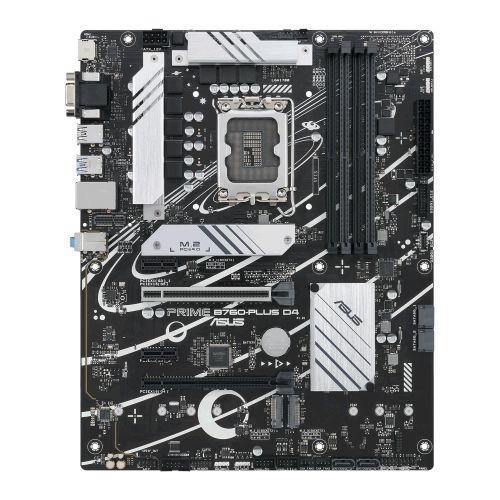

ASUS PRIME B760-PLUS D4 ATX Motherboard

The ASUS PRIME B760-PLUS D4 is an ATX motherboard engineered for 13th and 12th Gen Intel Core processors, featuring the Intel B760 chipset and LGA 1700 socket. This motherboard delivers robust power delivery, comprehensive cooling solutions, and flexible connectivity options for PC builders and enthusiasts.

Performance and Compatibility

Built to handle high core counts and bandwidth demands of modern Intel processors, the B760-PLUS D4 supports DDR4 memory across four DIMM slots with speeds up to 5066MHz (OC) and maximum capacity of 128GB. ASUS OptiMem technology ensures careful trace routing for improved memory stability and signal integrity.

Connectivity and Expansion

The motherboard features PCIe 5.0 x16 slot for next-generation graphics cards, plus additional PCIe 4.0 x16 (x4 mode) and two PCIe 3.0 x1 slots. Storage options include three M.2 PCIe 4.0 slots with heatsink coverage, plus four SATA III ports supporting RAID 0/1/5/10 configurations through Intel Rapid Storage Technology.

Network connectivity is handled by Realtek 2.5Gb Ethernet, while USB options include USB 3.2 Gen2x2 Type-C, multiple USB 3.2 Gen2 and Gen1 ports, plus Thunderbolt (USB4) header support. Display outputs include VGA, HDMI, and DisplayPort for integrated graphics support.

Cooling and Customization

Comprehensive thermal management includes VRM heatsinks, M.2 heatsink, PCH heatsink, and hybrid fan headers controlled through Fan Xpert 2+ software. Aura Sync RGB lighting features onboard Addressable Gen 2 headers and Aura RGB header for LED strip integration.

Audio and Features

Realtek 7.1 Surround Sound High Definition Audio CODEC delivers quality sound output. The motherboard includes intuitive BIOS controls, multiple temperature sensors, and flexible tuning options for performance optimization.

Key Specifications:

• Intel LGA 1700 socket for 13th/12th Gen processors
• 4x DDR4 DIMM slots, up to 128GB
• PCIe 5.0 x16 slot
• 3x M.2 PCIe 4.0 slots
• Realtek 2.5Gb Ethernet
• USB 3.2 Gen2x2 Type-C
• VGA, HDMI, DisplayPort outputs
• Aura Sync RGB lighting

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel B760
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 5066(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 5.0 x16
  1 x PCIe 4.0 x16 (supports x4 mode)
  2 x PCIe 3.0 x1

• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2242/2260/2280/22110) - PCIe
  1 x M.2 (2242/2260/2280) - PCIe
• RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
• Wireless: -
• LAN: 2.5GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
  2 x USB 3.2 Gen2 Type-A (at back)
  3 x USB 3.2 Gen1 (1 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)
  1 x Front Panel Type-C USB 3.2 Gen1 Header"
• Back Panel I/O Ports: 1 x USB 3.2 Gen2x2 Type-C
  2 x USB 3.2 Gen2 Type-A
  1 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  1 x DisplayPort
  1 x VGA
  1 x HDMI
  1 x Vertical M.2 (Key E)
  1 x Realtek 2.5Gb Ethernet
  3 x Audio jacks
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin AIO Pump
  3 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  3 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1 Type-C
  1 x USB 3.2 Gen1
  2 x USB 2.0
  3 x Addressable Gen2
  1 x Aura RGB
• .: 1 x Clear CMOS
  1 x COM Port
  1 x Front Panel Audio
  1 x S/PDIF Out
  1 x SPI TPM (14-1pin)
  1 x 20-3 pin System Panel
  1 x Thunderbolt (USB4)
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  1 x M.2 Rubber Package
  2 x Screw Packages for M.2 SSD
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.1600 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
