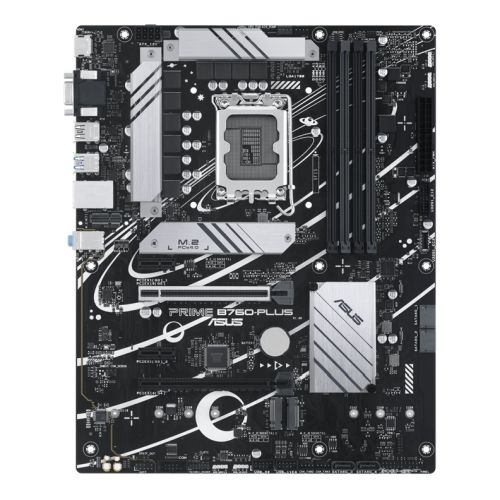

ASUS PRIME B760-PLUS ATX Motherboard - Intel LGA1700 Platform

The ASUS PRIME B760-PLUS delivers a robust foundation for Intel 13th and 12th generation processors with the LGA1700 socket. This ATX motherboard combines the Intel B760 chipset with comprehensive connectivity options and enhanced memory support for mainstream PC builds.

High-Speed Connectivity and Expansion

Equipped with PCIe 5.0 x16 slot for next-generation graphics cards, the B760-PLUS provides future-proof expansion capabilities. Three PCIe 4.0 M.2 slots accommodate high-speed NVMe storage drives in multiple form factors (2242/2260/2280/22110), while four SATA III ports support traditional storage devices. The motherboard includes Realtek 2.5Gb Ethernet for low-latency network performance and USB 3.2 Gen 2x2 Type-C connectivity delivering up to 20Gbps transfer speeds.

DDR5 Memory Technology

Four DIMM slots support DDR5 memory up to 192GB capacity with speeds reaching 7200MHz+ when overclocked. ASUS OptiMem II technology optimizes memory trace routing for improved signal integrity and stability. Intel XMP (Extreme Memory Profile) support enables easy one-click memory overclocking.

Multi-Display Output Options

The rear I/O panel features three display outputs: DisplayPort, HDMI, and VGA, allowing simultaneous multi-monitor configurations when using processors with integrated graphics. This flexibility accommodates various display types and resolutions for productivity or entertainment setups.

Comprehensive Cooling Solution

VRM heatsinks dissipate heat from power delivery components, while dedicated M.2 and PCH heatsinks maintain optimal operating temperatures for storage and chipset. Hybrid fan headers and Fan Xpert 2+ utility provide intelligent fan control with support for PWM and DC fans, plus an AIO pump header for liquid cooling systems.

RGB Lighting and Customization

Aura Sync RGB lighting support includes onboard Addressable Gen 2 headers and standard Aura RGB header for LED strip integration. Synchronize lighting effects across compatible ASUS hardware and peripherals through the Aura Sync software.

Rear Panel I/O

The comprehensive rear panel includes USB 3.2 Gen 2x2 Type-C, two USB 3.2 Gen 2 Type-A ports, USB 3.2 Gen 1 Type-A, two USB 2.0 ports, three audio jacks with Realtek 7.1 surround sound codec, and a vertical M.2 Key E slot for WiFi module expansion.

Internal Connectivity

Front panel connectivity includes USB 3.2 Gen 1 Type-C header, USB 3.2 Gen 1 header, and dual USB 2.0 headers. Thunderbolt (USB4) header support enables add-in card compatibility. Four 4-pin fan headers (CPU, AIO pump, three chassis) provide flexible cooling configuration.

Backed by a 3-year warranty, the ASUS PRIME B760-PLUS includes SATA cables, M.2 mounting hardware, I/O shield, and user documentation for straightforward installation.
