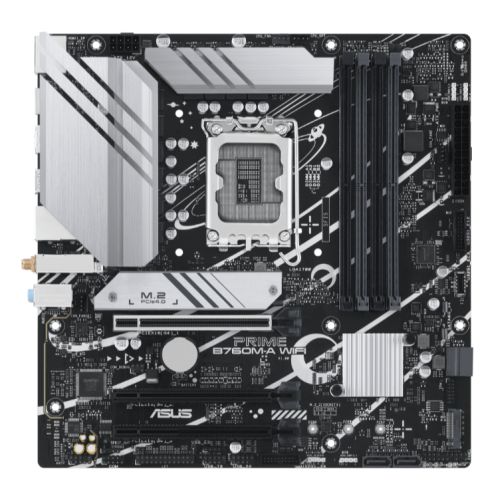

Intel® B760 (LGA 1700) mATX mortheboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync

• Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
• Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
• Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

                                             ** Click here for full product details **

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel B760
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7200+(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 2 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 4.0 x16
  1 x PCIe 4.0 x16 (supports x4 mode)
  1 x PCIe 4.0 x16 (supports x1 mode)
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2242/2260/2280) - PCIe
• RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
• Wireless: Wi-Fi 6
  2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth v5.2
• LAN: 2.5GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "2 x USB 3.2 Gen2 Type-A (at back)
  4 x USB 3.2 Gen1 (at mid-board)
  9 x USB 2.0 (4 at back, 5 at mid-board)
  1 x Front Panel Type-C USB 3.2 Gen1 Header"
• Back Panel I/O Ports: 2 x USB 3.2 Gen2 Type-A
  4 x USB 2.0
  1 x DisplayPort
  2 x HDMITM
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  2 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  2 x M.2 (Key M)
  4 x SATA 6Gb/s
  2 x USB 3.2 Gen1
  1 x USB 3.2 Gen1 Type-C
  2 x USB 2.0
  1 x USB 2.0
  3 x Addressable Gen2
• .: 1 x Aura RGB
  1 x Clear CMOS
  1 x COM Port
  1 x Front Panel Audio
  1 x LPT
  1 x S/PDIF Out
  1 x SPI TPM (14-1pin)
  1 x 20-3 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x ASUS Wi-Fi moving antennas
  1 x I/O Shield
  1 x M.2 Rubber Package
  1 x Screw package for M.2 SSD
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.6000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
