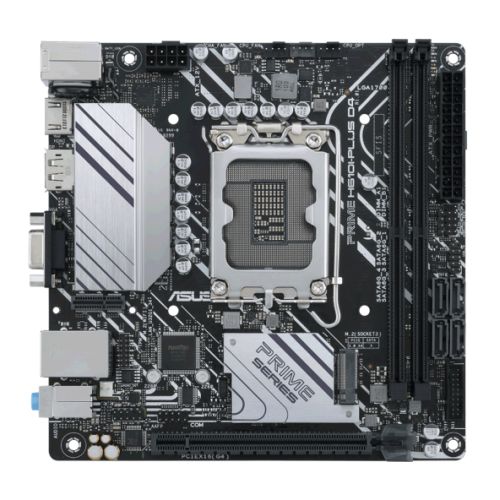

ASUS PRIME H610I-PLUS D4-CSM Mini ITX Motherboard

The ASUS PRIME H610I-PLUS D4-CSM is a Mini ITX motherboard designed for 12th Generation Intel Core processors with LGA 1700 socket compatibility. Built on the Intel H610 chipset, this Corporate Stable Model delivers reliable performance for business and professional applications in compact form factor builds.

Corporate Stable Model Reliability

This motherboard is part of the ASUS Corporate Stable Model program, offering up to 36-month product lifecycle support and 6-month end-of-life notice. Each purchase includes ASUS Control Center Express, server-grade IT management software that enables remote monitoring, automated maintenance scheduling, and secure endpoint management across corporate networks.

Power Delivery and Cooling

The PRIME H610I-PLUS D4-CSM features a 5+1+1 DrMOS power stage design on an 8-layer PCB for stable power delivery to your processor. VRM heatsinks with thermal pads improve heat dissipation from MOSFETs and chokes. Multiple 4-pin fan headers support comprehensive cooling configurations, with Fan Xpert software providing intelligent control and auto-tuning capabilities.

Memory and Storage

Two DDR4 DIMM slots support up to 64GB of dual-channel memory at speeds up to 3200MHz. Storage options include four SATA III ports and one M.2 slot (2260/2280) supporting both SATA and PCIe 3.0 connectivity with transfer speeds up to 32Gbps. The single PCIe 4.0 x16 slot with SafeSlot Core reinforcement provides 1.6x stronger retention for graphics cards.

Connectivity Options

Display outputs include VGA, HDMI, and DisplayPort for multi-monitor configurations. Realtek 1Gb Ethernet provides network connectivity, while a vertical M.2 Key E slot with dedicated Wi-Fi card holder allows optional wireless module installation. USB connectivity includes four USB 3.2 Gen1 ports and four USB 2.0 ports across rear panel and internal headers.

Audio and Legacy Support

Realtek 7.1 surround sound codec handles audio duties with three rear audio jacks and a front audio header. A mono-out header with amplifier IC provides additional audio output options. COM port header and PS/2 combo port maintain compatibility with legacy peripherals for industrial and business applications.

UEFI BIOS and Software

The ASUS UEFI BIOS offers both EZ mode for quick setup and Advanced mode for detailed tuning. The Energy Processing Unit optimizes power consumption, while Digi+ VRM provides precise voltage control. Armoury Crate software centralizes system management, fan control, and product settings from a single interface.

Package Contents

Includes two SATA cables, I/O shield, M.2 screw package, vertical M.2 Key E bracket set, support DVD, and user guide. Backed by a 3-year warranty.
