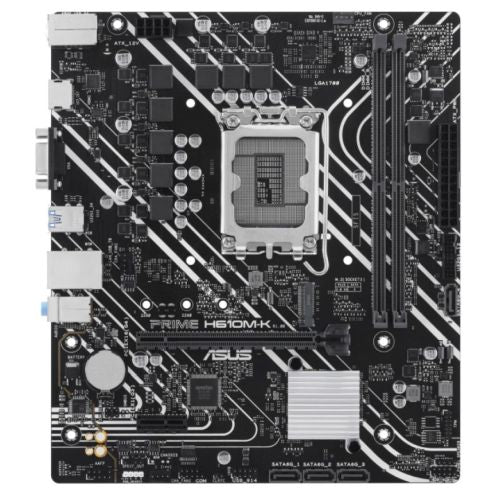

ASUS PRIME H610M-K Intel H610 Micro ATX Motherboard

The ASUS PRIME H610M-K delivers reliable performance for 12th and 13th Generation Intel processors in a compact micro ATX form factor. Built on the Intel H610 chipset with LGA 1700 socket compatibility, this motherboard provides essential features for home and office PC builds.

DDR5 Memory Support

Equipped with 2 DIMM slots supporting DDR5 memory up to 96GB, the PRIME H610M-K handles speeds from 4800MHz to 5600MHz. Intel XMP support allows for easy memory overclocking, while dual-channel architecture ensures efficient data throughput. The board supports non-ECC, un-buffered DDR5 modules with On-Die ECC functionality.

Expansion and Storage

The motherboard features one PCIe 4.0 x16 slot for graphics cards and one PCIe 3.0 x1 slot for additional expansion cards. Storage options include four SATA III ports and one M.2 slot supporting 2242/2260/2280 drives via PCIe 3.0 x4, delivering transfer speeds up to 32 Gbps for fast boot times and application loading.

Connectivity Options

Display outputs include HDMI and VGA ports for flexible monitor configurations with integrated graphics. The rear I/O panel provides two USB 5Gbps Type-A ports, four USB 2.0 ports, Realtek 1Gb Ethernet, three audio jacks, and a PS/2 combo port. Internal headers support additional USB 3.2 Gen1 and USB 2.0 connections.

Cooling and Power Design

The board includes a PCH heatsink and supports Fan Xpert 2+ for intelligent fan control through three 4-pin fan headers (one CPU, two chassis). Power delivery consists of a 24-pin main connector and 8-pin +12V CPU power connector, providing stable power for compatible processors.

UEFI BIOS and Tuning

ASUS UEFI BIOS offers intuitive controls for system configuration, from simplified options for beginners to comprehensive features for experienced users. Advanced mode provides detailed settings for memory tuning, fan curves, and system monitoring.

DIY-Friendly Features

Q-LED Core provides visual POST diagnostics to troubleshoot potential issues during startup. SafeSlot Core reinforces the PCIe x16 slot with a fortified anchor design, offering 1.6x stronger retention and 1.3x greater shearing resistance compared to standard slots. The motherboard includes RGB header support for customizable lighting.

Package Contents

Includes two SATA 6Gb/s cables, I/O shield, M.2 anchor, and user guide. Backed by a 3-year warranty and ASUS 5X Protection III with multiple hardware safeguards for component longevity.
