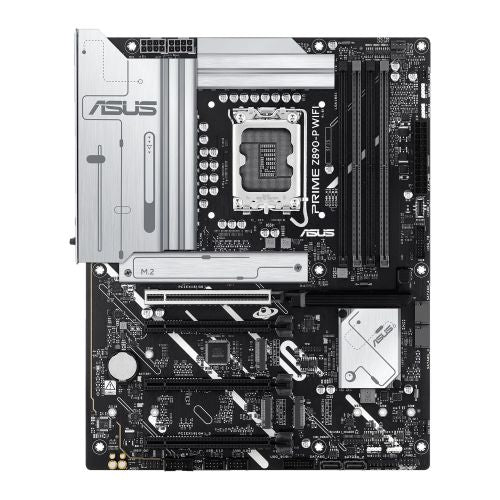

ASUS PRIME Z890-P WIFI ATX Motherboard

The ASUS PRIME Z890-P WIFI is an ATX motherboard engineered for Intel Core Ultra Processors (Series 2) with LGA1851 socket compatibility. Built on the Intel Z890 chipset, this motherboard delivers robust power delivery and advanced connectivity for demanding PC builds and AI-ready applications.

Advanced Power Design and Performance

Featuring a 14+1+2+1 phase power design with 80A DrMOS power stages, the PRIME Z890-P WIFI ensures stable power delivery for high-core-count CPUs. The integrated NPU Boost feature allows one-click NPU overclocking, increasing AI workflow performance by up to 24%. ASUS Enhanced Memory Profile III (AEMP III) optimizes CUDIMM memory performance, achieving DDR5-7600 speeds and higher with balanced stability.

DDR5 Memory and Storage

Four DDR5 DIMM slots support up to 256GB of memory with speeds reaching 8400+MT/s when overclocked. The DIMM Fit BIOS feature analyzes individual memory modules to optimize performance and compatibility. For storage, four M.2 slots provide extensive expansion, including one PCIe 5.0 x4 slot delivering up to 128Gbps transfer speeds, plus three PCIe 4.0 x4 slots and four SATA III ports.

Next-Gen Connectivity

WiFi 7 technology supports 160MHz bandwidth in the 6GHz band with Multi-Link Operation for stable, low-latency connections across 2.4, 5, and 6GHz bands. Thunderbolt 4 USB Type-C provides 40Gbps bidirectional bandwidth, supporting external 8K displays and 32Gbps PCIe bandwidth. Realtek 2.5Gb Ethernet ensures reliable wired networking. The PCIe 5.0 x16 slot with SafeSlot reinforcement supports next-generation graphics cards with doubled data transfer speeds compared to PCIe 4.0.

Intelligent Cooling and AI Features

Multiple onboard heatsinks and hybrid fan headers maintain optimal temperatures under heavy workloads. ASUS Fan Xpert 4 software provides comprehensive fan and AIO cooler control with Auto-Tuning and Extreme Quiet modes. AI Cooling II dynamically adjusts fan speeds based on CPU temperatures, while AI Networking II optimizes network performance for maximized WiFi 7 speeds.

DIY-Friendly Design

The pre-mounted I/O shield simplifies installation, while BIOS FlashBack enables BIOS updates via USB without requiring CPU or memory installation. The UEFI BIOS interface offers intuitive controls for beginners and advanced features for experienced users. Aura Sync RGB lighting with three Addressable Gen2 headers allows complete customization of system aesthetics. TurboV Core enables Windows-based overclocking without BIOS navigation or system reboots.

Comprehensive I/O

Rear panel connectivity includes Thunderbolt 4 Type-C, USB 10Gbps Type-A, multiple USB 5Gbps and USB 2.0 ports, DisplayPort, HDMI, and audio jacks. Internal headers support front-panel USB 10Gbps Type-C, additional USB connections, and extensive fan control. The motherboard is compatible with Intel Core Ultra Processors (Series 2) and backed by a 3-year warranty.
