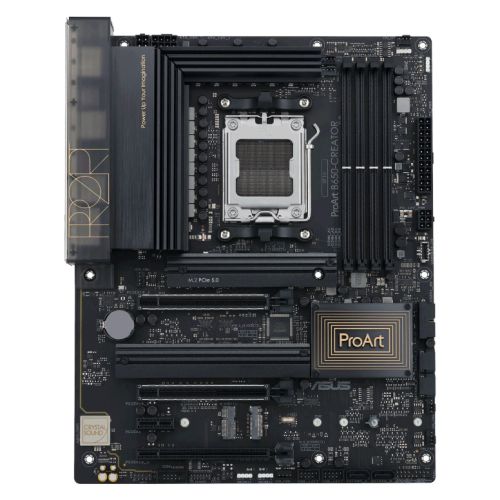

ASUS ProArt B650-Creator AM5 Motherboard for Content Creation

The ASUS ProArt B650-Creator is an ATX motherboard engineered specifically for intensive content creation workflows including virtual production, 3D rendering, and 4K/8K video editing. Built on the AMD B650 chipset with AM5 socket compatibility, this motherboard unleashes the full potential of AMD Ryzen 7000 and 9000 Series processors.

Robust Power Delivery for Professional Workloads

Featuring a 12+2 teamed power stage design with ProCool power connectors, this motherboard ensures stable power delivery even under sustained heavy loads. Premium alloy chokes and durable capacitors engineered to resist extreme temperatures provide reliability for mission-critical projects. AMD Precision Boost Overdrive (PBO) support allows the system to leverage the robust power solution for maximum performance.

Comprehensive Connectivity Options

The ProArt B650-Creator excels in connectivity with dual Ethernet ports (2.5Gb and 1Gb) enabling simultaneous fast data transfers for internet and local NAS storage. USB-C DisplayPort (DP Alt Mode) delivers up to 10 Gbps transfer speeds with 8K resolution at 60Hz output capability. The USB 3.2 Gen 2x2 Type-C front-panel connector supports Quick Charge 4+ with up to 60W power delivery, while USB4 support via Thunderbolt header enables bi-directional speeds up to 40 Gbps with optional add-on card.

High-Speed Storage Configuration

Three M.2 slots provide exceptional storage flexibility, with the primary slot supporting PCIe 5.0 x4 for blistering 16GB/s speeds (Ryzen 9000/7000 Series). Two additional PCIe 4.0 x4 M.2 slots deliver 8GB/s transfers, complemented by four SATA III ports. AMD RAIDXpert2 Technology supports both NVMe and SATA RAID configurations (0/1/10).

DDR5 Memory Performance

Four DIMM slots support up to 192GB of DDR5 memory with speeds reaching 7600MHz+ (OC) through AMD EXPO support. ASUS Enhanced Memory Profile (AEMP) automatically optimizes frequency, timing, and voltage profiles for PMIC-restricted memory modules, while OptiMem II technology ensures signal integrity.

Creator-Focused Features

ProArt Creator Hub provides centralized system monitoring and control with hardware status overview, fan profile management, and task grouping for workflow optimization. CreationFirst network optimization offers five modes to prioritize bandwidth for different creative tasks. Two-Way AI Noise Cancelation leverages deep-learning algorithms to eliminate background noise from both microphone input and incoming audio during video conferences.

DIY-Friendly Design Elements

M.2 Q-Latch enables tool-free SSD installation, while SafeSlot and SafeDIMM reinforcement prevents physical damage during component installation. Pre-mounted I/O shield and Q-Connector simplify the build process. ASUS Fan Xpert 4 provides comprehensive control over fans, water pumps, and AIO coolers with Auto-Tuning and Extreme Quiet modes.

Advanced Security Management

ASUS Control Center Express delivers enterprise-grade security features including USB port management with read-only options, software blacklisting capabilities, and remote Registry Editor controls to prevent unauthorized system changes and protect confidential project data.

Expansion and Graphics

PCIe configuration includes two PCIe 4.0 x16 slots supporting x16 or x8/x8 modes (CPU-connected), plus one PCIe 4.0 x16 slot (x4 mode) and one PCIe 4.0 x1 slot (chipset-connected). Integrated graphics support with HDMI output and USB-C DisplayPort provides flexible display options. Realtek 7.1 Surround Sound High Definition Audio CODEC handles professional audio requirements.
