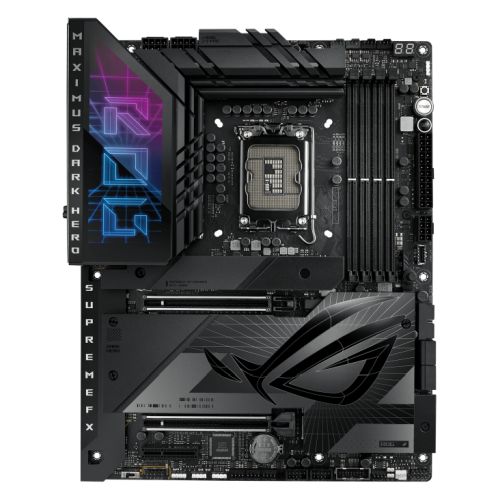

ASUS ROG MAXIMUS Z790 DARK HERO Gaming Motherboard

The ROG MAXIMUS Z790 DARK HERO delivers flagship performance for Intel 14th Gen Core processors with advanced connectivity and robust power delivery. This ATX motherboard combines PCIe 5.0 support, WiFi 7 technology, and sophisticated cooling solutions for enthusiast gaming builds.

Advanced Connectivity and Storage

Equipped with five M.2 slots including one PCIe 5.0 x4 slot, this motherboard provides exceptional storage flexibility. Dual PCIe 5.0 x16 slots support the latest graphics cards in x16 or x8/x8 configurations. Thunderbolt 4 USB Type-C ports deliver 40Gbps transfer speeds with DisplayPort output capability, while Intel 2.5Gb Ethernet ensures low-latency networking.

WiFi 7 and Next-Gen Wireless

The integrated Intel WiFi 7 chipset introduces 320MHz channel bandwidth in the 6GHz band with 4096 QAM, achieving transfer rates up to 5.76Gbps. Multi-Link Operation (MLO) technology provides stable connections with reduced latency for competitive gaming and streaming. Bluetooth 5.4 support rounds out the wireless capabilities.

DDR5 Memory Performance

Four DIMM slots support up to 192GB of DDR5 memory with speeds reaching 8000MHz+ when overclocked. ASUS Enhanced Memory Profile II (AEMP II) and DIMM Flex technology optimize memory performance, while Intel XMP profiles ensure compatibility with high-performance modules.

Robust Power Delivery

The 20+1+2 power stage design with Teamed Power Solution provides stable power delivery for demanding overclocking scenarios. Dual 8-pin 12V connectors and an additional 8-pin PCIe connector ensure adequate power distribution across all components.

Intelligent Cooling and AI Features

AI Cooling II dynamically adjusts fan speeds based on CPU temperatures and system load, balancing thermal performance with acoustic levels. Multiple fan headers including CPU, AIO pump, and chassis fan connectors provide comprehensive cooling control. Water cooling support includes dedicated water flow, water in/out, and pump headers.

Polymo Lighting Design

The distinctive Polymo lighting system illuminates the I/O shroud with a microstructural array of dual-layer RGB LEDs. Aura Sync compatibility allows synchronization with ROG graphics cards, peripherals, and other compatible components for unified lighting effects.

AI Overclocking

ASUS AI Overclocking analyzes CPU capabilities and cooling performance to predict optimal configurations automatically. This intelligent tuning system reduces manual tweaking while maximizing performance potential.

Comprehensive I/O

Rear I/O includes two Thunderbolt 4 ports, six USB 10Gbps ports, four USB 5Gbps ports, HDMI output, and gold-plated audio jacks with ROG SupremeFX 7.1 surround sound. Front panel connectivity supports USB 20Gbps Type-C with 60W Power Delivery, plus additional USB 5Gbps and USB 2.0 headers.

DIY-Friendly Features

Q-Latch M.2 mounting system, BIOS FlashBack button, Clear CMOS button, and onboard Start/ReTry buttons simplify installation and troubleshooting. The included Q-Connector streamlines front panel header connections.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel Z790
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: "DDR5, Dual Channel
  Supports Intel Extreme Memory Profile (XMP) memory module
  ASUS Enhanced Memory Profile II (AEMP II)
  Supports DIMM Flex"
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 8000+(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics*
  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  2 x Intel Thunderbolt 4 (USB Type-C) support DisplayPort and Thunderbolt video outputs
• PCI/PCI Express: 2 x PCIe 5.0 x16 (x16 or x8/x8 modes)
  1 x PCIe 4.0 x4
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x4
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
  1 x M.2 (2280) - PCIe 4.0 x4
  1 x M.2 (2280) - PCIe 4.0 x4
• RAID: "Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10"
• Wireless: "Intel Wi-Fi 7
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band
  Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate.
  Bluetooth v5.4"
• LAN: 2.5GB LAN
• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
• USB Ports Supported: "Rear:
  2 x Thunderbolt 4 (USB Type-C)
  6 x USB 10Gbps (5 Type-A, 1 Type-C)
  4 x USB 5Gbps (Type-A)

  Front:
  1 x USB 20Gbps (Type-C with up to 60W PD/QC4+)
  4 x USB 5Gbps
  4 x USB 2.0"
• Back Panel I/O Ports: "2 x Thunderbolt 4 USB Type-C
  6 x USB 10Gbps (5 Type-A, 1 Type-C)
  4 x USB 5Gbps (Type-A)
  1 x HDMITM
  1 x Wi-Fi Module
  1 x Intel 2.5Gb Ethernet
  5 x Gold-plated audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack button
  1 x Clear CMOS button"
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  4 x 4-pin Chassis Fan
  1 x W_PUMP+
  1 x 2-pin Water In
  1 x 2-pin Water Out
  1 x 3-pin Water Flow
  1 x 24-pin main
  2 x 8-pin +12V
  1 x 8-pin PCIe
  5 x M.2 (Key M)
• .: 4 x SATA 6Gb/s
  1 x USB 20Gbps (Type-C)
  2 x USB 5Gbps
  2 x USB 2.0
  3 x Addressable Gen2
  1 x AURA RGB
  1 x FlexKey button
  1 x Front panel audio
  1 x Start button
  1 x ReTry button
• .: 1 x 10-1 pin system panel
  1 x Thermal sensor
  1 x CPU over voltage jumper
  1 x Alternative PCIe mode switch
• Accessories: 1 x ARGB RGB extension cable
  4 x SATA 6Gb/s cables
  1 x Thermal pad for M.2
  1 x DDR5 fan holder
  1 x ASUS WiFi Q-Antenna
  3 x M.2 backplate Q-Latch packages
  3 x M.2 backplate Rubber Packages
  1 x Q-connector
  1 x ROG stickers
  1 x ROG key chain
• .: 1 x M.2 rubber package
  1 x ROG VIP card
  1 x USB drive with utilities and drivers
  1 x Quick start guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 4.2000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
