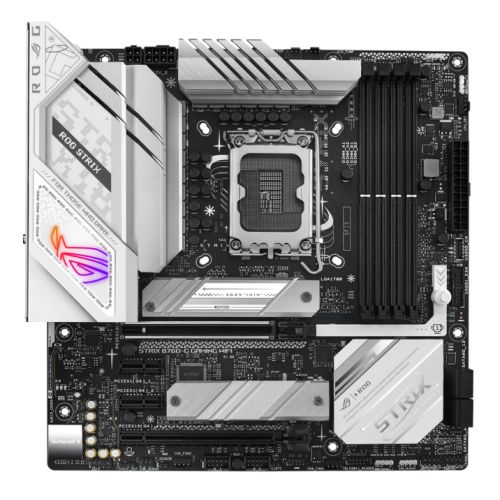

Midsize overperformer: the ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, ready to propel your next mATX rig.

It bears the same high-bandwidth connectivity as its trusty counterpart, but diverges with lightning-fast DDR5 memory and buffed power stages to complement high-speed Intel 13th Gen processors. White and silver accents pair perfectly with the ASUS AP201, and retro insignias give it a dash of classic Strix style.

• DDR5 Memory - 7800+ MT/s, AEMP II, XMP
• PCIe. 5.0 - x1 PCIe 5.0 x16 slot
• USB 3.2 Gen 2x2 Type-C rear I/O port
• 12 + 1 Power Stages
• WiFi 6E
• DIY-Friendly Design

All-Round Performance

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel B760
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7800+(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 5.0 x16
  1 x PCIe 4.0 x16 (supports x4 mode)
  2 x PCIe 4.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2242/2260/2280) - PCIe
• RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
• Wireless: Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.3
• LAN: 2.5GB LAN
• Audio: ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
• USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
  1 x USB 3.2 Gen2 Type-A (at back)
  1 x USB 3.2 Gen1 Type-C (at back)
  4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
  8 x USB 2.0 (4 at back, 4 at mid-board)
  1 x Front Panel Type-C USB 3.2 Gen2 Header"
• Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 Type-C
  1 x USB 3.2 Gen2 Type-A
  3 x USB 3.2 Gen1 (2 Type-A, 1 Type-C)
  4 x USB 2.0
  1 x HDMI
  1 x DisplayPort
  1 x Wi-Fi Module
  1 x Intel 2.5Gb Ethernet
  5 x Audio jacks
  1 x BIOS FlashBack button "
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  2 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  1 x 4-pin +12V
  2 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen2 Type-C
  1 x USB 3.2 Gen1
  2 x USB 2.0
• .: 3 x Addressable Gen2
  1 x AURA RGB
  1 x Clear CMOS
  1 x Front Panel Audio
  1 x S/PDIF Out
  1 x 20-3 pin System Panel
  1 x Thermal Sensor
  1 x Thunderbolt (USB4)
• Accessories: 2 x SATA 6Gb/s cables
  1 x Thermal pad for M.2
  1 x ASUS Wi-Fi moving antennas
  1 x Cable ties pack
  1 x Rubber Package for M.2
  1 x Q-Latch package for M.2
  1 x ROG key chain
  1 x ROG Strix stickers
  1 x ROG Strix thank you card
  1 x User manual
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.7800 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
