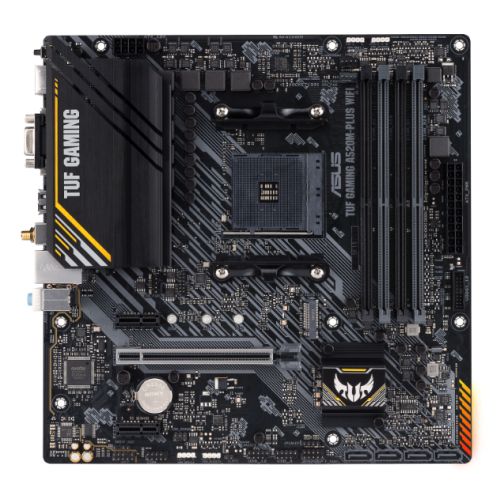

ASUS TUF Gaming A520M-PLUS WiFi Micro ATX Motherboard

The ASUS TUF Gaming A520M-PLUS WiFi delivers military-grade reliability for AMD Ryzen builds. This Micro ATX motherboard combines the AMD A520 chipset with essential gaming features and proven durability for rock-solid performance.

AMD AM4 Socket Compatibility

Ready for AMD Ryzen 5000 Series, 4000 G-Series, and 3000 Series Desktop Processors. The AM4 socket provides flexibility for current and future CPU upgrades, making this motherboard a future-proof foundation for your system.

Memory and Storage

Four DDR4 DIMM slots support up to 128GB of dual-channel memory with speeds reaching 4800MHz (OC). The motherboard includes one M.2 slot (2242/2260/2280) supporting both SATA and PCIe 3.0 x4 for high-speed NVMe drives, plus four SATA III ports for additional storage. RAID 0, 1, and 10 configurations are supported for enhanced performance or data redundancy.

Comprehensive Cooling Solution

Engineered with large VRM heatsinks and PCH heatsink to maintain optimal temperatures under load. Fan Xpert 2+ technology provides intelligent fan control, ensuring your system runs cool and quiet during extended gaming sessions.

Multiple Display Outputs

Triple display connectivity with VGA, HDMI, and DisplayPort outputs supports integrated graphics processors. This flexibility allows you to choose the connection method that best suits your monitor setup.

Built for Online Gaming

Integrated 802.11ac WiFi with 1x1 2.4/5GHz antennas delivers speeds up to 433.3Mbps. Bluetooth 5.0 provides wireless connectivity for peripherals. TUF LANGuard and TurboLAN technology on the Gigabit Ethernet port ensure stable, lag-free wired connections. Realtek ALC887/897 codec delivers 7.1 surround sound for immersive audio.

Expansion and Connectivity

One PCIe 3.0 x16 slot supports modern graphics cards, while two PCIe 3.0 x1 slots provide room for additional expansion cards. The rear I/O panel includes four USB 3.2 Gen1 Type-A ports, two USB 2.0 ports, and PS/2 combo port. Internal headers support additional USB 3.2 Gen1 and USB 2.0 connections.

AURA Sync RGB Lighting

Two AURA Addressable Gen2 headers and two AURA RGB headers allow you to customize your system lighting. Sync RGB LED strips and compatible components for coordinated lighting effects throughout your build.

TUF Gaming Alliance

Part of the TUF Gaming Alliance ecosystem, ensuring compatibility with cases, power supplies, CPU coolers, and memory kits from trusted manufacturers. Armoury Crate software provides centralized control of system settings, RGB lighting, and fan profiles through a single dashboard.

Military-Grade Components

Built with military-grade components and an upgraded power solution featuring 24-pin main power and 8-pin +12V CPU power connectors. BIOS FlashBack button enables easy BIOS updates without requiring a CPU installation.

** Click here for full product details **

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM4
• Chipset: AMD A520
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 4800(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics Processor*
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 3.0 x16 (supports x16 mode)
  2 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - SATA & PCIe 3.0 x4
• RAID: "RAID 0, 1, 10"
• Wireless: 802.11ac Wi-Fi
  1x1 2.4/5GHz antennas for up to 433.3Mbps
  Bluetooth v5.0
• LAN: GB LAN
• Audio: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0

  Front:
  2 x USB 3.2 Gen1
  3 x USB 2.0
• Back Panel I/O Ports: 4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x D-Sub
  1 x ASUS Ei-Fi Module
  1 x Realtek 1Gb Ethernet
  3 x Audio jacks
  1 x BIOS FlashBack button
  1 x PS/2 Keyboard/Mouse combo
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  2 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  1 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1
  2 x USB 2.0
  2 x AURA Addressable Gen2
  2 x AURA RGB
  1 x Clear CMOS
  1 x COM Port
• .: 1 x Front Panel Audio
  1 x S/PDIF Out
  1 x Speaker
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin System Panel
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.6000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
