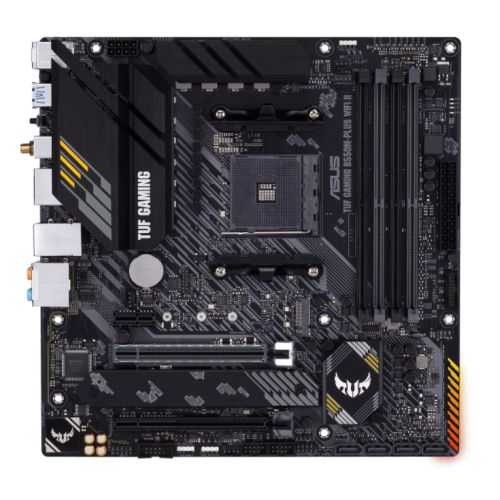

ASUS TUF GAMING B550M-PLUS WIFI II AMD B550 Motherboard

The ASUS TUF GAMING B550M-PLUS WIFI II delivers military-grade durability and rock-solid performance for AMD Ryzen builds. This Micro ATX motherboard combines the AMD B550 chipset with comprehensive connectivity options, making it the foundation for high-performance gaming systems.

AMD Ryzen Compatibility

Built on the AM4 socket, this motherboard supports Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors. The enhanced 8+2 DrMOS power stages with ProCool connector and DIGI+ VRM ensure stable power delivery for high-core-count CPUs, while military-grade TUF components provide maximum durability.

High-Speed Connectivity

PCIe 4.0 support enables faster data transfer for next-generation graphics cards and NVMe SSDs. Dual M.2 slots accommodate M.2 drives up to 22110 size, supporting both SATA and PCIe protocols. The motherboard includes four SATA III ports with RAID 0, 1, and 10 support for flexible storage configurations.

Advanced Networking

Wi-Fi 6 (802.11ax) with 2x2 antenna configuration delivers faster wireless speeds and improved network efficiency. Realtek 2.5Gb Ethernet with TUF LANGuard protection provides ultrafast wired connectivity for competitive online gaming. Bluetooth 5.2 support enables wireless peripheral connections.

Memory and Expansion

Four DDR4 DIMM slots support up to 128GB of dual-channel memory with speeds reaching 4866MHz (OC). The expansion layout includes one PCIe 4.0 x16 slot, one PCIe 3.0 x16 slot, and one PCIe 3.0 x1 slot for graphics cards and additional components.

Comprehensive Cooling

VRM heatsinks, fanless PCH heatsink, and M.2 heatsink work together to maintain optimal temperatures. Hybrid fan headers and Fan Xpert 2+ utility provide precise control over system cooling, ensuring stable performance during extended gaming sessions.

Connectivity and Audio

USB 3.2 Gen2 Type-A and Type-C ports on the rear panel deliver fast data transfer speeds. The motherboard includes six USB 3.2 Gen1 ports and six USB 2.0 ports across rear and internal headers. Realtek 7.1 Surround Sound audio with Two-Way AI Noise Cancellation ensures crystal-clear communication and immersive gaming audio.

RGB Lighting and Software

Aura Sync RGB lighting support allows synchronization with compatible components and peripherals. Armoury Crate software provides unified control over system settings, lighting effects, and performance monitoring through a single dashboard.

Easy Installation

BIOS FlashBack button enables BIOS updates without CPU installation. The TUF Gaming Alliance ensures component compatibility, while the included accessories package contains everything needed for system assembly.
