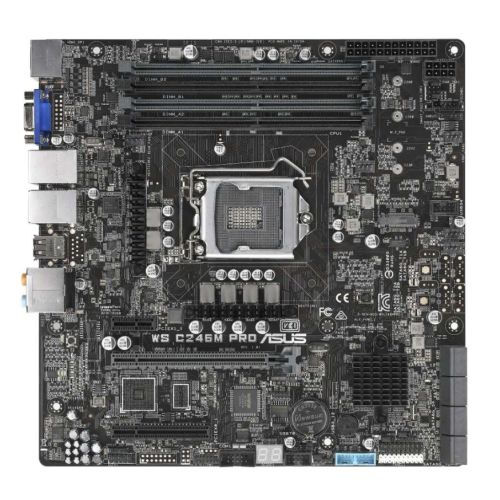

Compact, rack-optimized Intel® LGA1151 micro-ATX motherboard with M.2, USB 3.1 Gen2 connectors and dual Gigabit LAN

• Rack-optimized design for better cooling efficiency and stability
• Supports up to three independent displays simultaneously via HDMI, DisplayPort and VGA
• Accelerated data-transfer speeds of up to 32Gbps with M.2
• Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
• Dual Intel® Gigabit LAN with teaming support
• ASUS Control Center — A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: Micro ATX
• Socket: Intel 1151 - Coffee Lake
• Chipset: Intel C246
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 2666/2400/2133 MHz
• Maximum Memory: 64GB
• Graphics: Supports Intel HD Graphics
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• Multi-GPU Support: -
• PCI/PCI Express: Slot Location 1 : PCI-E x1 (Gen2 X1 Link)
  Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
  Slot Location 3 : PCI-E x8 (Gen3 X4 Link)
• Storage: 8 x SATA III
  1 x M.2 (2280/2260/2242)
• RAID: Supported
• Wireless: -
• LAN: Dual GB LAN
• USB Ports Supported: "2 x USB 3.1 Gen 2 Type-A (at back)
  4 x USB 3.1 Gen 1 (2 at back, 2 at mid-board)
  6 x USB 2.0 ports (2 at back, 4 at mid-board)"
• Back Panel I/O Ports: 2 x USB 3.1 ports (Type A)
  2 x USB 3.0 ports
  2 x USB 2.0 ports
  1 x HDMI
  1 x DisplayPort
  1 x VGA
  2 x RJ-45 ports
  8-channel Audio I/O ports
• Internal I/O Connectors: 2 x USB 2.0 pin header
  1 x USB 3.0 pin header
  1 x M.2
  1 x PSU Power
  1 x COM port
  1 x TPM
  1 x S/PDIF Out
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.9100 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: GB LAN
