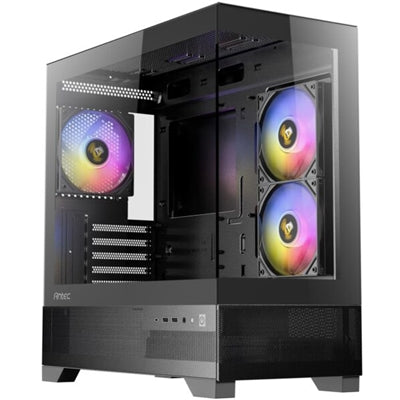

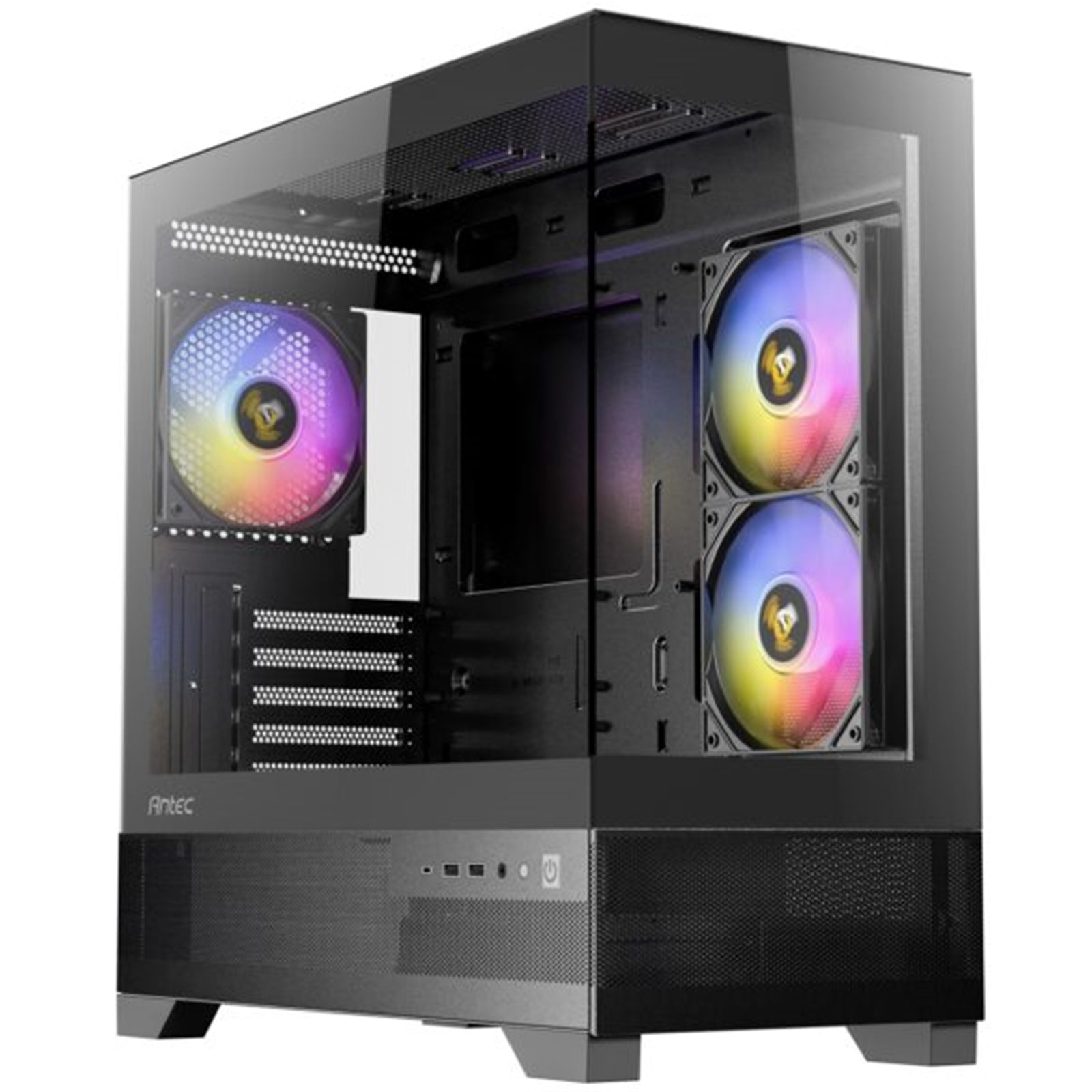

ANTEC CX500M ARGB Micro Tower Gaming Case

The ANTEC CX500M ARGB delivers a panoramic 270° showcase for your gaming build through seamless steel-tempered glass construction. The left and front panels provide an unobstructed view of your components, while the compact micro tower form factor fits Micro-ATX and Mini-ITX motherboards.

Panoramic Tempered Glass Design

Built with 4mm tempered glass side panels and tool-free assembly, the CX500M simplifies installation while reducing the risk of glass breakage during maintenance. The panoramic glass configuration creates an immersive viewing experience of your internal components and ARGB lighting effects.

Advanced Airflow Architecture

The case features bottom-up vertical airflow through strategically placed mesh panels on the lower front, lower left, and right sides. This design accelerates heat dissipation while maintaining positive air pressure. Pre-installed with three 120mm ARGB fans - two reverse fans on the right side and one rear exhaust - the system supports simultaneous operation of up to 9 fans for maximum cooling performance.

Connectivity & Front I/O

Front panel access includes 2x USB 3.0 ports, 1x USB Type-C 3.2 Gen 2 port, headphone/mic combo jack, power button, and LED control button. The Type-C port delivers modern connectivity for high-speed data transfer and peripheral support.

Component Compatibility

The CX500M accommodates graphics cards up to 415mm in length, CPU coolers up to 165mm in height, and power supplies up to 270mm (without HDD) or 210mm (with HDD). Radiator support extends to 360mm configurations on the top panel, with additional mounting options for 120mm, 140mm, 240mm, and 280mm radiators. Five expansion slots provide flexibility for multi-GPU setups and expansion cards.

Storage & Cable Management

Storage options include two 3.5"/2.5" drive bays and one dedicated 2.5" bay. Ample cable management space keeps builds organized and maintains clean aesthetics behind the motherboard tray. Top and bottom dust filters protect components from debris accumulation.

ARGB Lighting System

The three included 120mm ARGB fans support daisy-chain configuration for synchronized lighting effects. The front panel LED control button allows quick adjustments without software, enabling customization of your lighting setup.

Specifications

Dimensions:
436 x 210 x 446mm (DWH)

Form Factor:
Mini Tower

Materials:
Steel + Glass

Motherboard Support:
Micro-ATX, ITX

Front Access & Controls:
Power, LED Control Button, USB 3.0 x 2, Type-C 3.2 Gen 2 x 1, Headphone/Mic Combo Jack

Side Panel:
4mm Tempered Glass

Drive Bays:
3.5" / 2.5": 2 / 1
2.5": 1

Expansion Slots:
5

Fan Support:
Top: 3 x 120mm / 2 x 140mm
Side: 2 x 120mm
Power Supply Shroud: 3 x 120mm
Rear: 120mm

Included Fans:
2 x 120mm ARGB reverse fans (Right side)
1 x 120mm ARGB fan (Rear)

Radiator Support:
Top: 120 / 140 / 240 / 280 / 360mm

Clearance:
Max GPU Length: =415mm
Max CPU Cooler Height: =165mm
Max PSU Length (Including cables):
=210mm (With HDD)
=270mm (Without HDD)

Miscellaneous:
Dust Filters: Top / Bottom
Net Weight: 6.34 Kg
Gross Weight: 8.2 Kg
Warranty: 1 Year

Cooling & Cable Management:
This case is designed to support powerful air cooling with up to 9 fans simultaneously. It also provides ample space for cable management, ensuring your PC build remains clean and organized.

• Form Factor: Micro Tower
• Motherboard Support: Micro ATX
• PSU Included: None
• Case Colour: Black
• LED Colour: Addressable RGB
• USB 3.0: 2
• Side Panel: Panoramic Tempered Glass
