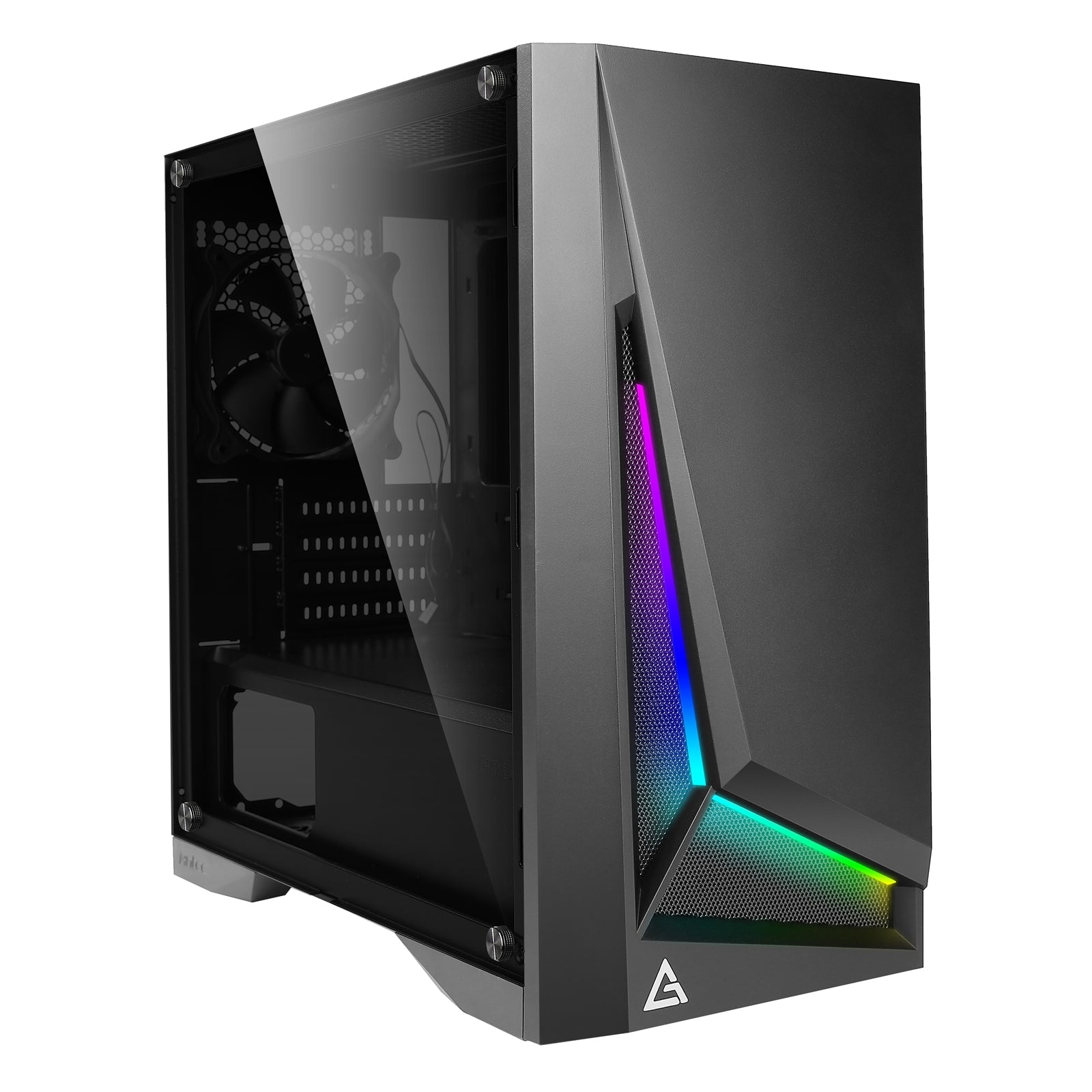

ANTEC DP301M - Compact Micro-ATX Gaming Case

The DP301M is a micro-ATX gaming case from Antec's Dark Phantom series, designed for gamers who need high-performance capability in a compact form factor. This black micro tower case combines functional design with addressable RGB lighting and tempered glass aesthetics.

Design and Build Quality

The DP301M features a distinctive boomerang-shaped ARGB strip on the front panel, creating a dynamic visual element that can be controlled via the integrated LED mode button. The mesh front panel design prioritizes airflow while maintaining the case's aggressive gaming aesthetic. Constructed from SPCC steel and plastic, the case measures 420 x 210 x 402mm and weighs 4.9kg net.

The tempered glass side panel provides a clear view of your internal components while maintaining structural integrity. The detachable front panel allows for easy maintenance and dust clearance, while magnetic dust filters on top and a removable bottom filter simplify cleaning.

Cooling and Airflow

Thermal management is handled through multiple fan mounting options. The front supports up to 3 x 120mm or 2 x 140mm fans, the top accommodates 2 x 120mm or 2 x 140mm fans, and the rear includes one pre-installed 120mm fan. Radiator support includes 280mm front mounting and 120mm rear mounting, making liquid cooling configurations viable.

Hardware Compatibility

Despite its compact dimensions, the DP301M offers generous hardware clearance. Graphics cards up to 360mm in length fit comfortably, CPU coolers up to 160mm tall are supported, and PSUs up to 170mm long can be installed. The case supports both Micro ATX and Mini-ITX motherboards with 4 expansion slots available.

Storage and Connectivity

Storage options include 2 x 3.5" removable drive racks that are compatible with 2.5" SSDs, plus an additional 2 x dedicated 2.5" SSD mounts. The I/O panel features 2 x USB 3.0 ports, HD microphone and audio jacks, power and reset buttons, and dedicated LED mode control for the ARGB lighting system.

Technical Specifications

• Form Factor: Micro Tower
• Motherboard Support: Micro ATX, Mini-ITX
• Materials: SPCC, Plastic
• I/O Panel: 2 x USB 3.0, HD Mic & Audio, Power, Reset, LED Mode Control
• Side Panel: Tempered Glass
• Expansion Slots: 4
• Drive Bays: 3.5"/2.5": 2 (convertible), 2.5": 2
• Cooling: Front: 3 x 120mm / 2 x 140mm, Top: 2 x 120mm / 2 x 140mm, Rear: 1 x 120mm (included)
• Radiator Support: Front: 280mm, Rear: 120mm
• Max GPU Length: 360mm
• Max CPU Height: 160mm
• Max PSU Length: 170mm
• Dust Filters: Top, Bottom
• Weight: Net: 4.9 kgs, Gross: 5.9 kgs
• Dimensions (L x W x H): 420 x 210 x 402mm
• Case Colour: Black
• LED Colour: Addressable RGB
• USB 3.0: 2

The DP301M delivers a balance of compact design, thermal performance, and hardware compatibility for Micro ATX gaming builds.
