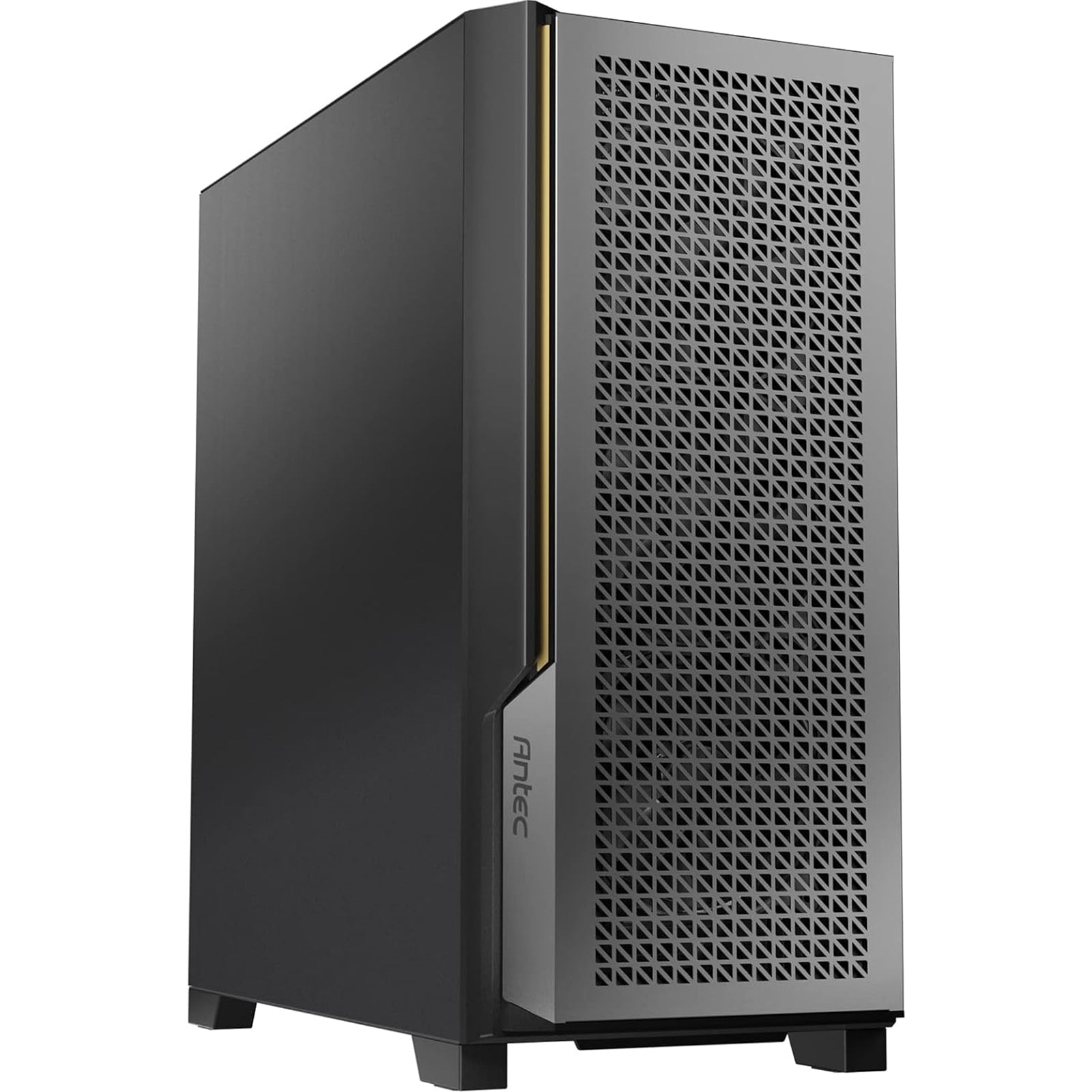

ANTEC P20CE Mid Tower Gaming Case

The ANTEC Performance Series P20CE gaming case delivers professional-grade cooling and expansion capabilities in a steel and plastic construction. Designed for enthusiasts and builders requiring maximum airflow and component compatibility, this mid tower case supports E-ATX, ATX, Micro-ATX, and ITX motherboards.

Advanced Cooling Architecture

The P20CE accommodates up to 9 x 120mm fans simultaneously, with 3 x 120mm PWM fans included at the front. Install 3 x 120mm fans and a 360mm radiator inside the front compartment, plus 3 x 120mm fans outside for exceptional thermal management. Dual 360mm radiator support at both front and top positions enables high-performance liquid cooling configurations. The pin-type metal front panel removes easily for unrestricted airflow access, while clip-on dust filters at front, top, and bottom protect components without compromising cooling efficiency.

Exceptional Expansion Flexibility

This case supports dual CPU motherboards up to 330mm wide, accommodating workstation and server-grade hardware. The 7 reusable PCI-E slots enable vertical GPU installation for custom layouts. Maximum component clearances include GPU length up to 375mm, CPU cooler height up to 170mm, and PSU length up to 410mm without HDD cage (205mm with HDD cage installed).

Professional Cable Management

Dedicated cable routing channels with top cutouts maintain organized builds. The power supply shroud conceals cables and supports 2 x 120mm fans for additional cooling. Four drive bays (2 x 3.5"/2.5" combo, 2 x 2.5" dedicated) provide flexible storage options.

Front I/O Connectivity

Front panel features Power and Reset buttons, 2 x USB 3.0 ports, 1 x USB Type-C 3.2 Gen 2 port, MIC input, and HD-AUDIO output for convenient access to modern connectivity standards.

SPECIFICATIONS

Case Specification

Dimensions
469 x 220 x 490mm (DWH)

Form Factor
Mid Tower

Materials
Steel + Plastic

Mainboard Support
E-ATX, ATX, Micro-ATX, ITX

Front Access & Controls
Power, Reset , USB 3.0 x 2, Type-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1

Side Panel
Solid Side Panel

Drive Bays

Expansion Slots
7

3.5" /2.5"
2/2

2.5"
2

Fan

Front
3 x 120mm / 3 X 140mm / 2 x 185mm

Top
3 x 120mm / 2 x 140mm

Power Supply Shroud
2 x 120mm

Rear
1 x 120mm

Included Fan(s)
3 x 120mm PWM fans in front

Radiator Support

Front
120 / 140 / 240 / 280 / 360mm

Top
120 / 140 / 240 / 280 / 360mm

Rear
120mm

Clearance

Max GPU Length
= 375mm

Max CPU Cooler Height
= 170mm

Max PSU Length
(Include cable) = 205mm(with HDD)
(Include cable) = 410mm(without HDD)

Miscellaneous

Dust Filter
Front / Top / Bottom

Net Weight
7.21 Kgs

Gross Weight
8.45 Kgs

• Form Factor: Mid Tower
• Motherboard Support: E-ATX
• PSU Included: None
• Case Colour: Black
• LED Colour: None
• USB 3.0: 2
• Side Panel: Solid
