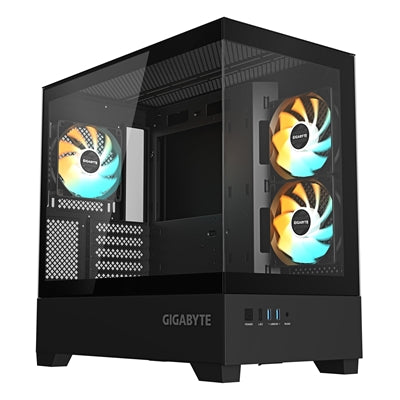

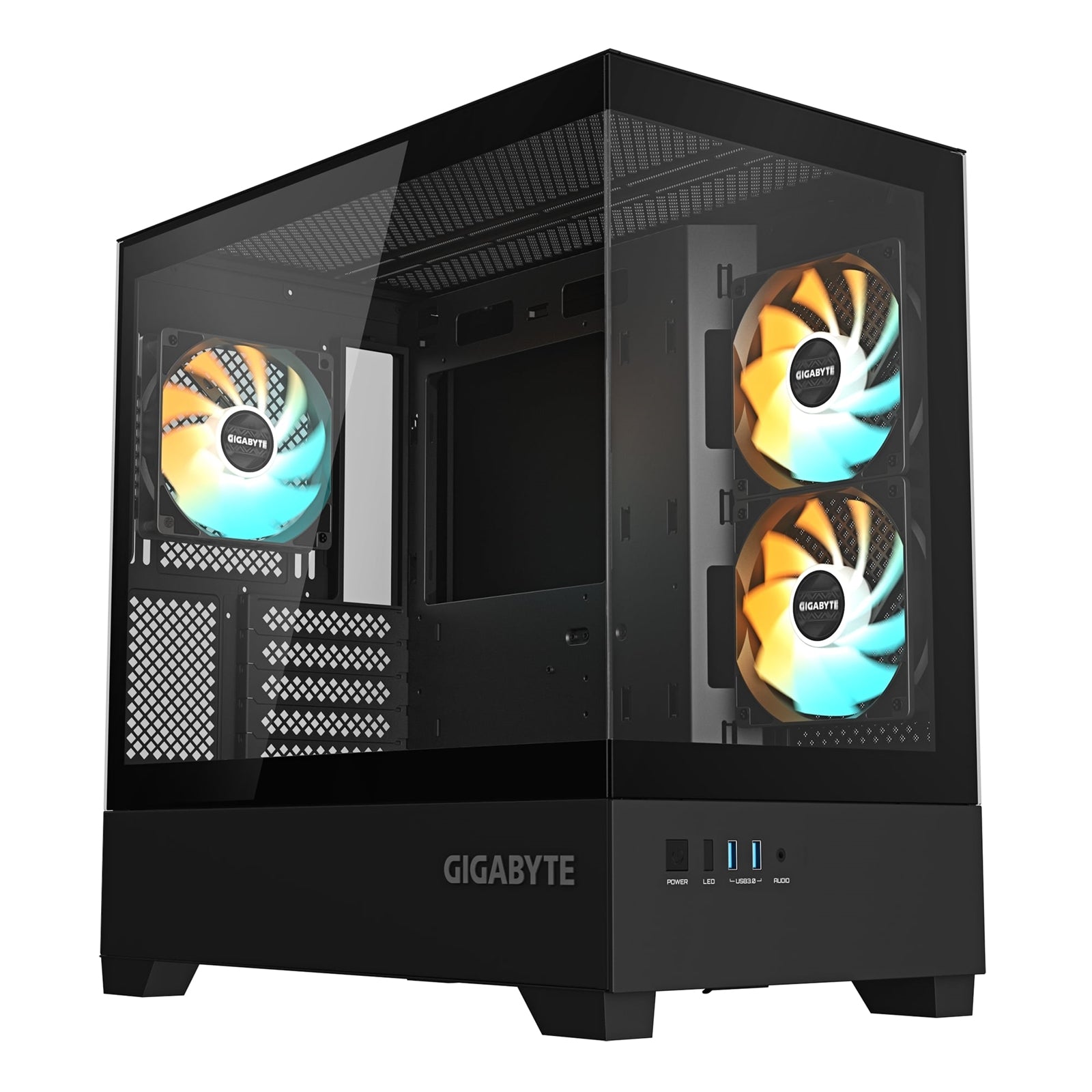

GIGABYTE C201 PANORAMIC RGB Gaming PC Case

The GIGABYTE C201 PANORAMIC delivers exceptional cooling performance and visual appeal for your gaming build. This mid tower case features a full-size tempered glass side panel that showcases your components while maintaining structural integrity.

Advanced Cooling and Airflow

Engineered with optimized airflow design, the C201 includes three pre-installed ARGB fans: two 120mm side fans and one 120mm rear fan. The case supports extensive radiator configurations with top mounting up to 360mm, side mounting up to 240mm, and rear mounting up to 140mm. Additional fan mounting options include three 120mm or two 140mm fans on top, and three 120mm fans on the PSU shroud for maximum cooling flexibility.

Build Compatibility

The C201 accommodates mini-ITX and m-ATX motherboards with generous component clearances: CPU coolers up to 190mm height, graphics cards up to 410mm length, and ATX power supplies up to 250mm length. Five expansion slots provide ample room for multi-GPU configurations and additional expansion cards.

Storage and Connectivity

Storage options include two 3.5" drive bays and one 2.5" drive bay, with the ability to replace 3.5" bays with two additional 2.5" drives for a total of three 2.5" drives. The front I/O panel features dual USB 3.0 ports, RGB LED switch, power switch, and HD audio support for convenient access.

RGB Lighting Integration

RGB Fusion compatibility allows synchronization of the pre-installed ARGB fans with other GIGABYTE RGB components. Control lighting effects directly from the front panel switch or through RGB Fusion software for customized visual effects.

Dust Management

Detachable dust filters on top, bottom, and side panels protect internal components from dust accumulation while maintaining airflow efficiency. The filters are easily removable for regular cleaning and maintenance.

GIGABYTE C201 PANORAMIC

FEATURES
Optimized airflow design
Full-size tempered glass side panel
Dual USB 3.0 ports on front I/O
Supports radiators up to 360mm
Detachable dust filters

Specifications

Case Form Factor
Mid Tower

M/B Type
mini-ITX/m-ATX

Color
Black

Materials
Steel, Plastic, Glass

Dimensions
H431x W242x D430 mm (Within ± 1% error)

Expansion Slots
5

5.25" Drive Bays
None

3.5" Drive Support
2

2.5" Drive Support
1+2 (replace from 3.5")

I/O Panel
USB 3.0 x2
RGB LED Switch
Power Switch
Audio In & Out (Supports HD audio)

Pre-installed Fans
Side : 120mm x2 (ARGB)
Rear : 120mm x1 (ARGB)

Fan Support
Top : 120mm x3 / 140mm x2
Side : 120mm x2
Rear : 120mm x1 / 140mm x1
PSU shroud : 120mm x3

Radiator Support
Top : Max 360mm
Side : Max 240mm
Rear : Max 140mm

Power Supply Type
Standard ATX (not included)

Maximum Compatibility
CPU Height : 190mm
GPU Length : 410mm
PSU Length : 250mm

Dust Filters
Top, Bottom, Side

RGB Lighting
Yes (Support RGB Fusion)

Weight
N.W. 6.45 Kg
G.W. 7.9 Kg

Package Dimensions
H=502 W=313 D=525 mm

Accessories
1. Installation Guide
2. Accessories kit
Includes 3 ARGB fans

• Form Factor: Mid Tower
• Motherboard Support: Micro ATX
• PSU Included: None
• Case Colour: Black
• LED Colour: RGB
• USB 3.0: 3
• Side Panel: Panoramic Tempered Glass
