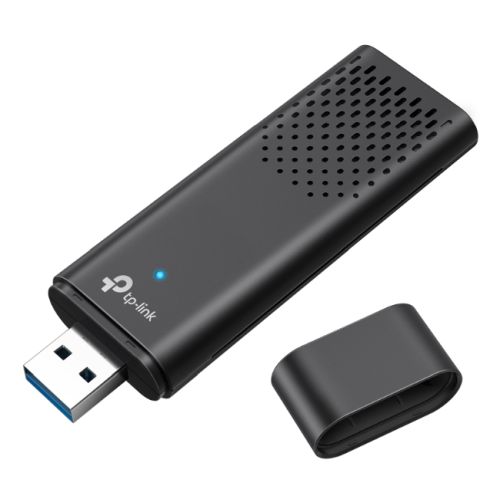

TP-Link Archer TX20U AX1800 Wi-Fi 6 USB Adapter

The TP-Link Archer TX20U delivers Wi-Fi 6 connectivity to your desktop or laptop through a compact USB 3.0 adapter. With combined speeds up to 1775 Mbps (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz), this adapter breaks the gigabit barrier for faster streaming, gaming, and downloads.

Wi-Fi 6 Technology for Modern Networks

Built on the 802.11ax standard, the Archer TX20U supports the latest Wi-Fi 6 features including OFDMA and MU-MIMO. OFDMA allows your PC to receive data simultaneously with other devices on the same stream, reducing latency for video calls and online gaming. MU-MIMO technology enables your network to process bandwidth for multiple devices concurrently, ensuring smooth performance across all connected devices.

Dual-Band Connectivity

Operating on both 2.4 GHz and 5 GHz bands, the TX20U provides flexible connectivity options. The 5 GHz band delivers speeds up to 1201 Mbps for bandwidth-intensive tasks, while the 2.4 GHz band offers 574 Mbps with better range for general browsing and smart home devices.

USB 3.0 Interface

The SuperSpeed USB 3.0 interface provides data transfer rates up to 4.8 Gbps—10 times faster than USB 2.0. This high-speed connection ensures the adapter can handle the full bandwidth of Wi-Fi 6 without bottlenecks. The adapter remains backward compatible with USB 2.0 ports.

Enhanced Coverage and Stability

Two dual-band internal antennas work with Beamforming technology to concentrate Wi-Fi signals toward your router. This directional approach improves reception quality and maintains stable connections even at longer distances from your access point.

WPA3 Security

The Archer TX20U supports WPA3 encryption, the latest Wi-Fi security standard. WPA3 provides enhanced protection against brute-force attacks and strengthens password-based authentication, keeping your network traffic secure.

Simple Installation

The adapter comes with drivers pre-loaded for Windows 11 and Windows 10. Installation requires simply plugging in the device and running the included setup. The compact design measures 90.2 x 29.2 x 12.9 mm, making it portable for use with multiple computers.

Technical Specifications

• Interface: USB 3.0
• Max Single Band Wi-Fi Rate: 1201 Mbps
• Bands: Dual Band
• Wireless Standards: IEEE 802.11a/b/g/n/ac/ax
• Antenna Type: 2 x Dual-Band Antennas
• Frequency / Signal Rate: 5GHz: up to 1201 Mbps, 2.4GHz: up to 574 Mbps
• LED: Status
• EIRP: 5 GHz: 19dBm(FCC) /21.5dBm(CE) (EIRP), 2.4 GHz : 19dBm(FCC) / 18.5dBm(CE) (EIRP)
• Dimensions: 90.2 x 29.2 x 12.9 mm
• Wireless Modes: Infrastructure mode
• Security: WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
• Environment: Operating Temperature: 0°C~40°C (32°F ~104°F), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing
• Package Contents: AX1800 Dual Band Wi-Fi 6 Wireless USB Adapter, Quick Installation Guide
• Package Type: Retail
• Package Weight: 0.1200 kg
• Warranty: 3 Years
