TP-LINK Archer TX20U Plus AX1800 WiFi 6 USB Adapter

The TP-LINK Archer TX20U Plus delivers WiFi 6 connectivity to your desktop or laptop through a USB 3.0 interface. With combined wireless speeds up to 1800 Mbps (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz), this adapter provides the bandwidth needed for 4K streaming, online gaming, and large file transfers.

WiFi 6 Technology for Modern Networks

Built on the IEEE 802.11ax standard, the TX20U Plus supports the latest WiFi 6 features including OFDMA and MU-MIMO. OFDMA reduces latency by allowing multiple devices to receive data simultaneously on the same stream, which is particularly beneficial for video conferencing and competitive gaming. MU-MIMO technology maintains high speeds even when multiple devices are actively using bandwidth on your network.

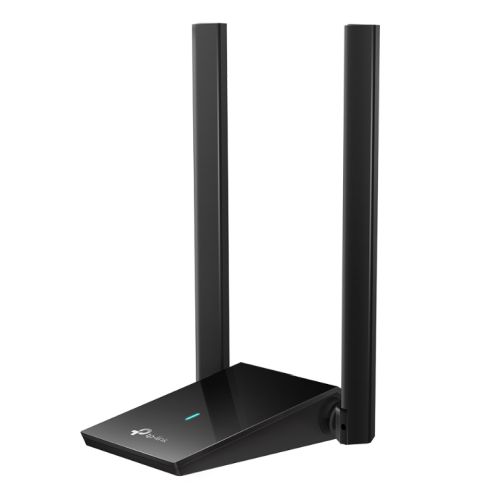

Dual High-Gain Antennas with Beamforming

Two external high-gain antennas provide enhanced signal reception and transmission range. The antennas are adjustable up to 180 degrees, allowing you to optimize placement for the strongest connection. Beamforming technology focuses WiFi signals directly toward your router, improving reception quality and maintaining stable connections even at greater distances.

USB 3.0 Interface for Maximum Throughput

The SuperSpeed USB 3.0 interface provides transfer speeds up to 10 times faster than USB 2.0, ensuring the adapter can fully utilize the 1800 Mbps wireless capability without bottlenecks. The included 1-meter USB 3.0 cable allows flexible desktop placement for optimal signal reception.

Dual Band Flexibility

Operating on both 2.4 GHz and 5 GHz bands, the adapter automatically connects to the optimal frequency for your needs. The 5 GHz band delivers speeds up to 1201 Mbps for bandwidth-intensive tasks, while the 2.4 GHz band offers speeds up to 574 Mbps with extended range for general browsing and connectivity.

WPA3 Security Encryption

The adapter supports the latest WPA3 security protocol alongside WEP, WPA, and WPA2 standards, providing enhanced protection for your network traffic and personal data.

Specifications

• Interface: USB 3.0
• Max Single Band Wi-Fi Rate: 1201 Mbps
• Bands: Dual Band
• Wireless Standards: IEEE 802.11a/b/g/n/ac/ax
• Antenna Type: 2 x High-Gain Dual-Band Antennas
• Frequency / Signal Rate: 5GHz: up to 1201 Mbps, 2.4GHz: up to 574 Mbps
• LED: Status
• EIRP: 5 GHz: 19dBm(FCC) /16dBm(CE), 2.4 GHz: 19dBm(FCC) / 14.5dBm(CE)
• Dimensions: 84 x 156.3 x 19.2 mm
• Wireless Modes: Infrastructure mode
• Security: WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
• Operating Temperature: 0°C~40°C (32°F ~104°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• Package Contents: AX1800 Wireless USB Adapter, Quick Installation Guide, 1-meter USB 3.0 Cable
• Package Weight: 0.2400 kg
• Warranty: 3 Years

The TP-LINK Archer TX20U Plus is compatible with Windows operating systems and works with any WiFi router, though WiFi 6 features require a compatible WiFi 6 router for full functionality.
