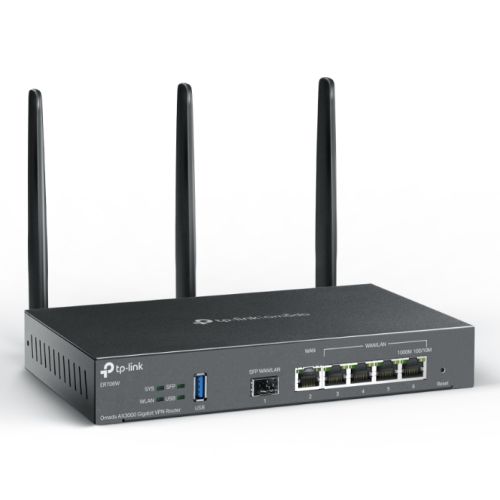

TP-Link ER706W Omada AX3000 Gigabit VPN Router

The TP-Link ER706W is an enterprise-grade dual-band wireless VPN router delivering WiFi 6 performance with AX3000 speeds—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Built for businesses requiring secure remote access and centralized network management, this router combines advanced VPN capabilities with Omada SDN integration.

WiFi 6 Performance and Connectivity

Equipped with the latest WiFi 6 technologies including HE160, OFDMA, and 1024 QAM, the ER706W provides concurrent transmission rates up to 3 Gbps. Three external detachable antennas (2x 3 dBi for 2.4 GHz, 3x 4.5 dBi for 5 GHz) deliver extended wireless coverage with reliable signal strength across large environments.

Flexible WAN Configuration and Ports

The router features 1 gigabit SFP port and 5 gigabit RJ45 ports, with up to 5 ports configurable as WAN for multi-WAN load balancing. The USB 3.0 port supports 4G/3G LTE dongles for mobile broadband backup and USB storage devices. Multi-WAN load balancing distributes traffic according to bandwidth proportion, maximizing utilization across multiple internet connections.

Enterprise VPN Security

Supporting multiple VPN protocols—IPSec (100 tunnels), SSL (50 tunnels), Wireguard, PPTP (50 tunnels), L2TP (50 tunnels), and OpenVPN (55 tunnels)—the ER706W offers flexible remote access options. One-click auto IPSec VPN simplifies configuration, while the built-in hardware engine accelerates VPN performance. Supports both LAN-to-LAN and Client-to-LAN configurations with IKE v1/v2, multiple encryption algorithms (DES, 3DES, AES128/192/256), and NAT traversal.

Omada Mesh and Centralized Management

Seamlessly integrates with Omada access points supporting mesh technology for self-organizing networks ideal for large-scale deployments. Intelligent self-organization optimizes connection paths while self-healing maintains network uptime. Manage the ER706W through Omada SDN platform with cloud access, the Omada app, or standalone mode via web interface. Features include zero-touch provisioning, SNMP v1/v2c/v3, and CLI support.

Advanced Security Features

Comprehensive security includes advanced firewall policies, DoS defense (TCP/UDP/ICMP flood protection), IP/MAC/URL filtering, ARP inspection with IP-MAC binding, and VLAN support. WiFi encryption supports WPA/WPA2/WPA3 Personal and Enterprise modes. Additional protections include web security filtering, TCP scan blocking, and source/destination IP-based access control.

Routing and Traffic Management

Advanced routing capabilities include static and policy routing, RIP, and OSPF protocols. IP-based bandwidth control, intelligent load balancing, and application-optimized routing ensure efficient traffic distribution. NAT features include one-to-one NAT, multi-net NAT, virtual server, port triggering, DMZ, and ALG support for FTP/H.323/SIP/IPSec/PPTP.

Technical Specifications

Steel construction ensures optimal thermal conductivity and heat dissipation for reliable operation. Dimensions: 226 x 131 x 35 mm (excluding antennas). Operating temperature: 0°C to 40°C. Powered by 12VDC/2A adapter. Supports Dynamic DNS services (Dyndns, No-IP), UPnP, and includes packet forwarding rates of 1,453,489 pps for 66-byte packets.
