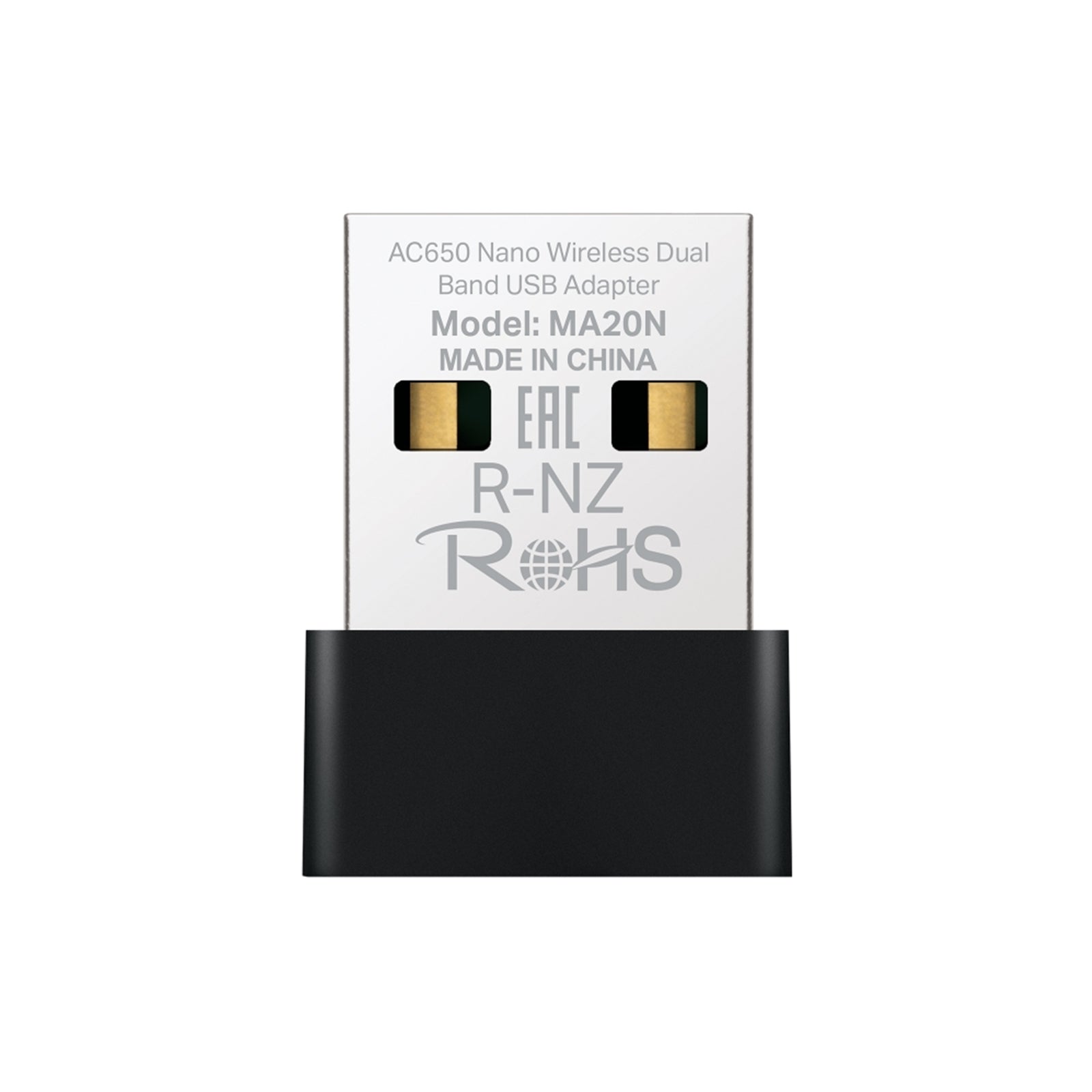

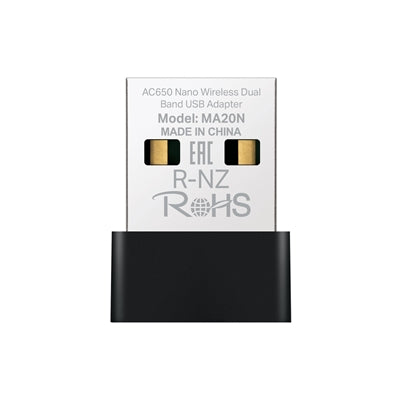

Mercusys MA20N AC650 Nano Wireless Dual Band USB Adapter

The Mercusys MA20N transforms any Windows computer into a wireless-capable device with AC650 dual band technology. This compact USB adapter delivers combined speeds up to 433 Mbps on 5 GHz and 200 Mbps on 2.4 GHz, providing reliable connectivity for browsing, streaming, and online work.

Dual Band Wireless Performance

Operating on both 5 GHz and 2.4 GHz frequencies, this adapter supports IEEE 802.11ac/a/n/g/b wireless standards. The 5 GHz band offers faster speeds with less interference, ideal for bandwidth-intensive tasks, while the 2.4 GHz band provides better range and compatibility with older networks.

Ultra-Compact Nano Design

Measuring just 14.94x7.19x19.15mm, the MA20N is smaller than a standard USB flash drive. Once plugged into your USB 2.0 port, it sits nearly flush with your device, making it perfect for laptops where you want a permanent wireless solution without the bulk of traditional adapters.

Plug and Play Installation

Windows 10 and 11 users benefit from built-in driver support, eliminating the need for manual software installation. Simply insert the adapter into an available USB 2.0 port and connect to your wireless network immediately.

WPA3 Security Protection

The MA20N supports the latest WPA3-SAE encryption standard alongside WPA/PSK and WPA2-PSK, providing enhanced protection for your wireless connection and personal data against unauthorized access.

Technical Specifications

Wireless

Wireless Standards
IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency
5 GHz
2.4 GHz

WiFi Speeds
Up to 433 Mbps on 5 GHz
Up to 200 Mbps on 2.4 GHz

Reception Sensitivity
5GHz:
11a 6Mbps: -95dBm
11a 54Mbps: -78 dBm
11ac VHT20 MCS8: -72 dBm
11ac VHT40 MCS9: -68.5dBm
11ac VHT80 MCS9: -64.5 dBm
2.4GHz:
11g 6Mbps: -95.5 dBm
11g 54Mbps: -79 dBm
11n HT20 MCS7: -76 dBm
11n HT40 MCS7: -74 dBm

Wireless Security
WPA/PSK, WPA2-PSK, WPA3-SAE

Hardware

Dimensions
14.94x7.19x19.15mm

Interfaces
USB 2.0

Antenna Type
1 Internal Antenna

Others

Package Contents
AC650 Nano Wireless Dual Band USB Adapter (MA20N)
Quick Installation Guide

System Requirements
Windows 11/10 (32/64-bit)

• Internal/External: Internal
• Connection: USB2.0
