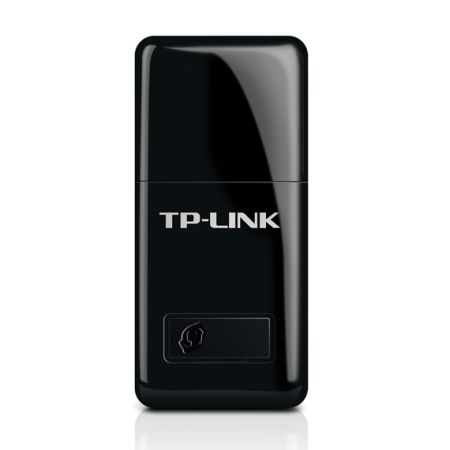

TP-LINK TL-WN823N 300Mbps Mini Wireless N USB Adapter

The TP-LINK TL-WN823N transforms any laptop or desktop computer into a WiFi-enabled device with wireless speeds up to 300Mbps. This compact USB adapter delivers reliable performance for HD video streaming, online gaming, and everyday internet browsing.

Compact USB 2.0 Design

Measuring just 1.54 x 0.72 x 0.31 inches, this fingertip-sized adapter provides maximum portability without sacrificing performance. The mini design allows you to leave it plugged in during transport or easily store it when not in use. The internal antenna eliminates external protrusions while maintaining strong wireless connectivity.

300Mbps Wireless Speed with MIMO Technology

Advanced MIMO technology delivers wireless speeds up to 300Mbps on the 2.4GHz frequency band. The adapter supports IEEE 802.11n standard while maintaining backward compatibility with 802.11b/g networks, ensuring connectivity with both modern and legacy wireless equipment.

SoftAP Mode for WiFi Hotspot Creation

The SoftAP Mode feature converts your wired internet connection into a wireless access point. Connect the adapter to a PC or laptop with ethernet access, and share that connection wirelessly with smartphones, tablets, and other WiFi-enabled devices. This functionality eliminates the need for a separate wireless router in many situations.

WPS Security Setup

The integrated WPS button enables one-touch security configuration. Press the button to automatically establish a WPA2-encrypted connection without manually entering passwords. This method provides stronger security than WEP encryption while simplifying the setup process.

Technical Specifications

• Interface: USB 2.0
• Wireless Standards: IEEE 802.11b/g/n (WiFi 4)
• Frequency Range: 2.4-2.4835GHz
• Maximum Speed: 300Mbps
• Security: 64/128-bit WEP, WPA-PSK, WPA2-PSK, WPA, WPA2
• Modulation: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Dimensions: 39 x 18.35 x 7.87mm

Easy Installation and Configuration

The included resource CD contains TP-LINK's configuration utility that guides users through software installation and network setup. The user-friendly interface allows even novice users to establish wireless connections quickly.

Package Contents

Each package includes the TL-WN823N wireless adapter, resource CD with drivers and utilities, and quick installation guide. Backed by a 3-year warranty for reliable long-term performance.

Specification

• Interface: USB 2.0
• Max Single Band Wi-Fi Rate: 300 Mbps
• Bands: Single Band
• Wireless Standards: "IEEE 802.11b, IEEE 802.11g, IEEE 802.11n"
• #Hide#Wireless Standard: Wi-Fi 4 (802.11n)
• External Antenna: No
• Antenna Type: Internal
• Frequency / Signal Rate: 2.400~2.4835GHz: up to 300Mbps
• Button(s): Wi-Fi Protected Setup (WPS) Button
• EIRP: <20dBm (EIRP)
• Dimensions: 1.54 x 0.72 x 0.31 in. (39 x 18.35 x 7.87mm)
• Wireless Modes: Client Mode (support Ad-hoc/Infrastructure network)
• Security: 64/128-bit WEP
  WPA-PSK / WPA2-PSK
  WPA / WPA2
• Modulation Technology: "DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM"
• Environment (°C): Operating Temperature: 0C~40C (32F~104F)
  Storage Temperature: -40C~70C (-40F~158F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: Wireless Adapter TL-WN823N
  Resource CD
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 0.0900 kg
• Warranty: 3 Years
