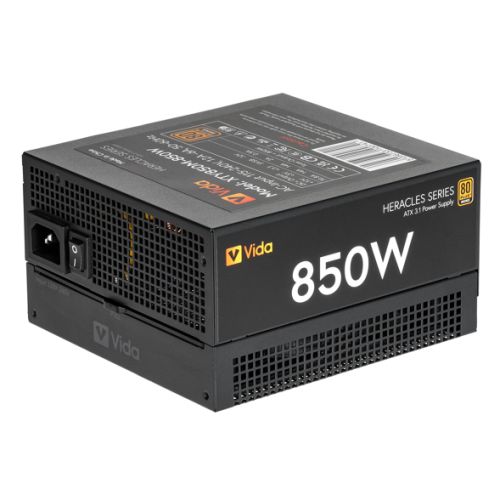

Vida 850W Heracles Gaming Power Supply - ATX 3.1 & PCIe 5.1 Ready

The Vida Heracles 850W power supply delivers reliable performance for modern gaming systems and workstations. Built with ATX 3.1 and PCIe 5.1 compatibility, this PSU is engineered to support the latest graphics cards and high-performance components.

80+ Bronze Efficiency with Active PFC

Certified 80+ Bronze, the Heracles 850W maintains efficient power conversion while reducing energy waste and heat output. Active PFC ensures stable power delivery and compliance with international power standards, operating across 115-240V AC input ranges.

Ultra-Quiet 14cm Fluid Dynamic Bearing Fan

The 140mm fluid dynamic bearing fan operates at under 50dB, providing effective cooling without intrusive noise. The removable dust filter protects internal components and extends the PSU's operational lifespan, rated at 100,000 hours MTBF at 25°C.

Next-Gen PCIe 5.1 Support

Equipped with a dedicated PCIe 5.1 450W cable, this power supply supports the latest high-power graphics cards without requiring multiple connectors. The comprehensive cable set includes 1x 24-pin motherboard connector, 2x 4+4-pin EPS, 4x PCIe 6+2-pin, 6x SATA, and 3x Molex connectors for complete system compatibility.

High-Grade Flat Black Cables

Premium flat black cables reduce cable clutter and improve airflow within your case. The non-modular design ensures all necessary connections are included, with cable lengths optimized for standard ATX chassis configurations.

Comprehensive Protection Systems

Multiple protection circuits safeguard your components: Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), Over Power Protection (OPP), and Short Circuit Protection (SOP). These systems monitor and protect against electrical anomalies.

Specifications

• Form Factor: ATX
• Series: Vida Heracles
• Wattage: 850 W
• Modular: Fully Wired
• Compatibility: ATX 3.1
  PCIe 5.1
• #Hide#Wattage Range: 800 - 860W
• Connectors: 1 x 24 pin (550mm)
  2 x 4+4 pin (650mm)
  6 x SATA (450+120+120mm) x2
  3 x Molex (450+120+120mm)
  4 x PCIe 6+2pin (550mm)
  1 x PCIe 5.1 450W cable (550mm)
• AC Input: 115-240V
• PFC: Active PFC
• Fan Type: Ultra-Quiet 140mm Black Fan with Removeable Dust Filter
• Fan Bearing: Fluid / Hydraulic Bearing
• Noise: <50dB
• Max Certification: Bronze
• Efficiency: 80+ Bronze
• MTBF: "100,000 hours @ 25°C"
• Protection: "OVP, OCP, OTP, OPP, SOP "
• Package Contents: Power Supply
  User Manual
  Screws + Cable Tie
• Weight/Dimensions: 1.76 kg
  (LxWxH) 160 x 150 x 86 mm

• Package Weight: To be confirmed
• Package Dimensions: 6pcs carton (LxWxH): 610 x 440 x 220 mm
  1pcs carton (LxWxH): 295 x 200 x 140 mm
• Warranty: 2 Years
• #Hide#ATX 3.1/3.0: ATX 3.1

Warranty: Backed by a 2-year manufacturer warranty for peace of mind.
