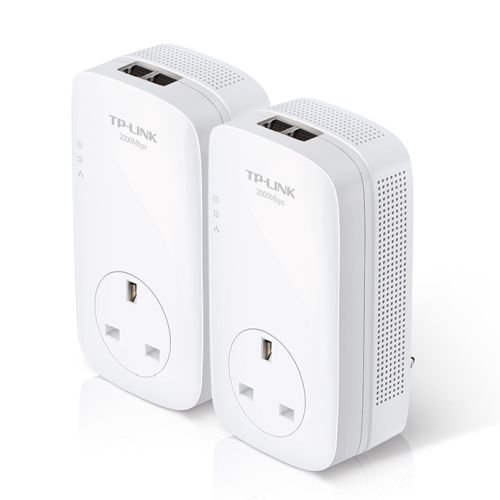

TP-LINK TL-PA9020P AV2000 Powerline Adapter Kit

The TP-LINK TL-PA9020P Kit delivers high-speed internet connectivity through your home's existing electrical wiring. This AV2000 powerline adapter kit provides data transfer rates up to 2000Mbps, making it suitable for bandwidth-intensive applications including 4K streaming, online gaming, and large file transfers.

Key Features

HomePlug AV2 Standard with 2X2 MIMO: The adapter utilizes HomePlug AV2 technology combined with 2X2 MIMO and Beamforming to establish multiple simultaneous connections. This configuration delivers higher powerline speeds and improved network stability, particularly during peak usage hours.

Dual Gigabit Ethernet Ports: Each adapter includes 2 Gigabit Ethernet ports, enabling wired connections for smart TVs, gaming consoles, desktop computers, and network-attached storage devices. These ports support full Gigabit speeds for maximum performance.

Integrated AC Pass-Through Socket: The built-in power socket ensures you don't lose an electrical outlet when using the adapter. You can plug other devices directly into the adapter while maintaining powerline connectivity.

Simple Setup: The plug-and-play design requires no configuration. Connect one adapter to your router and plug the second adapter into any electrical outlet in your home. Press the pair button to establish a secure 128-bit encrypted connection.

Energy Efficient Operation: The patented Power-Saving Mode automatically reduces power consumption by up to 85% when the adapter detects no network activity, lowering your energy costs without manual intervention.

Performance Specifications

The TL-PA9020P supports a range of up to 300 meters within your home's electrical system. It operates on OFDM modulation technology and complies with HomePlug AV2, HomePlug AV, and IEEE 1901 standards. Power consumption reaches a maximum of 5.8W during operation and drops to 0.5W in standby mode.

Technical Specifications

• Kit/Single: Kit
• Wireless: No
• Wired Transfer Rate: 2000 Mbps
• Standards and Protocols: HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Interface(s): 2 x Gigabit Ethernet Port
• AC Pass Through: Yes
• Button(s): Pair
• LED: Power, Powerline, Ethernet
• Power Consumption: Maximum: 5.8 W (230V/50Hz), Standby: 0.5 W (230V/50Hz)
• Range: 300 meters in house
• Modulation Technology: OFDM
• Encryption: 128-bit
• Environment: Operating Temperature: 0°C-40°C (32°F-104°F), Storage Temperature: -40°C-70°C (-4°F-158°F), Operating Humidity: 10%-90% non-condensing, Storage Humidity: 5%-90% non-condensing
• Package Contents: AV2000 2-port Gigabit Passthrough Powerline Adapter TL-PA9020P, 2-meter RJ-45 Ethernet Cable, Quick Installation Guide
• Package Type: Retail
• Package Weight: 0.9600 kg
• Warranty: 3 Years
