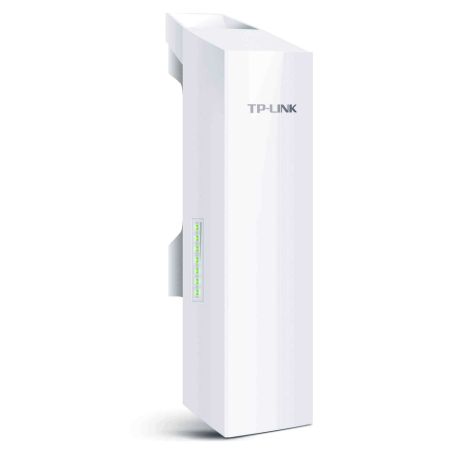

TP-LINK CPE210 - Long Range Outdoor Wireless Access Point

The TP-LINK CPE210 is a professional-grade outdoor wireless access point designed for long-distance wireless transmission exceeding 5km. Built with enterprise-level Qualcomm Atheros chipsets and a weatherproof enclosure, this 2.4GHz 300Mbps device delivers reliable connectivity in harsh outdoor environments.

High-Performance Wireless Transmission

Equipped with a built-in 9dBi dual-polarized directional MIMO antenna, the CPE210 provides exceptional signal strength and range. The adjustable transmission power ranges from 0 to 27dBm (500mw), while high sensitivity reception up to -95dBm ensures stable connections over long distances. The dedicated metal reflection design minimizes noise interference for cleaner signal transmission.

Weatherproof Industrial Design

Engineered for outdoor deployment, the CPE210 operates reliably in extreme temperatures from -30°C to 70°C (-22°F to 158°F). The industrial-grade weatherproof enclosure protects against rain, snow, wind, and direct sunlight. Enhanced protection includes 15KV ESD protection and 6000V lightning protection through both the grounding terminal and PoE adapter.

Flexible Operation Modes

The CPE210 supports multiple operation modes including Access Point, Client, Repeater, AP Router, and AP Client Router (WISP), making it adaptable for point-to-point, point-to-multipoint, and outdoor Wi-Fi coverage applications. The MAXtream TDMA technology optimizes throughput, capacity, and latency performance, particularly beneficial for point-to-multipoint deployments.

Centralized Management with Pharos Control

Manage your entire network from a single interface using the included Pharos Control software. This centralized management system enables device discovery, status monitoring, firmware upgrades, and network maintenance across all connected devices. The PharOS web-based interface provides professionals with granular configuration options.

Convenient PoE Deployment

The included passive PoE adapter supports power delivery up to 60 meters (200 feet) over Ethernet cable, simplifying installation in remote locations. The remote reset functionality allows administrators to reboot the device without physical access, reducing maintenance requirements.

Technical Specifications

The CPE210 features IEEE 802.11b/g/n wireless standards, a 10/100Mbps shielded Ethernet port, and comprehensive security including WPA/WPA2 encryption, MAC address filtering, and multi-SSID support with VLAN tagging. The 65-degree horizontal and 35-degree vertical beam width provides focused directional coverage for optimal performance.

Description

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Wireless Standard: 802.11n (Wi-Fi 4)
• Bands: Single Band
• Wi-Fi Rating: N300
• Max Single Band Wi-Fi Rate: 300 Mbps
• Max Wired Transfer Rate: 10/100 Mbps
• Interface(s): "1 x 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
  1 x Grounding Terminal
  1 x Reset Button"
• Wireless Standards: IEEE 802.11b/g/n (with Pharos MAXtream disabled)
• Antenna(s): 9dBi 2x2 Dual-polarized Directional Antenna
  Beam Width: 65 degree (H-Plane) / 35 degree (E-Plane)
• Protection: 15KV ESD Protection
  6000V Lightning Protection
• Button(s): Remote Reset Button
• Power Supply: Passive Power over Ethernet via LAN0
  Voltage range: 16-27VDC
• Power Consumption: 10.5 Watts Max
• Dimensions: 224 x 79 x 60 mm
• Weatherproof: Yes (Weatherproof)
• Frequency: 2.4~2.483GHz
• Reception Sensitivity: See manufacturers link (next to product images)
• Security: "WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
  SSID Broadcast Enable/Disable
  Multi-SSID with VLAN Tagging (AP mode only)
  Distance/ACK Timeout Setting
  Wireless MAC Address Filter"
• Wireless Range: System-level optimizations for more than 5km
• Management: Discovery and Remote Management
  HTTP/HTTPS Web-based management
  System Log
  SNMP Agent(v2c)
  Ping Watch Dog
  Dynamic DDNS
  SSH Server
• Additional Features: See manufacturers link (next to product images)
• Package Contents: Outdoor Wireless CPE
  24V 1A Passive PoE Adapter
  Pole Mounting Straps
  AC Power Cord
  Installation Guide
• Package Type: Retail
• Package Weight: 0.7900 kg
• Warranty: 2 Years
