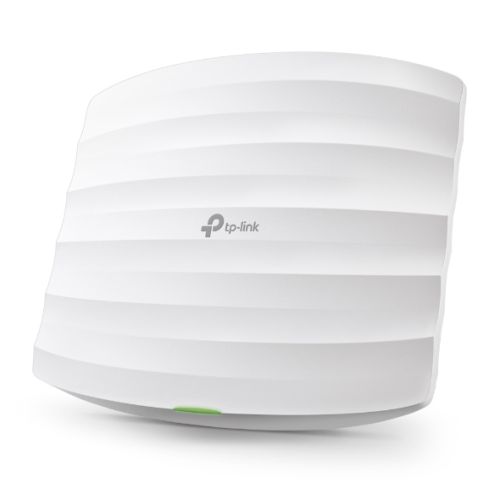

TP-Link EAP225 Omada AC1350 Wireless Ceiling Mount Access Point

The TP-Link EAP225 delivers professional-grade wireless connectivity with AC1350 dual-band speeds, combining 450Mbps on 2.4GHz and 867Mbps on 5GHz for total throughput of 1317Mbps. Built with 802.11ac Wave 2 MU-MIMO technology, this ceiling mount access point handles multiple simultaneous connections efficiently, making it ideal for high-density business environments.

Enterprise-Grade Performance with MU-MIMO Technology

Equipped with MU-MIMO (Multi-User Multiple Input Multiple Output), the EAP225 simultaneously transfers data to multiple devices rather than sequentially, significantly reducing wait times and improving overall network efficiency. Beamforming technology concentrates wireless signals directly toward connected devices, ensuring stable connections throughout your coverage area. Band Steering automatically directs dual-band capable devices to the less congested 5GHz frequency for optimal performance.

Flexible Power and Simple Deployment

Supporting both 802.3af/at PoE and 24V Passive PoE (adapter included), the EAP225 offers flexible installation options without requiring nearby electrical outlets. The single Gigabit Ethernet port provides full-speed wired backhaul, eliminating bottlenecks. With a power consumption of just 10.5W and compact dimensions of 205.5 x 181.5 x 37.1mm, this access point integrates seamlessly into any ceiling installation.

Omada Centralized Management Platform

Manage hundreds of EAP225 units from a single interface using the free Omada Controller software, Omada app, hardware controllers (OC200/OC300), or cloud-based controller. Features include zero-touch provisioning, multi-site management, L3 management, and remote monitoring via email alerts. Configure wireless schedules, automatic reboots, and detailed statistics tracking for SSIDs, APs, and individual clients.

Advanced Security and Guest Access

The EAP225 supports captive portal authentication with SMS and Facebook Wi-Fi integration, perfect for customer-facing businesses. Security features include 802.1X authentication, wireless MAC filtering, rogue AP detection, client isolation, SSID-to-VLAN mapping, and access control. Configure up to 16 SSIDs (8 per band) with individual security policies and guest network isolation.

Seamless Roaming and Mesh Capabilities

Omada Mesh Technology enables wireless connections between access points for extended coverage without additional cabling. Seamless roaming ensures uninterrupted video streams and voice calls as users move between coverage zones. Load balancing distributes clients evenly across multiple APs, while Airtime Fairness prevents slower devices from monopolizing bandwidth.

Built for Business Environments

Engineered for heavy multi-user environments including hotels, retail chains, schools, restaurants, and offices, the EAP225 handles high-density deployments without the stability issues of consumer-grade equipment. Internal antennas (3x 4dBi at 2.4GHz, 2x 5dBi at 5GHz) provide reliable coverage. Operating temperature range of 0-40°C and humidity tolerance of 10-90% non-condensing ensure reliable performance in varied conditions.

Description

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Wireless Standard: 802.11ac (Wi-Fi 5)
• Bands: Dual Band
• Wi-Fi Rating: AC1350
• Max Single Band Wi-Fi Rate: 867 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): 1 x Gigabit Ethernet (RJ-45) Port
• Wireless Standards: IEEE 802.11ac/n/g/b/a
• Antenna(s): Internal Antenna:
  2.4 GHz: 3x 4 dBi
  5 GHz: 2x 5 dBi
• Button(s): Reset
• Power Supply: "802.3af/at PoE
  24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)"
• Power Consumption: 10.5 W
• Dimensions: 205.5 x 181.5 x 37.1 mm
• Weatherproof: No
• Frequency: 2.4GHz and 5GHz
• Wireless Functions: "Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  Enable/Disable Wireless Radio
  Automatic Channel Assignment
  Transmit Power Control (Adjust Transmit Power on dBm)
  QoS(WMM)
  Band Steering
  Load Balance
  MU-MIMO
  Airtime Fairness
  Beamforming"
• .: "Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  Enable/Disable Wireless Radio
  Automatic Channel Assignment
  Transmit Power Control (Adjust Transmit Power on dBm)
  QoS(WMM)
  Band Steering
  Load Balance
  MU-MIMO
  Airtime Fairness
  Beamforming"
• Security: Captive Portal Authentication
  Access Control
  Wireless Mac Address Filtering
  Wireless Isolation Between Clients
  SSID to VLAN Mapping
  Rogue AP Detection
  802.1X Support
• Management: "Omada App
  Omada Hardware Controllers - OC300 & OC200
  Omada Software Controller
  Omada Cloud-Based Controller
  EAP Controller Software
  Email Alerts
  LED ON/OFF Control
  Management MAC Access Control
  SNMP v1,v2c
  Local/Remote Syslog
  Telnet
  SSH
  HTTP/HTTPS
  L3 Management
  Multi-site Management
  Management VLAN
  Zero-Touch Provisioning"
• Environment: Operating Temperature: 0C~40C (32F~104F)
  Storage Temperature: -40C~70C (-40F~158F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: Access Point EAP225
  Passive PoE Adapter
  Power Cord
  Ceiling and Wall Mounting Kits
  Installation Guide
• Package Type: Retail
• Package Weight: 0.9600 kg
• Warranty: Limited Lifetime
