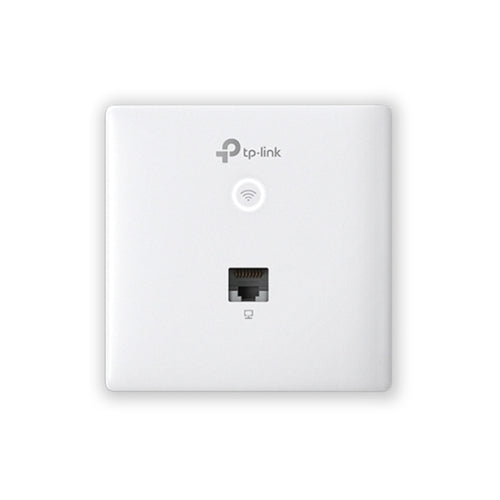

Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point


• Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†
• Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
• Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.
• Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Description

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Wireless Standard: 802.11ac (Wi-Fi 5)
• Bands: Dual Band
• Wi-Fi Rating: AC1200
• Max Single Band Wi-Fi Rate: 867 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): Uplink: 1 x 10/100/1000 Mbps Ethernet Port
  Downlink: 1 x 10/100/1000 Mbps Ethernet Port
• Wireless Standards: IEEE 802.11n/g/b/ac
• Antenna(s): 2.4 GHz: 2 x 4 dBi
  5 GHz: 2 x 3.6 dBi
• Button(s): "LED/Wi-Fi Button, RESET"
• Power Supply: 802.3af/802.3at PoE
• Power Consumption: 7 W
• Dimensions: 86.8 x 86.8 x 30.2 mm
• Weatherproof: No
• Frequency: 2.4GHz: 300 Mbps
  5GHz: 867 Mbps
• Wireless Functions: 16 SSIDs (Up to 8 SSIDs on each band)
  Enable/Disable Wireless Radio
  Automatic Channel Assignment
  Transmit Power Control (Adjust Transmit Power on dBm)
  QoS(WMM)
  Load Balance
  Rate Limit
  Reboot Schedule
  Wireless Schedule
  Wireless Statistics based on SSID/AP/Client
  MU-MIMO
  Band Steering
  Beamforming
• Security: "Captive Portal Authentication
  Access Control
  Wireless Mac Address Filtering
  Wireless Isolation Between Clients
  SSID to VLAN Mapping
  Local LAN port based VLAN
  Rogue AP Detection
  802.1X Support
  64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK"
• Management: "Omada App
  Omada Cloud-Based Controller
  Omada Hardware & Software Controller
  Cloud Access
  Email Alerts
  LED ON/OFF Control
  MAC Access Control
  SNMP v1,v2c
  Local/Remote Syslog
  SSH
  HTTP/HTTPS
  L3
  Multi-site Management
  Management VLAN"
• Additional Features: See Overview
• Environment: Operating Temperature: 0C~40C (32F~104F)
  Storage Temperature: -40C~70C (-40F~158F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: Omada AC1200 Gigabit Wall-Plate Access Point
  Installation Guide
  Mounting Screw
• Package Type: Retail
• Package Weight: 0.2160 kg
• Warranty: Limited Lifetime
