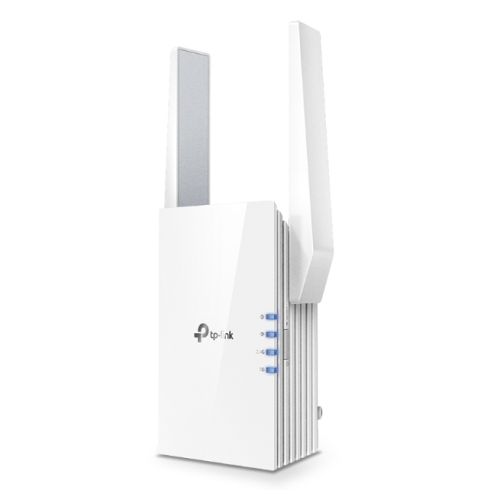

TP-Link RE505X AX1500 Wi-Fi 6 Range Extender

The TP-Link RE505X delivers Wi-Fi 6 technology in a compact wall-plug design, extending your wireless network coverage with speeds up to 1500 Mbps (300 Mbps on 2.4GHz + 1200 Mbps on 5GHz). This dual-band range extender eliminates dead zones and provides reliable connectivity throughout your home.

Wi-Fi 6 Technology for Modern Connectivity

Built with 802.11ax wireless standard, the RE505X supports the latest Wi-Fi 6 protocol, delivering faster speeds, increased capacity, and reduced network congestion compared to previous generations. The dual-band configuration ensures optimal performance whether you're streaming 4K content, gaming online, or connecting multiple smart home devices simultaneously.

OneMesh Compatible for Seamless Roaming

When paired with a TP-Link OneMesh router, the RE505X creates a unified mesh network with a single Wi-Fi name. This allows your devices to automatically connect to the strongest signal as you move throughout your home, without manual switching between networks.

Gigabit Ethernet Port for Wired Connections

The integrated gigabit ethernet port supports wired speeds up to 1000 Mbps, perfect for connecting bandwidth-intensive devices like smart TVs, gaming consoles, or desktop computers that benefit from stable wired connections.

Dual Operating Modes

Range Extender Mode: Wirelessly connects to your existing router to boost Wi-Fi coverage in hard-to-reach areas.

Access Point Mode: Converts a wired ethernet connection into a dual-band wireless access point, ideal for adding Wi-Fi capability to wired networks.

Intelligent Setup and Management

The intelligent signal light indicator helps you find the optimal placement location by displaying signal strength in real-time. Setup is simplified through the TP-Link Tether app, available for iOS and Android, allowing you to manage network settings from your mobile device. WPS button support enables one-touch wireless connection with compatible routers.

Advanced Features

• Adaptive Path Selection: Automatically chooses the fastest connection path to your router for optimal performance
• High Speed Mode: Utilizes both Wi-Fi bands simultaneously for maximum throughput during HD streaming and gaming
• Universal Compatibility: Works with any standard Wi-Fi router or wireless access point
• Security: Supports 64/128-bit WEP and WPA/WPA2-PSK encryption protocols

Compact Wall-Plug Design

Measuring just 74.0 x 46 x 124.8 mm with 2 external antennas, the RE505X plugs directly into a standard wall outlet without requiring additional cables or desk space. The compact form factor makes it ideal for any room while maintaining powerful wireless performance.

Technical Specifications

• Wireless Standards: IEEE 802.11a/n/ac/ax (5GHz), IEEE 802.11b/g/n (2.4GHz)
• Maximum Speeds: 1200 Mbps (5GHz) + 300 Mbps (2.4GHz)
• Ethernet Port: 1x Gigabit (10/100/1000 Mbps)
• Power Consumption: 10W
• Warranty: 3 Years

Package includes the RE505X range extender and quick installation guide. Compatible with all standard routers and wireless access points.
