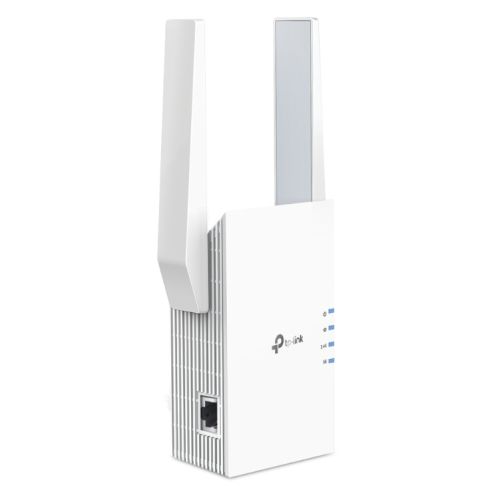

TP-LINK RE705X AX3000 WiFi 6 Range Extender

The TP-LINK RE705X delivers AX3000 WiFi 6 performance with dual band speeds up to 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz. This wall-plug range extender eliminates WiFi dead zones throughout your home with advanced WiFi 6 technology and EasyMesh compatibility.

WiFi 6 Technology for Maximum Performance

Built with 802.11ax WiFi 6 standard, the RE705X provides 25% faster data throughput compared to previous generation WiFi thanks to 1024-QAM. The 2x2 160MHz channel support on the 5GHz band delivers wider bandwidth and faster speeds than traditional 80MHz configurations. Four high-performance amplifiers ensure strong signal coverage to hard-to-reach areas.

EasyMesh Compatible Whole Home Coverage

Create a seamless mesh WiFi network by pairing the RE705X with any EasyMesh-compatible router. Experience smart roaming with uninterrupted streaming as you move throughout your home, all under one WiFi name. Add multiple units to eliminate dead zones and expand coverage across multiple floors.

Dual Functionality: Range Extender and Access Point

The RE705X functions as both a range extender and access point. In AP mode, connect an Ethernet cable to the gigabit Ethernet port to transform your wired connection into a 2x2 MU-MIMO dual band wireless access point. The gigabit Ethernet port also provides high-speed wired connections for smart TVs, gaming consoles, and PCs.

Advanced WiFi 6 Features

OFDMA technology integrates data from multiple devices for higher efficiency and lower latency. Beamforming technology targets signal strength directly to your devices for stronger, more reliable connections. Adaptive Path Selection automatically chooses the fastest connection path to your router, keeping your network running at optimal speed.

Flexible Coverage Control

Adjust WiFi coverage through the TP-Link Tether app with three strength levels. Focus coverage on a single room or blanket an entire floor based on your needs. The app provides easy setup and complete network management for all TP-Link routers and range extenders from your Android or iOS device.

Technical Specifications

The RE705X features two external antennas, WPS and reset buttons, and a compact wall-plug design measuring 97 x 46 x 158mm. Power consumption is 12.6W with 100-240V~50/60Hz support. Security protocols include WEP, WPA, WPA2, and WPA3. Operating temperature range is 0°C to 40°C with 10-90% non-condensing humidity tolerance.

Backed by a 3-year warranty, the RE705X includes quick installation guide and supports DFS, access control, LED control, power schedule, and adjustable WiFi coverage settings.

Specification

• Primary Function: Range Extender
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Range Extender Mode: Yes (Range Extender Mode)
• #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
• Bands: Dual Band
• Wi-Fi Rating: AX3000
• Max Single Band Wi-Fi Rate: 2402 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): 1 x Gigabit Ethernet Port
• Wireless Standards: "IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz"
• Antenna(s): 2 External Antennas
• Button(s): "WPS Button, Reset Button"
• Power Supply: Wall Plug
  100-240V~50/60Hz
• Power Consumption: 12.6W
• Dimensions: (WxDxH) 97 x 46 x 158 mm
• Weatherproof: No
• Frequency: 2.4GHz: 574 Mpbs
  5GHz: 2402 Mbps
• Reception Sensitivity: 5GHz:
  11a 6Mbps:-97dBm
  11a 54Mbps:-78dBm
  11ax HE20 MCS0: -97dBm
  11ax HE20 MCS11: -66dBm
  11ax HE40 MCS0: -94dBm
  11ax HE40 MCS11: -62dBm
  11ax HE80 MCS0: -91dBm
  11ax HE80 MCS11: -61dBm
  11ax HE160 MCS11: -59dBm

  2.4GHz:
  11g 6Mbps:-96dBm
  11g 54Mbps:-78dBm
  11ax HE20 MCS0: -95dBm
  11ax HE20 MCS11: -66dBm
  11ax HE40 MCS0: -93dBm
  11ax HE40 MCS11: -62dBm
• Wireless Modes: Range Extender / Access Point
• Wireless Functions: Enable/Disable Wireless Radio
  DFS (the latest firmware and hardware version is required)
  Access Control
  LED Control
  Power Schedule
  Wi-Fi Coverage
• Additional Features: "WEP, WPA, WPA2, WPA3"
• Environment: Operating Temperature: 0°C~40°C (32°F ~104°F)
  Storage Temperature: -40°C~70°C (-40°F ~158°F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: Wi-Fi Range Extender RE705X
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 0.4600 kg
• Warranty: 3 Years
