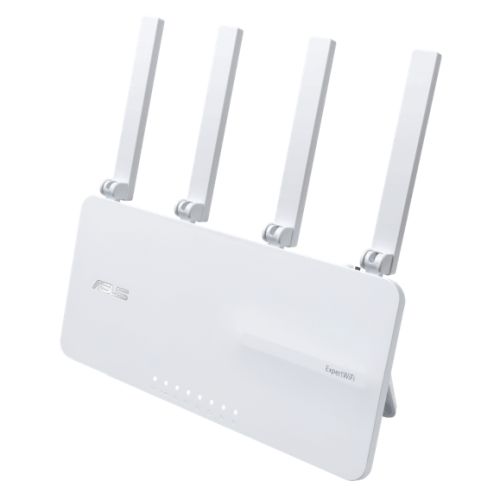

ASUS ExpertWiFi EBR63 AX3000 WiFi 6 Business Access Point

The ASUS ExpertWiFi EBR63 delivers enterprise-grade networking for small to mid-sized businesses in a single device. This AX3000 dual-band WiFi 6 router combines access point, router, switch, and security gateway functionality, eliminating the need for multiple networking devices and reducing infrastructure costs.

WiFi 6 Performance for Business Networks

With WiFi 6 (802.11ax) technology, the EBR63 provides speeds up to 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz bands. The router supports up to 100 active devices simultaneously, utilizing OFDMA and MU-MIMO technology to maintain stable connections during high-demand periods. Four external antennas with beamforming ensure reliable coverage across your workspace.

Business-Grade Network Segmentation

Self-Defined Networks (SDN) enable up to 5 separate SSIDs for complete network segregation. VLAN support allows you to dedicate specific Ethernet ports and wireless networks for employees, guests, IoT devices, and VPN connections. This segmentation enhances security while prioritizing critical business traffic through Adaptive QoS.

Customizable Guest Portal System

Create branded guest portals with custom templates that match your business identity. The guest portal system allows you to control access, collect customer data, and provide seamless WiFi for visitors without compromising your internal network security.

Dual WAN and Backup Connectivity

The EBR63 features dual WAN capability with automatic failover protection. Connect a mobile hotspot to the USB 3.2 Gen 1 port for instant backup internet access when your primary connection fails. This ensures business continuity without complex configuration.

Commercial Security and VPN

ASUS AiProtection Pro powered by Trend Micro provides enterprise-level threat protection at no subscription cost. The router supports comprehensive VPN protocols including WireGuard, OpenVPN, IPSec, PPTP, and L2TP for both client and server configurations. Site-to-site VPN capability connects multiple business locations securely over the internet.

Centralized Management

The ASUS ExpertWiFi mobile app enables remote management of all network devices from a single administrator account. Monitor network activity, configure settings, and manage up to 12 connected ExpertWiFi nodes across multiple locations. The Scenario Explorer guides you through initial setup with pre-configured templates for common business environments.

Flexible Installation Options

The EBR63 includes a built-in adjustable bracket and wall-mount holes for versatile placement. Measuring 225 x 127 x 146 mm, the compact design fits into tight spaces while the integrated cable management system maintains a clean appearance.

Scalable Network Infrastructure

Start with a single EBR63 and expand your network as your business grows. AiMesh compatibility allows seamless integration with other ASUS ExpertWiFi devices, supporting up to 12 nodes for comprehensive coverage across larger facilities.

Description

Specification

• Type: Cable Router
• Connectivity: Wireless
• Wi-Fi Rating: AX3000
• Max Single Band Wi-Fi Rate: 2402 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Bands: Dual Band
• Signal Rate: 2.4GHz: up to 574 Mbps
  5 GHz: up to 2402 Mbps
• Interface(s): 1 x RJ45 for Gigabits BaseT for WAN
  4 x RJ45 for Gigabits BaseT for LAN
  1 x USB 3.2 Gen 1
  1 x USB2.0
• Standards: IEEE 802.11a
  IEEE 802.11b
  IEEE 802.11g
  WiFi 4 (802.11n)
  WiFi 5 (802.11ac)
  WiFi 6 (802.11ax)
  IPv4
  IPv6
• Frequency: 2.4G Hz & 5 GHz
• Button(s): "WPS Button, Reset Button, Power Switch"
• Power Supply: AC Input: 110V~240V(50~60Hz)
  DC Output: 12V with max. 2A current
• Antenna(s): 4 x External Antennas
• Dimensions: 225 x 127 x 146 mm
• Wireless Functions: Wireless Router Mode
  AiMesh Node Mode
  Access Point Mode
  AiMesh
  OFDMA (Orthogonal Frequency Division Multiple Access)
  Beamforming: standard-based and universal
  1024-QAM high data rate
  20/40/80/160 MHz bandwidth
  Self-Defined Network
  Adaptive QoS
  MU-MIMO
  UTF-8 SSID
  WiFi MAC Address Filter (Max 64)
  Wireless Scheduler
• Security: AiProtection
  VPN
  WPS
  Lets Encrypt
  DNS-over-TLS
  SSH
  Firewall
• DHCP: DHCP Server
• Port/NAT Forwarding: Port Forwarding
• VPN Support: VPN Client L2PT
  VPN Client Open VPN
  VPN Client PPTP
  VPN Client WireGuard
  VPN Server IPSec
  VPN Server Open VPN
  VPN Server PPTP
  VPN Server WireGuard
  VPN Fusion
  Support Surfshark
• Management: Web: ASUSWRT
  App: ASUS ExpertWiFi APP
• Dynamic DNS: DDNS
• USB Application: 4G / 5G Auto Mobile Tethering
  Media Server
  Samba Server
  FTP Server
  Shared Folder Privileges
• Additional Features: See Overview
• Package Contents: ExpertWiFi EBR63
  RJ45 Ethernet Cable
  Power Adapter
  Quick Start Guide
  Warranty Card
• Package Type: Retail
• Package Weight: 0.4400 kg
• Warranty: 3 Years
• #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
• #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
