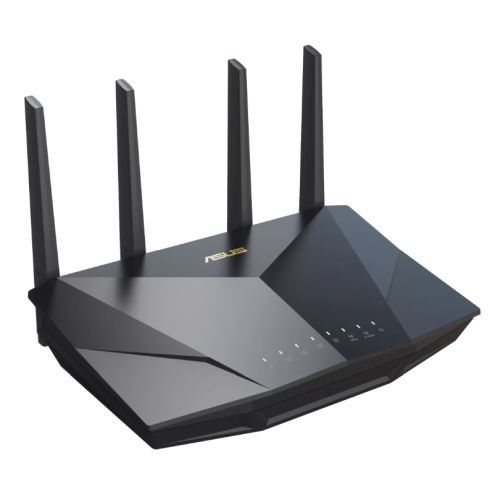

ASUS RT-AX5400 WiFi 6 Router with Advanced Security and VPN

The ASUS RT-AX5400 delivers WiFi 6 performance with speeds up to 5,400 Mbps across dual bands (574 Mbps on 2.4GHz, 4804 Mbps on 5GHz). This router handles multiple devices simultaneously with MU-MIMO technology and increased network capacity for smart homes and small offices.

WiFi 6 Performance and Connectivity

Four non-detachable external antennas provide reliable wireless coverage, while the router supports IEEE 802.11a/b/g/n/ac/ax standards for backward compatibility with older devices. The RT-AX5400 features WAN aggregation for bonded speeds up to 2 Gbps, plus four Gigabit LAN ports and one USB 3.2 Gen 1 port for network storage and printer sharing.

Comprehensive VPN Capabilities

Built-in VPN support includes OpenVPN, WireGuard, PPTP, L2TP, and IPSec protocols. VPN Fusion allows simultaneous VPN and regular internet connections on different devices. The ASUS Instant Guard mobile app provides one-tap secure VPN access to your home network when using public WiFi, with easy sharing via URL links.

Network Security with AiProtection Pro

Powered by Trend Micro, AiProtection Pro offers commercial-grade security with automatic updates, malicious site blocking, two-way intrusion prevention, and infected device detection. WPA3-Personal encryption provides the latest wireless security standard. ASUS Safe Browsing uses DNS-based filtering to block inappropriate content without affecting router performance.

Advanced Parental Controls

Monitor online activity, set customized internet schedules, and configure age-appropriate content filters for each connected device. Grant or restrict access with one-click scheduling, with no subscription fees required.

AiMesh Whole-Home WiFi

Expand coverage by adding any AiMesh-compatible ASUS router to create a seamless mesh network. Eliminate dead zones with centralized control and automatic device roaming between nodes.

Easy Management

Configure and monitor your network via the ASUS Router mobile app with complete VPN settings, parental controls, and connection diagnostics. The web GUI dashboard provides advanced options including QoS settings, port management, and traffic monitoring.

Technical Specifications

The RT-AX5400 supports IPv6, airtime fairness, beamforming, and up to 64 MAC address filters. Guest networks allow up to six separate SSIDs (2x 2.4GHz, 4x 5GHz) with customizable access controls. USB applications include AiCloud, download master, media server, Time Machine backup, and Samba/FTP server support for HFS+, NTFS, vFAT, ext2/3/4 file systems.

Package includes RT-AX5400 router, RJ-45 cable, power adapter (19V/1.75A), quick start guide, and 3-year warranty.

• Type: Cable Router
• Connectivity: Wireless
• Wi-Fi Rating: AX5400
• Max Single Band Wi-Fi Rate: 4804 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Bands: Dual Band
• Signal Rate: 2.4 GHz: 574Mbps
  5 GHz: 4804Mbps
• Interface(s): 1 x RJ45 for Gigabits BaseT for WAN
  4 x RJ45 for Gigabits BaseT for LAN
  1 x USB 3.2 Gen 1
• Standards: IEEE 802.11a
  IEEE 802.11b
  IEEE 802.11g
  WiFi 4 (802.11n)
  WiFi 5 (802.11ac)
  WiFi 6 (802.11ax)
• Frequency: 2.4 GHz and 5 GHz
• Button(s): WPS Button, Reset Button, Power Switch
• Power Supply: AC Input : 110V~240V(50~60Hz)
  DC Output : 19 V with max. 1.75 A current
• Antenna(s): 4 x external antenna (non-detachable)
• Wireless Functions: IPv6
  MU-MIMO
  UTF-8 SSID
  WPS
  WiFi MAC address filter
  Maximum MAC filters : 64
  Wireless scheduler
  Airtime fairness
  RADIUS Client
  Universal beamforming
  Explicit beamforming
• Security: Wi-Fi Encryption:
  WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support

  AiProtection Pro:
  Malicious site blocking
  Two-Way IPS
  Infected Device Prevention and Blocking

  Parental Control:
  Parental Control Customized Internet schedule

  Guest Network:
  Max rule : 2.4GHz x2, 5GHz x4
  Connection time limit
  Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
• DHCP: DHCP Server
• Port/NAT Forwarding: Port forwarding
  Maximum port forwarding rule : 64
• VPN Support: Instant Guard
  VPN Client L2TP
  VPN Client OVPN
  VPN Client PPTP
  VPN Client WireGuard
  VPN Server IPSec
  VPN Server OVPN
  VPN Server PPTP
  VPN Server WireGuard
  VPN Fusion
• Management: ASUS Router APP
• Dynamic DNS: DDNS
• USB Application: File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
  3G/4G LTE dongle
  Safely Remove disk
  AiCloud
  Download master
  AiDisk
  Media Server
  Time Machine
  Samba Server
  FTP Server
  Shared Folder privileges
• Package Contents: RT-AX5400 WiFi router
  RJ-45 cable
  Power adapter
  Quick Start Guide
  Warranty card
• Package Type: Retail
• Package Weight: 1.2100 kg
• Warranty: 3 Years
• #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
• #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
