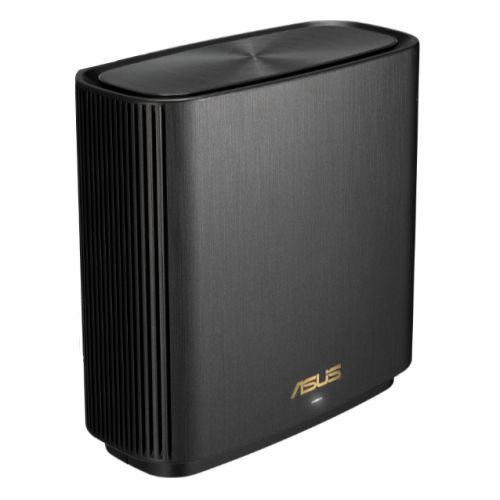

ASUS ZenWiFi XT9 AX7800 Tri-Band WiFi 6 Mesh System

The ASUS ZenWiFi XT9 delivers professional-grade wireless networking with AX7800 tri-band WiFi 6 technology. Featuring a flagship Broadcom WiFi 6 chipset and ASUS RangeBoost Plus, this mesh system provides expansive coverage up to 5700 square feet with up to 38% improved signal range compared to previous generation routers.

High-Performance Connectivity

Equipped with tri-band technology, the ZenWiFi XT9 delivers combined speeds up to 7800 Mbps across three bands: 574 Mbps on 2.4GHz, 2402 Mbps on the first 5GHz band, and 4804 Mbps on the second 5GHz band. The 2.5Gbps WAN port enables full utilization of multi-gigabit internet plans, while LAN aggregation supports up to 2Gbps wired speeds for compatible devices.

Flexible Backhaul Configuration

Choose between wireless or wired Ethernet backhaul connections, or let the system automatically select the optimal configuration. The dedicated 5GHz band can serve as wireless backhaul, while Gigabit Ethernet ports provide wired backhaul options for maximum stability and performance in multi-node deployments.

Advanced Security Features

AiProtection Pro powered by Trend Micro provides comprehensive network security with malicious site blocking, two-way IPS, and infected device prevention. WPA3 encryption ensures the latest wireless security standards. The built-in Instant Guard feature creates encrypted VPN tunnels for secure remote access without third-party subscriptions.

Network Management

The ASUS Router mobile app simplifies setup and ongoing management with an intuitive interface. Voice control integration works with Alexa and Google Assistant for hands-free operation. Advanced features include customizable parental controls with internet scheduling, guest network management with up to 9 separate networks, and comprehensive VPN support including WireGuard, OpenVPN, and IPSec protocols.

Technical Specifications

Six internal antennas provide optimal coverage patterns. The USB 3.2 Gen 1 port enables network storage functionality with support for multiple file systems including NTFS, HFS+, and ext4. AiCloud, Download Master, and Time Machine support extend functionality. The system supports IPv6, universal beamforming, and airtime fairness for optimal multi-device performance.

Package Contents

Includes ZenWiFi XT9 unit, RJ-45 cable, power adapter (110V-240V input, 12V 3A output), warranty card, and quick start guide. Backed by a 3-year manufacturer warranty.
