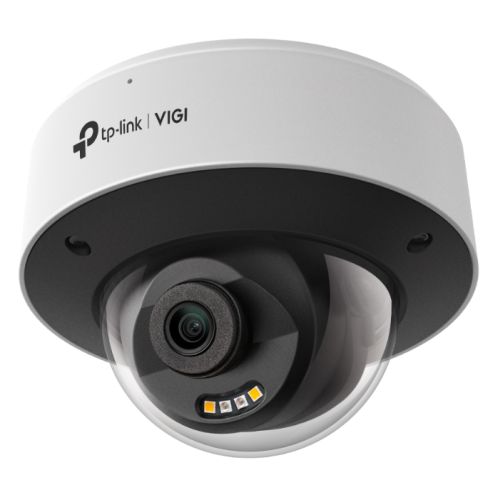

TP-Link VIGI 8MP Full-Color Outdoor Dome Network Camera

The TP-Link VIGI S285 delivers professional-grade surveillance with 4K (8MP) Ultra HD resolution and 24-hour full-color imaging. Equipped with a 2.8mm fixed focal lens providing a 110° horizontal field of view, this dome camera captures comprehensive coverage with exceptional clarity at 3840x2160 resolution.

Advanced AI Detection and Classification

Intelligent analytics distinguish between people and vehicles, reducing false alarms and enabling precise monitoring. Smart detection features include intrusion alerts, line-crossing detection, region monitoring, loitering detection, and abnormal sound recognition. Motion detection is enhanced with human and vehicle classification for targeted surveillance.

Superior Image Quality and Night Vision

The 1/2.7" progressive scan CMOS sensor delivers minimum illumination of 0.005 Lux, ensuring clear footage in low-light conditions. Two 850nm IR LEDs provide 30m night vision range, while full-color night vision maintains vibrant imaging in complete darkness. The F1.6 aperture and IR cut filter optimize day-to-night transitions automatically.

Rugged Outdoor Construction

IP67 waterproof rating and IK10 vandal-proof certification ensure reliable operation in temperatures from -30°C to 60°C. The durable housing withstands harsh weather conditions and physical tampering, making it ideal for demanding outdoor installations.

Active Defense and Two-Way Audio

Built-in microphone captures audio within a 5-meter radius, while two-way audio enables real-time communication. Active defense features include audible warnings and white light flashing to deter intruders. Audio compression at 64 Kbps with environment noise filtering ensures clear communication.

Efficient Power and Installation

PoE 802.3af/at support (max 12.3W) enables single-cable installation for both power and data transmission. Alternative 12V DC power input provides flexible deployment options. Side cable outlet allows easy routing without drilling, while adjustable pan (0-346°), tilt (0-75°), and rotation (0-355°) ensure optimal positioning.

Advanced Compression and Storage

H.265+ compression technology reduces bandwidth and storage requirements by up to 75% compared to H.264 without sacrificing image quality. Supports MicroSD cards up to 512GB for local recording. Main stream and sub-stream capabilities allow simultaneous high-quality recording and remote viewing.

Comprehensive Management Platform

Compatible with VIGI App, Web UI, VIGI VMS, and utility software for flexible monitoring. ONVIF Profile S/T/G compliance ensures integration with third-party systems. Supports 3 simultaneous main streams and 3 sub-streams. Cloud connectivity and open API enable scalable deployment across multiple locations.

Description

Specification

• #Hide#Form Factor: Dome
• Suitable for Outdoor: Yes
• Wired/Wireless: Wired
• Interface(s): "1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
  DC Power Port
  Memory Card Slot (MicroSD Card up to 512GB)"
• Image Sensor: 1/2.7" Progressive Scan CMOS
• Resolution: "Main Stream:
  3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

  Sub-Stream:
  848x480, 704x576, 640x480, 640x360, 352x288, 320x240"
• Frame Rate: "Main Stream:
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

  Sub-Stream:
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps
  If HDR is turned on, the frame rate can only support up to 20fps."
• Video Compression: Main Stream:
  H.265+/H.265/H.264+/H.264

  Sub-Stream:
  H.265/H.264
• Lens: 2.8mm Fixed Focal Lens
  Lens Mount: M12*P 0.5
  Aperture: F1.6

  DORI Distance:
  Detect: 85 m (278 ft)
  Observe: 35 m (116 ft)
  Recognize: 17 m (56 ft)
  Identify: 8 m (28 ft)
• Viewing Angle: Horizontal FOV: 110°
  Vertical FOV: 58.1°
  Diagonal FOV: 133.5°
• Pan/Tilt/Rotation: Pan: 0° to 346°
  Tilt: 0° to 75°
  Rotation: 0° to 355°
• Day/Night Mechanism: IR Cut Filter
  Day/Night Switch: Unified/ Scheduled/ Auto
• IR Working Distance: IR LED Quantity: 2
  Range: 30m
  Wavelength: 850nm
• Minimum Illumination: "0.005 Lux; 0 Lux with IR/White light"
• Video Streaming: Main Stream
  Sub-Stream
• Image Settings: Mirror
  Brightness
  Contrast
  Saturation
  Sharpness
  Exposure
  WDR
  White Balance
  Prevent Overexposure to Infrared Light
  HLC Adjustable by Client Software
• Audio Features: Two-Way Audio
  Audio Input
  Audio Output
  Audio Compression
  Audio Sampling Rate: 8KHz
  Environment Noise Filtering
  Audio Bit Rate: 64 Kbps(G.711 alaw)
  Built-in Microphone records anything within a 16.4-ft (5 m) radius
• Alarm & Event Management: "Smart Event Detection:
  Intrusion, Line-Crossing, Region Entering, Region Exiting, Object Abandoned, Object Removal, Loitering, People, Vehicle, Abnormal Sound, Scene Change

  Basic Event:
  Motion Detection (Enhanced with Human & Vehicle Classification)
  Camera Tampering
  Exception (Illegal Login)

  Alarm Linkage:
  Memory Card Video Recording
  Message Push
  Audible Warning
  White Light Flashing"
• Network: "Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS,FTP/SFTP, RTP, IPv4, IPv6, ARP

  ONVIF: Yes

  API: Open Network Video Interface (Profile S/T/G)

  Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

  Client: VIGI App, Web UI, VIGI VMS, Utility

  Cloud: Yes"
• Wireless Features: -
• Security: "Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
  IK10 Vandal-Proof"
• Management: "VIGI App, Web UI, VIGI VMS, Utility"
• Power Supply: "12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug
  PoE: 802.3af/at, class 0, Max. 12.3 W"
• Additional Features: See Overview
• Weight/Dimensions: 0.62 kg
  (LxWxH) 122 x 122 x 89 mm
• Environment: IP67 Waterproof
  Operating Temperature: -30–60 °C
  Storage Temperature: -40–60 °C
  Operating Humidity: 95% or Less (Non-Condensing)
  Storage Humidity: 95% or Less (Non-Condensing)
• Package Contents: VIGI Network Camera
  Quick Start Guide
  Waterproof Cable Attachments
  Mounting Accessories
• Package Weight: 0.8700 kg
• Warranty: 5 Years
• #Hide#Resolution: 8MP
