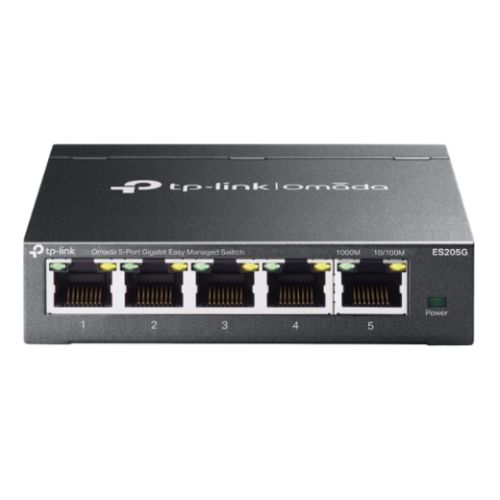

TP-LINK ES205G Omada 5-Port Gigabit Easy Managed Switch

The TP-LINK ES205G delivers enterprise-level network management in a compact 5-port configuration. This Gigabit Easy Managed Switch combines plug-and-play simplicity with advanced networking features, making it suitable for small businesses and network enthusiasts who need reliable performance without complexity.

Centralized Cloud Management

Control your network infrastructure remotely through the Omada platform. The ES205G integrates seamlessly with Omada Hardware Controller, Cloud-Based Controller, or Software Controller, enabling you to manage multiple sites from a single interface. The Omada app provides mobile access for on-the-go network administration, while Zero-Touch Provisioning simplifies device deployment across your infrastructure.

Network Performance and Reliability

With 10 Gbps switching capacity and 7.4 Mpps packet forwarding rate, the ES205G handles demanding network traffic efficiently. All five 10/100/1000Mbps RJ45 ports support AUTO Negotiation and AUTO MDI/MDIX for flexible connectivity. The 8K MAC address table and 15KB jumbo frame support ensure smooth data transmission for bandwidth-intensive applications.

Advanced Traffic Management

The switch features comprehensive Quality of Service controls including Port-based/802.1p/DSCP QoS, 8 priority queues, bandwidth control, and storm control. IGMP Snooping optimizes multicast traffic, while automatic loop prevention and loopback detection protect network integrity. VLAN support includes MTU VLAN, Port-Based VLAN, and 802.1Q Tag VLAN for network segmentation.

Layer 2 Features

Static Link Aggregation increases bandwidth and redundancy. Flow control prevents packet loss during congestion. Port mirroring enables traffic analysis and troubleshooting. The switch supports 802.1ab LLDP for device discovery and network topology mapping. Port statistics provide detailed performance monitoring.

Silent and Durable Design

The fanless design ensures completely silent operation, making the ES205G appropriate for noise-sensitive environments. The durable metal casing provides robust protection, while the desktop/wall mounting design offers flexible installation options. A physical security lock adds an extra layer of protection.

Easy Configuration and Management

The web-based GUI simplifies configuration tasks. DHCP client support enables automatic IP assignment. Cable diagnostics help identify connection issues. Batch configuration and firmware upgrading streamline management of multiple devices. Automatic device discovery detects network components instantly.

Technical Specifications

The compact 100 x 98 x 25 mm form factor minimizes desk space. The external DC power adapter (5 VDC/0.6A) keeps power consumption low. Operating temperature range of 0°C to 40°C and 10%-90% non-condensing humidity tolerance ensure reliable performance in various environments. The package includes the ES205G switch, power adapter, installation guide, and rubber feet. Backed by a Limited Lifetime warranty.

Description

Specification

• Rackmountable: No
• Managed: Yes
• Number of Ports: 5
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s): 5 x 10/100/1000 Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX
• PoE Ports (RJ45): -
• Switching Capacity: 10 Gbps
• Power Supply: External DC Power Adapter (Output: 5 VDC/ 0.6 A)
• Dimensions: 100 x 98 x 25 mm
• Mac Address Table: 8K
• Packet Forwarding Rate: 7.4 Mpps
• Jumbo Frame: 15 KB
• Additional Features: Fanless
  Durable metal casing
  Desktop/wall mounting design
  Physical security lock
• Quality of Service: Port-based/802.1p/DSCP QoS
  8 Priority Queues
  Priority Schedule Mode
  Queue Weight Config
  Bandwidth Control
  Storm Control
• Layer Features: L2 Features:
  Static Link Aggregation
  Loop Prevention / Loopback Detection
  Flow Control
  Mirroring
  Port Statistics
  802.1ab LLDP

  L2 Multicast:
  IGMP Snooping
• VLAN: MTU VLAN
  Port-Based VLAN
  802.1Q Tag VLAN
• Management: "Omada App:
  Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

  Centralized Management:
  Omada Cloud-Based Controller
  Omada Hardware Controller
  Omada Software Controller

  Cloud Access:
  Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

  Zero-Touch Provisioning:
  Requires the use of Omada Cloud-Based Controller"
• .:
  Management Features:
  Web-based GUI
  DHCP Client
  Cable Diagnostics
  Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Unified Configuration
• Environment: Operating Temperature: 0°C ~40°C
  Storage Temperature: -40°C ~70°C
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: ES205G
  Power Adapter
  Installation Guide
  Rubber Feet
• Package Type: Retail
• Package Weight: 0.3800 kg
• Warranty: Limited Lifetime
• #Hide#POE: No
