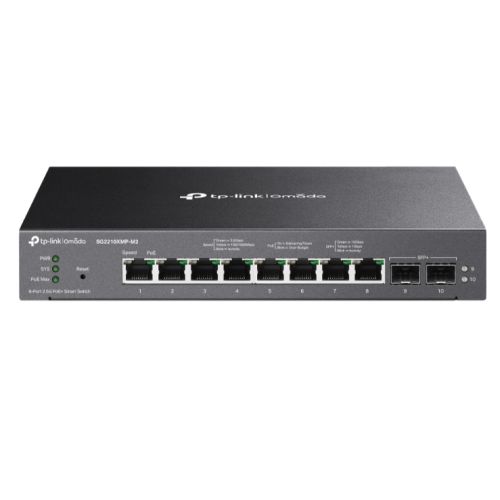

TP-LINK Omada SG2210XMP-M2 Multi-Gigabit PoE+ Smart Switch

The TP-LINK SG2210XMP-M2 delivers multi-gigabit connectivity for modern business networks requiring high-speed connections to WiFi 7/6 access points, IP surveillance cameras, and VoIP systems. This compact managed switch combines eight 2.5 Gbps PoE+ ports with two 10 Gbps SFP+ uplink slots in a fanless, desktop-mountable design.

2.5G PoE+ Performance

Eight IEEE 802.3at/af-compliant PoE+ ports deliver up to 160W total power budget with 30W per port capability. Deploy wireless access points, IP cameras, and IP phones without separate power infrastructure. The 2.5 Gbps port speed ensures bandwidth-intensive devices like WiFi 7 and WiFi 6 access points operate at full capacity without bottlenecks.

High-Speed 10G Uplinks

Two 10 Gbps SFP+ slots provide non-blocking performance for server connections and network backbone links. The 80 Gbps switching capacity and 59.52 Mpps forwarding rate handle demanding traffic loads while supporting jumbo frames up to 9KB for optimized data transfer.

Omada SDN Integration

Integrate seamlessly into TP-LINK's Omada Software-Defined Networking platform for centralized cloud management via web interface or mobile app. Zero-Touch Provisioning simplifies deployment across multiple locations, while abnormal event warnings provide proactive network monitoring. Standalone management remains available through intuitive web GUI or CLI.

Enterprise Security Features

Advanced security includes IP-MAC-Port Binding, Port Security, Storm Control, DHCP Snooping, and integrated DoS attack prevention. Access Control Lists restrict network access based on MAC addresses, IP addresses, TCP/UDP ports, or VLAN IDs. 802.1X authentication with RADIUS/TACACS+ ensures only authorized users access network resources.

Advanced Layer 2/L2+ Features

Static Routing capability segments networks and routes traffic internally for improved efficiency. Comprehensive L2 features include 4K VLAN groups, DHCP Server/Relay, Link Aggregation, STP/RSTP/MSTP, and 802.3x Flow Control. IGMP Snooping intelligently forwards multicast streams only to appropriate subscribers, reducing unnecessary traffic.

Quality of Service

Eight priority queues with 802.1p CoS/DSCP prioritization ensure smooth voice and video transmission even during bandwidth constraints. Bandwidth control and storm control maintain network stability under heavy loads.

Fanless Design

Silent operation through fanless cooling makes the SG2210XMP-M2 suitable for office environments, classrooms, and noise-sensitive locations. The compact metal casing (226 x 131 x 35 mm) supports desktop or wall-mounting installation.

Description

Specification

• Rackmountable: No
• Managed: Smart
• Number of Ports: 8
• Max RJ45 Transfer Rate: 2.5 Gbps
• #Hide#Max SFP Transfer Rate: 10G SFP
• Interface(s): 8 x 100/1000/2500 Mbps RJ45 PoE+ Ports
  2 x 10G SFP+ Slots
• PoE Ports (RJ45): Standard: 802.3at/af compliant
  PoE+ Ports: 8 Ports
  PoE Power Budget: 160 W
• Switching Capacity: 80 Gbps
• Power Supply: 53.5VDC/3.37A Power Adapter
• Dimensions: 226 x 131 x 35 mm
• Mac Address Table: 16 K
• Packet Forwarding Rate: 59.52 Mpps
• Jumbo Frame: 9KB
• Additional Features: Fanless design for quiet operation
  Desktop/Wall-Mounting
  Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
• Quality of Service: 802.1p CoS/DSCP priority
  8 priority queues
  Priority Schedule Mode
  Queue Weight Config
  Bandwidth Control
  Smoother Performance
  Storm Control
• Layer Features: L2 and L2+:
  32 IP Interfaces: Support IPv4/IPv6 Interface
  Static Routing: 32 IPv4/IPv6 Static Routes
  DHCP Server
  DHCP Relay
  DHCP L2 Relay
  Static ARP
  Proxy ARP
  Gratuitous ARP
  Link Aggregation
  Spanning Tree Protocol
  Loopback Detection
  802.3x Flow Control
  Mirroring
  Device Link Detect Protocol (DLDP)
  802.1ab LLDP/ LLDP-MED


• .: "L2 Multicast:
  511 IPv4, IPv6 shared multicast groups
  IGMP Snooping
  Multicast VLAN Registration (MVR)
  Multicast Filtering
  Limited IP Multicast (256 profiles and 16 entries per profile)"
• VLAN: VLAN Group - Max 4K VLAN Groups
  802.1Q Tagged VLAN
  MAC VLAN: 12 Entries
  Protocol VLAN
  GVRP
  Voice VLAN
• Access Control: Support up to 230 entries
  Time-based ACL
  MAC ACL
  IP ACL
  IPv6 ACL
  Combined ACL
  Rule Operation: Permit/Deny
  Policy Action
  ACL Rules Binding
• Security: IP-MAC-Port Binding
  AAA
  802.1X
  IP/IPv6-MAC Binding
  IP Source Guard
  IPv6 Source Guard
  DoS Defend
  DHCP Filter
  Static/Dynamic/Permanent Port Security
  Broadcast/Multicast/Unicast Storm Control
  Port Isolation
  Secure web management through HTTPS with SSLv3/TLS 1.2
  Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  IP/Port/MAC based access control
• Management: "Require Omada Controllers:
  Omada App
  Centralized Management
  Cloud Access
  Zero-Touch Provisioning

  Management Features:
  Web-based GUI
  CLI through telnet
  SNMPv1/v2c/v3
  SNMP Trap/Inform
  RMON (1,2,3,9 groups)
  SDM Template
  DHCP/BOOTP Client
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  EEE
  SNTP
  System Log"
• Environment: Operating Temperature: 0–40°C (32–104°F)
  Storage Temperature: -40–70°C (-40–158°F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: SG2210XHP-M2 Switch
  Power Adapter
  Quick Installation Guide
  Rubber Feet
• Package Type: Retail
• Package Weight: 2.2600 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
