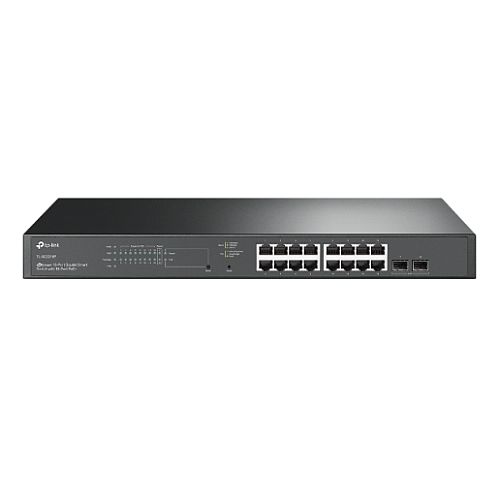

JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+

• 150 W PoE Budget: 16x 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
• Full Gigabit Ports: 16x gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

Description

Specification

• Rackmountable: Yes
• Managed: Smart
• Number of Ports: 18
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• #Hide#Max SFP Transfer Rate: GB SFP
• Interface(s): 16 x 10/100/1000 Mbps RJ45 (Auto Negotiation/Auto MDI/MDIX)
  2 x Gigabit SFP
• PoE Ports (RJ45): PoE+ Ports: 16 Ports
  PoE Power Budget: 150 W
• Standards and Protocols: "IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x"
• Switching Capacity: 36 Gbps
• Power Supply: "100-240V AC, 50/60Hz"
• Mac Address Table: 8K
• Packet Forwarding Rate: 26.78 Mpps
• Jumbo Frame: 9 KB
• Additional Features: Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
• Quality of Service: 802.1p CoS/DSCP priority
  8 priority queues
  Priority Schedule Mode
  Queue Weight Config
  Bandwidth Control
  Smoother Performance
  Storm Control
• Layer Features: L2 and L2+:
  16 IP Interfaces
  Static Routing
  DHCP Server
  DHCP Relay
  DHCP L2 Relay
  Static ARP
  Proxy ARP
  Gratuitous ARP
  Link Aggregation
  Spanning Tree Protocol
  Loopback Detection
  Flow Control
  Mirroring
  Device Link Detect Protocol (DLDP)
  802.1ab LLDP/ LLDP-MED
• VLAN: VLAN Group
  802.1Q tag VLAN
  MAC VLAN: 12 Entries
  Protocol VLAN
  GVRP
  Voice VLAN
• Access Control: Support up to 230 entries
  Time-Range
  Time-based ACL
  MAC ACL
  IP ACL
  IPv6 ACL
  Combined ACL
  Rule Operation
  Policy Action
  ACL Rules Binding
  Actions for flows
• Security: AAA
  802.1X
  IP/IPv6-MAC Binding
  IP Source Guard
  IPv6 Source Guard
  DoS Defend
  Static/Dynamic/Permanent Port Security
  Broadcast/Multicast/Unicast Storm Control
  Port Isolation
  Secure web management through HTTPS with SSLv3/TLS 1.2
  Secure Command Line Interface management with SSHv1/SSHv2
  IP/Port/MAC based access control
• Management: "Require Omada Controllers:
  Omada App
  Centralized Management
  Cloud Access
  Zero-Touch Provisioning

  Management Features:
  Management Features
  Web-based GUI
  Command Line Interface (CLI) through telnet
  SNMPv1/v2c/v3
  SNMP Trap/Inform
  RMON (1,2,3,9 groups)
  SDM Template
  DHCP/BOOTP Client
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  EEE
  SNTP
  System Log"
• Environment: Operating Temperature: 0–50°C (32–122°F)
  Storage Temperature: -40–70°C (-40–158°F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: TL-SG2218P
  Power Cord
  Installation Guide
  Rackmount Kit
  Rubber Feet
• Package Type: Retail
• Package Weight: 3.2000 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
