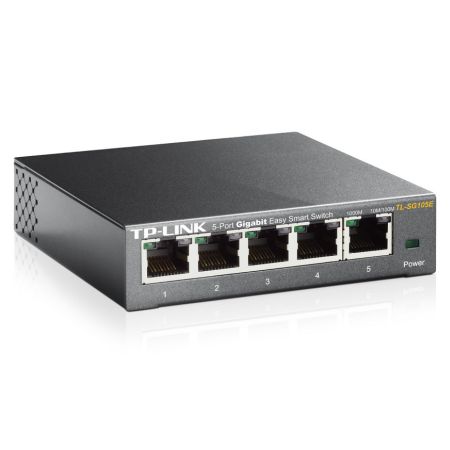

TP-LINK TL-SG105E 5-Port Gigabit Easy Smart Switch

The TL-SG105E is a 5-port Gigabit Easy Smart switch designed for small and medium business networks requiring straightforward network management capabilities. This steel-cased switch bridges the gap between basic unmanaged switches and complex managed switches, offering essential management features without unnecessary complexity.

Network Management Features

Network administrators gain effective traffic monitoring through Port Mirroring, Loop Prevention, and Cable Diagnostics features. The switch supports both port-based and tag-based QoS (Quality of Service) to prioritize latency-sensitive traffic, ensuring voice and video communications remain clear and uninterrupted. VLAN support includes MTU VLAN, port-based VLAN, and 802.1Q-based VLAN functions for enhanced security and network segmentation.

Energy-Efficient Technology

The TL-SG105E incorporates innovative energy-saving technology that reduces power consumption by up to 75%. The switch automatically detects link status on each port and reduces power to idle ports. Additionally, it analyzes Ethernet cable length and adjusts power output accordingly, consuming only the necessary amount of power rather than a fixed amount regardless of cable length.

Performance Specifications

Equipped with five 10/100/1000Mbps RJ45 ports with auto-negotiation and auto MDI/MDI-X crossover functionality, the switch delivers a packet forwarding rate of 7.4Mpps. It supports an 8K MAC address table, 16KB jumbo frames, and store-and-forward transfer method. The switch handles up to 32 VLANs simultaneously from 4K VLAN IDs and includes IGMP Snooping, Link Aggregation, Rate Limit, and Storm Control features.

Easy Setup and Management

The TL-SG105E offers plug-and-play connectivity with simple network setup. All Easy Smart Switches can be centrally managed using the Easy Smart Configuration Utility. Dynamic LED lights provide real-time status display and basic fault diagnosis. The compact 100 x 98 x 25 mm design fits desktop environments while maintaining professional steel construction.

Technical Specifications

• Rackmountable: No
• Managed: Smart
• Number of Ports: 5
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s): 5 x 10/100/1000Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX
• PoE Ports (RJ45): -
• Standards and Protocols: "IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p"
• Power Supply: "100-240VAC, 50/60Hz"
• Dimensions: 100 x 98 x 25 mm
• Transfer Method: Store-And-Forward
• Mac Address Table: 8K
• Packet Forwarding Rate: 7.4Mpps
• Jumbo Frame: 16KB
• Quality of Service: Support Port Based/802.1p Based priority
  Support 4 priority queues
  Rate Limit
  Storm Control
• Layer Features: IGMP Snooping
  Link Aggregation
  Port Mirroring
  Cable Diagnostics
  Loop Prevention
• VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  MTU/Port/Tag VLAN
• Environment: Operating Temperature: 0C~40C (32F~104F)
  Storage Temperature: -40C~70C (-40F~158F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: TL-SG105E
  Power Cord
  Installation Guide
  Resource CD
  Rubber Feet
• Package Type: Retail
• Package Weight: 0.4500 kg
• Warranty: Limited Lifetime
