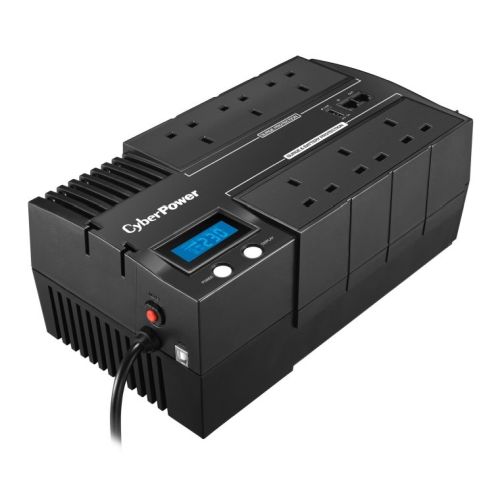

CyberPower BR1000ELCD-UK offers home and office users a reliable battery backup and safeguards office PCs, network communication equipment, and other electronic devices from surges, spikes, brownouts and other power incidents.

Designed with GreenPower UPS Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems.

• Line-interactive UPS Topology
• Simulated Sine Wave Output
• USB Charging Port(s)
• Phone/Fax/Modem/DSL/Network Protection
• Wall Mount Installation
• Energy Saving Technology
• Automatic Voltage Regulation (AVR)
• Surge and Spike Protection
• LCD Status Display

Description

Specification

• Type: External UPS
• UPS Topology: Line-interactive
• Maximum Capacity: 1000VA / 600W
• #Hide#Capacity (VA): 1000 VA
• #Hide#Capacity (Watts): 600 W
• Battery Type: Sealed Lead-acid
• Typical Protection: "Surge Suppression: 150 Joules
  EMI/RFI Filtration
  Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out"
• Inversion: Simulated Sine Wave

• Transfer Time: 4 ms
• Battery Protection: "Automatic Voltage Regulation (AVR): Single Boost, Single Buck
  Overload Protection: Circuit Breaker"
• Input Voltage: Nominal Input Voltage: 230 ± 10% Vac
  Input Voltage Range: 165 ~ 290 Vac
• Output Voltage: 230 ± 10% Vac
• Recharge Time: 8 Hours
• Runtime: at Half Load: 6 minutes
  at Full Load: 1 minutes
  at 60W: 60 minutes
  at 90W: 42 minutes
• Interfaces: "6 x UK Mains Socket
  RJ11/RJ45 (Combo): 1-in, 1-out
  1 x USB-A Charging Port (5 V/ 1 A)"
• Visual Indicators: "LCD Panel:
  Power Status, Battery Status, Load Status, Other Information

  LED Indicators:
  Power On, Line Mode, Battery Mode, Low Battery"
• Audible Indicators: "Alarms:
  Battery Mode, Low Battery, Overload, UPS Fault"
• Environment: "Operating Temperature: 32 ~ 104 °F
  Operating Temperature: 0 ~ 40 °C
  Operating Relative Humidity (Non-condensing): 0 ~ 90 %
  Operating Elevation: 0-9,843 feet (0-3,000 meters)
  Storage Temperature: -4 ~ 122 °F
  Storage Temperature: -20 ~ 50 °C
  Storage Relative Humidity (Non-condensing): 0 ~ 90%
  Storage Elevation: 0-9,843 feet (0-3,000 meters)
  Online Thermal Dissipation: 102 BTU/hr
  Audible Noise at 1.5M from Surface of Unit: 40 dBA"
• Dimensions: (WxHxD) 166 x 118 x 288 mm

• Weight: 8.41 Kg

• Additional Features: See Overview / Video
• Accessories: USB Cable
  Phone Line
  Users Manual
  Product Registration Card
• Package Type: Retail
• Package Weight: 7.0000 kg
• Warranty: 2 Years - direct with CyberPower
