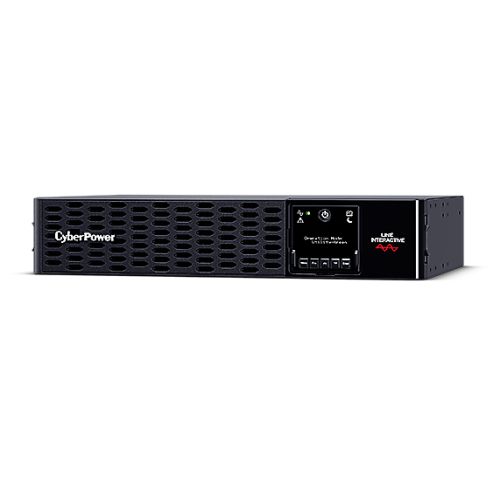

CyberPower PR1000ERT2U with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.

The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.

• Line-interactive UPS Topology
• Active PFC Compatible
• Toolless Battery Replacement
• High Output Power Factor
• Overload Protection
• Quick Charging Technology
• Surge and Spike Protection
• LCD Status Display
• Serial Connectivity Port
• PowerPanel Management Software
• Rack/Tower Convertible Configurations
• Energy Saving Technology
• Pure Sine Wave Output
• Battery Management Technology
• Automatic Voltage Regulation (AVR)
• Critical/Non-critical Load Outlets
• Hot-swappable Batteries
• EMI and RFI Filtration
• USB Connectivity Port
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability (Optional)

Description

Specification

• Type: Rackmountable UPS
• UPS Topology: Line-interactive
• Maximum Capacity: 1000VA / 1000W
• #Hide#Capacity (VA): 1000 VA
• #Hide#Capacity (Watts): 1000 W
• Battery Type: Sealed Lead-acid
• Typical Protection: "Surge Suppression: 2430 Joules
  EMI/RFI Filtration
  Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out"
• Inversion: Pure Sine Wave
• Transfer Time: 4 ms
• Battery Protection: "Automatic Voltage Regulation (AVR): Double Boost, Single Buck
  Overload Protection: Internal current limiting, circuit breaker"
• Input Voltage: Nominal Input Voltage: up to 240 Vac
  Input Voltage Range 159 ~ 288 Vac
• Output Voltage: 220 ± 5% Vac
  230 ± 5% Vac
  240 ± 5% Vac
• Recharge Time: 3 hours
• Runtime: at Half Load: 21 minutes
  at Full Load: 7 minutes
• Interfaces: "10 x IEC C13
  1 x HID Compliant USB Port
  RJ11/RJ45 (Combo): 1-in, 1-out"
• Visual Indicators: "LCD Panel:
  Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

  LCD Setting & Control:
  Mode Setting, Alarm Setting, Input & Output, Battery Setting, Communication, Language

  LED Indicators:
  Power On, Line Mode, Battery Mode, UPS Fault, Night Mode"
• Audible Indicators: "Battery Mode, Low Battery, Overload, Overcharge, Overheat"
• Environment: "Operating Temperature: 32 ~ 104°F
  Operating Temperature: 0 ~ 40 °C
  Operating Relative Humidity (Non-condensing): 0 ~ 95 %
  Operating Elevation: 0-9,843 feet (0-3,000 meters)
  Storage Temperature: 5 ~ 113 °F
  Storage Temperature: -15 ~ 45 °C
  Storage Relative Humidity (Non-condensing): 0 ~ 95%
  Storage Elevation: 0-49,213 feet (0-15,000 meters)
  Online Thermal Dissipation: 47.4 BTU/hr
  Audible Noise at 1.0M from Surface of Unit: 52.5 dBA"
• Dimensions: (WxHxD) 560 x 275 x 530 mm
• Weight: 29 kg
• Additional Features: See Overview / Videos
• Accessories: Rackmount Rail
  Rackmount Ears
  USB Cable
  Serial Cable
  EPO Cable
  Users Manual
• Package Type: Retail
• Package Weight: 28.7000 kg
• Warranty: 2 Years - direct with CyberPower
