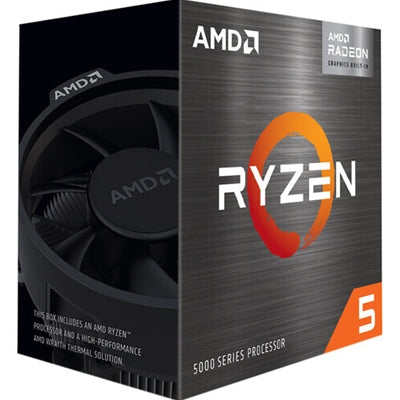

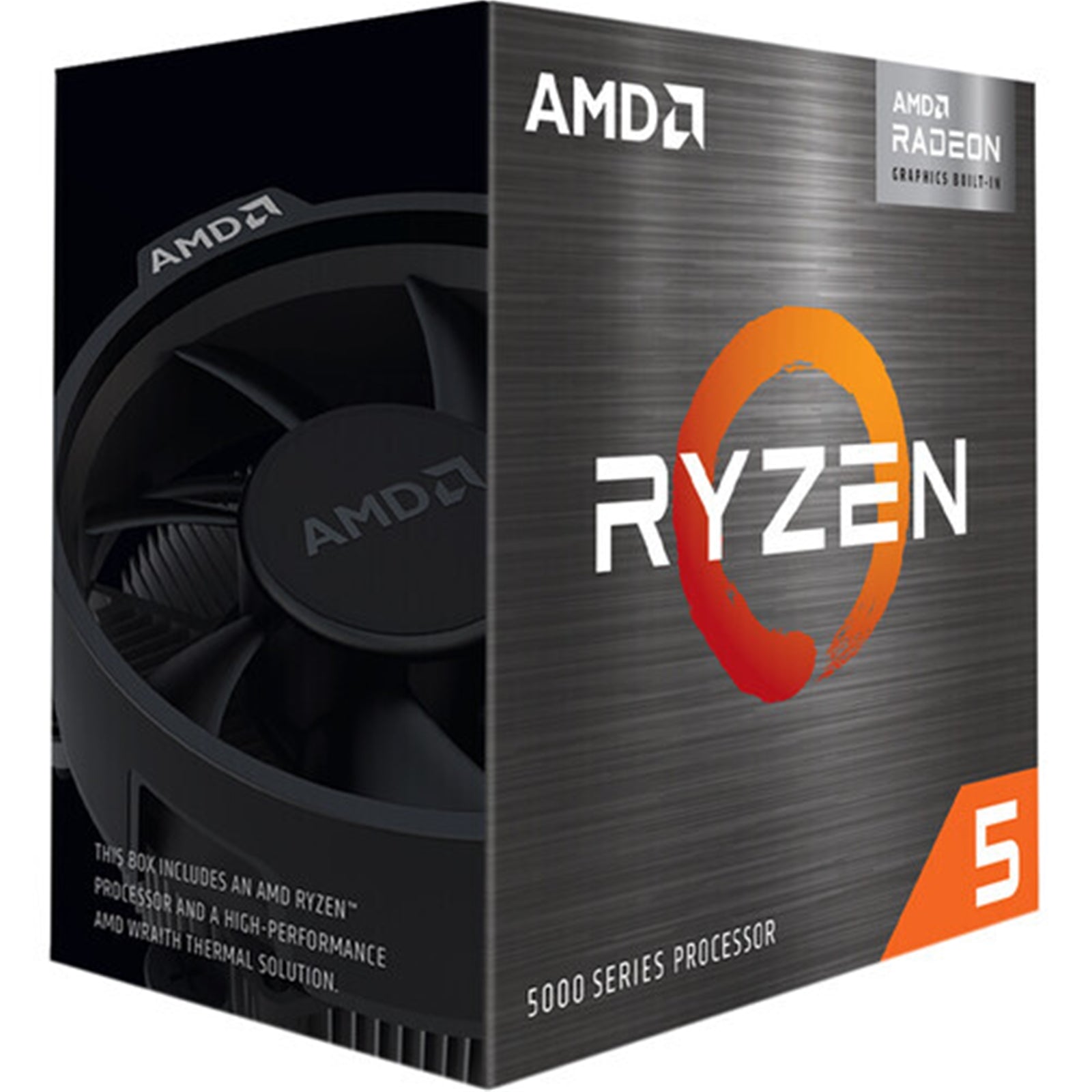

AMD Ryzen 5 5600GT 6-Core AM4 Processor with Integrated Radeon Graphics

The AMD Ryzen 5 5600GT processor delivers reliable performance for mainstream desktop computing with its 6-core, 12-thread configuration. Built on the Zen 3 architecture with TSMC 7nm FinFET technology, this AM4 socket processor operates at a 3.6GHz base clock and boosts up to 4.6GHz when needed. The 19MB total cache (384KB L1, 3MB L2, 16MB L3) ensures smooth data access for everyday computing tasks.

Integrated Radeon Graphics

This processor includes integrated Radeon Graphics with 7 compute cores running at 1900MHz, eliminating the need for a discrete graphics card in budget builds. Handle productivity applications, light gaming, media streaming, and content viewing without additional GPU investment. The integrated graphics support modern display outputs and deliver sufficient performance for typical desktop workloads.

Complete Package with Wraith Stealth Cooler

The boxed processor includes the AMD Wraith Stealth cooler, providing adequate thermal management for the 65W TDP design. The configurable TDP range of 45-65W offers flexibility for different system configurations. Maximum operating temperature reaches 95°C, with the included cooler maintaining safe operating conditions under standard workloads.

Memory and Connectivity

Support for dual-channel DDR4 memory up to 3200MT/s with maximum capacity of 128GB enables sufficient bandwidth for multitasking. PCIe 3.0 connectivity provides compatibility with a wide range of expansion cards and NVMe storage devices. The processor supports RAID configurations (RAID0, RAID1, RAID10) for flexible storage setups.

Unlocked Multiplier for Enthusiasts

The unlocked multiplier allows overclocking potential for users seeking additional performance. Compatible with AM4 motherboards using appropriate chipsets, this processor works with existing DDR4 infrastructure, making it a practical upgrade path for current AM4 platform users.

Specifications

General Specifications

Platform:
Boxed Processor

Market Segment:
Mainstream Desktop

Product Family:
AMD Ryzen Processors

Product Line:
AMD Ryzen 5 5000 G-Series Desktop Processors with Radeon Graphics

Consumer Use:
Yes

Commercial Use:
No

Regional Availability:
Global, China, NA, EMEA, APJ, LATAM

Former Codename:
"Cezanne"

Architecture:
"Zen 3"

# of CPU Cores:
6

Multithreading (SMT):
Yes

# of Threads:
12

Max. Boost Clock:
Up to 4.6GHz

Base Clock:
3.6GHz

L1 Cache:
384KB

L2 Cache:
3MB

L3 Cache:
16MB

Default TDP:
65W

AMD Configurable TDP (cTDP):
45-65W

Processor Technology for CPU Cores:
TSMC 7nm FinFET

CPU Compute Die (CCD) Size:
180mm²

Package Die Count:
1

Unlocked for Overclocking:
Yes

CPU Socket:
AM4

Thermal Solution (PIB):
AMD Wraith Stealth

Thermal Solution (MPK):
AMD Wraith Stealth

Max. Operating Temperature (Tjmax):
95°C

Launch Date:
1/8/2024

*OS Support:
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.

Connectivity

PCI Express Version:
PCIe 3.0

NVMe Support:
Boot, RAID0, RAID1, RAID10

System Memory Type:
DDR4

Memory Channels:
2

Max. Memory:
128GB

System Memory Subtype:
UDIMM

System Memory Specification:
Up to 3200MT/s

Max Memory Speed:
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667

Graphics Capabilities

Integrated Graphics:
Yes

Graphics Model:
Radeon Graphics

Graphics Core Count:
7

Graphics Frequency:
1900 MHz

• Socket: AM4
• On-Chip Graphics: Yes
• Speed: 3.6GHz
• Core Quantity: 6
• Prefix: Ryzen 5
