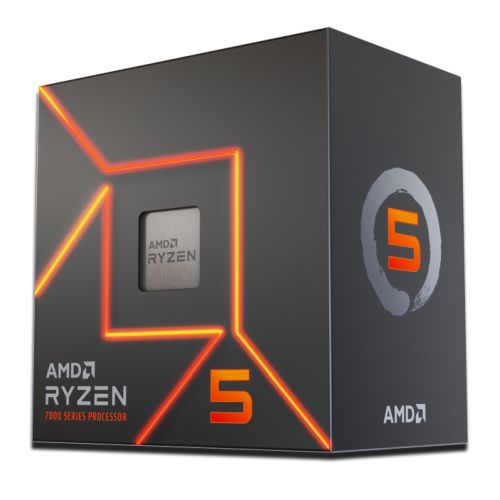

AMD Ryzen 5 7600 Desktop Processor

The AMD Ryzen 5 7600 delivers high-performance computing for gaming and productivity workloads. Built on advanced 5nm manufacturing technology, this 6-core, 12-thread processor operates at 3.8GHz base frequency with boost speeds reaching up to 5.1GHz. The AM5 socket platform provides compatibility with the latest motherboard technologies.

Core Performance Specifications

This processor features 38MB of total cache memory (384KB L1, 6MB L2, and 32MB L3) for rapid data access and improved application responsiveness. The 65W TDP design ensures efficient power consumption while maintaining performance under demanding workloads. Overclocking capabilities provide additional headroom for users seeking maximum performance.

Next-Generation Platform Support

The Ryzen 5 7600 supports DDR5 memory with speeds up to DDR5-5200, delivering increased bandwidth for memory-intensive applications. AMD EXPO technology enables one-touch memory overclocking for simplified performance tuning. PCIe 5.0 support provides up to 28 total lanes, ensuring compatibility with the latest graphics cards and high-speed storage devices.

Integrated Graphics Solution

Built-in AMD Radeon Graphics with 2 compute units running at 2200MHz provides display output capability without requiring a discrete graphics card. This integrated solution handles basic display tasks, video playback, and light computing workloads efficiently.

Included Cooling Solution

The retail package includes the AMD Wraith Stealth cooler, a low-profile thermal solution designed for 65W processors. This cooler provides adequate thermal management for stock operation while maintaining quiet acoustics during standard workloads.

Platform Compatibility

Compatible with AMD X670E, X670, B650E, and B650 chipset motherboards, the processor supports dual-channel DDR5 memory configurations. Motherboard-dependent PCIe lanes provide additional expansion options ranging from 8 to 12 Gen4 lanes depending on chipset selection.

Description

Specification

• Socket: AM5
• Type: AMD Ryzen 5
• Clock Speed: 3.8GHz
• Turbo Speed: Up to 5.1GHz
• #Hide#Generation: Ryzen 7th gen
• Cores: 6 Core
• Core Size: "CPU Cores: TSMC 5nm FinFET
  I/O Die; TSMC 6nm FinFET"
• Threads: 12
• Cache: L1 Cache: 384KB
  L2 Cache: 6MB
  L3 Cache: 32MB
• TDP: Default TDP: 65W
• Graphics: Yes
• Graphics Details: AMD Radeon Graphics
  Core Count: 2
  Frequency: 2200 MHz
  GPU Base: 400 MHz
• Memory: DDR5
  Memory Channels: 2
  System Memory Subtype: UDIMM

  Max Memory Speed:
  2x1R: DDR5-5200
  2x2R: DDR5-5200
  4x1R: DDR5-3600
  4x2R: DDR5-3600
• Max PCI Express Lanes: 28/24 (Total/Usable)

  Additional Usable PCIe Lanes from Motherboard:
  AMD X670E: 12x Gen4
  AMD X670: 12x Gen4
  AMD B650E: 8x Gen4
  AMD B650: 8x Gen4
• Cooler: Yes
• Special Features: Wraith Stealth Cooler
  AMD EXPO Technology
  AMD Ryzen Technologies
• Package Type: Retail
• Package Weight: 0.4500 kg
• Warranty: 3 Years
